D-Link DGS-108 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T content_copy

D-Link's DGS-105 and DGS-108 Gigabit Ethernet switches provide a cost-effective way for small and medium sized businesses to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. These switches come with 5 or 8 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Their fanless design and solid metal housing makes them completely silent so they are ideal for offices, libraries or meeting rooms, and for industrial and hazardous environments like factories and warehouses.The DGS-105 and DGS-108 are designed with durability and performance in mind. Their sturdy metal housing will protect them against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, these switches come with a wall mounting kit and a slot for a Kensington security lock to protect them from theft.Despite being unmanaged, Plug and Play switches, the DGS-105 and DGS-108 are able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.The DGS-105 and DGS-108 are part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. These switches implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet technology in the DGS-105/108 can detect the length of the network cables connected to their ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Certificates
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Data transmission
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	16 Gbit/s
MAC address table	4000 entries
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.192 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
LED indicators	Link, Power
Rack mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Auto-sensing
MAC address auto-learning supported
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Performance
Mean time between failures (MTBF)	1467882 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

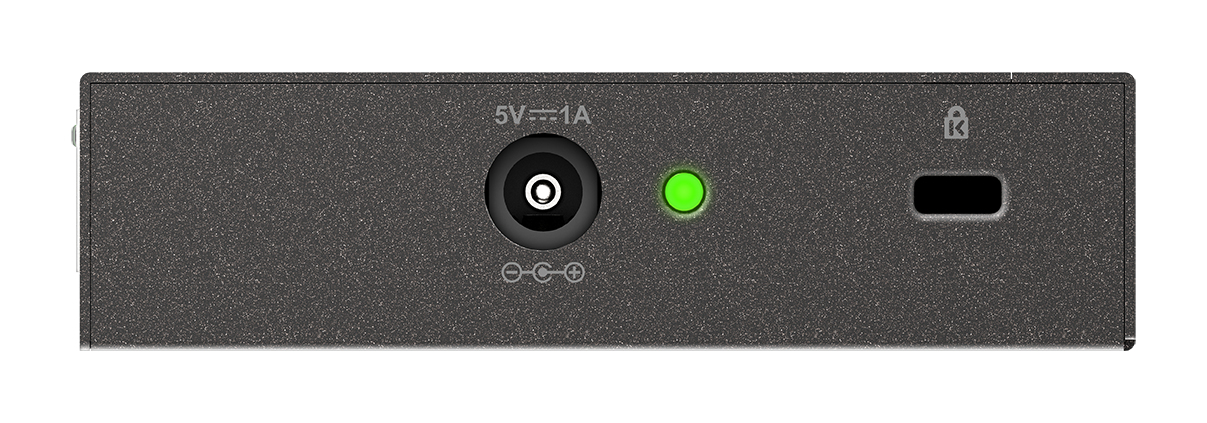

Power connector	DC-in jack
Power
Power source	DC
Input current	1 A
Input voltage	5 V
Power consumption (typical)	2.8 W
Security
IGMP snooping
MAC address filtering
Technical details
Shipping (inner) case height	44.3 cm
Shipping (inner) case width	26 cm
Shipping (inner) case length	37 cm
Shipping (inner) case net weight	7.1 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	398.9 kg
Master (outer) cases per pallet (air)	48 pc(s)
Products per pallet (air)	480 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	196.7 cm
Pallet gross weight (sea)	398.9 kg
Master (outer) cases per pallet (sea)	48 pc(s)
Products per pallet (sea)	480 pc(s)
Pallet height (sea)	196.7 cm
Shipping (inner) case gross weight	7.79 kg
Weight & dimensions
Width	138.7 mm
Depth	85 mm
Height	22.4 mm
Weight	270 g

---
