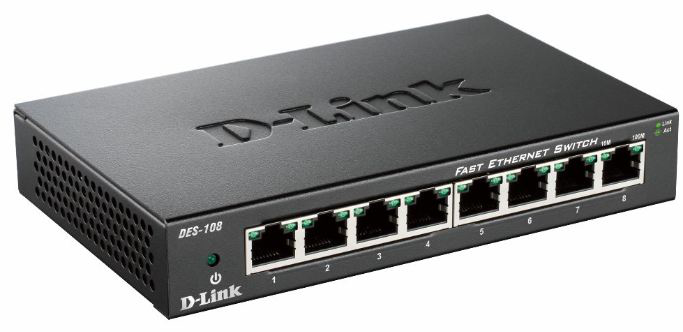

D-Link DES-108 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100Base-TX - 8 x Network

D-Link's DES-105 and DES-108 Fast Ethernet switches provide a cost-effective way for small to medium sized businesses to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. These switches come with 5 or 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Their fanless design and solid metal housing makes them completely silent so they are ideal for offices, libraries or meeting rooms, and for industrial and hazardous environments like factories and warehouses.The DES-105 and DES-108 are designed with durability and performance in mind. Their sturdy metal housing will protect them against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, these switches come with a wall mounting kit and a slot for a Kensington security lock to protect them from theft.Despite being unmanaged, Plug and Play switches, the DES-105 and DES-108 are able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.The DES-105 and DES108 are part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. These switches implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Design
Housing material	Metal
LED indicators	Link,Power
Colour of product	Black
Rack mounting	No
Performance
Mean time between failures (MTBF)	511323 h
Packet buffer memory	0.768 MB
Ports & interfaces
DC-in jack	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Copper ethernet cabling technology	100BASE-TX,10BASE-T
Power
Input voltage	5 V
Input current	1 A
Power consumption (typical)	4.5 W
Other features
Data transfer rate	200 Mbit/s
Dimensions (WxDxH)	162 x 102 x 28 mm
Networking
Auto MDI/MDI-X	Yes
Full duplex	Yes
Flow control support	Yes
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Data transmission
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
MAC address table	1000 entries
Switching capacity	1.6 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Management features
Quality of Service (QoS) support	Yes
Security
MAC address filtering	Yes

---
