Chauvin Arnoux P01102195 HV test guns with 15 m cable (2 pieces) content_copy

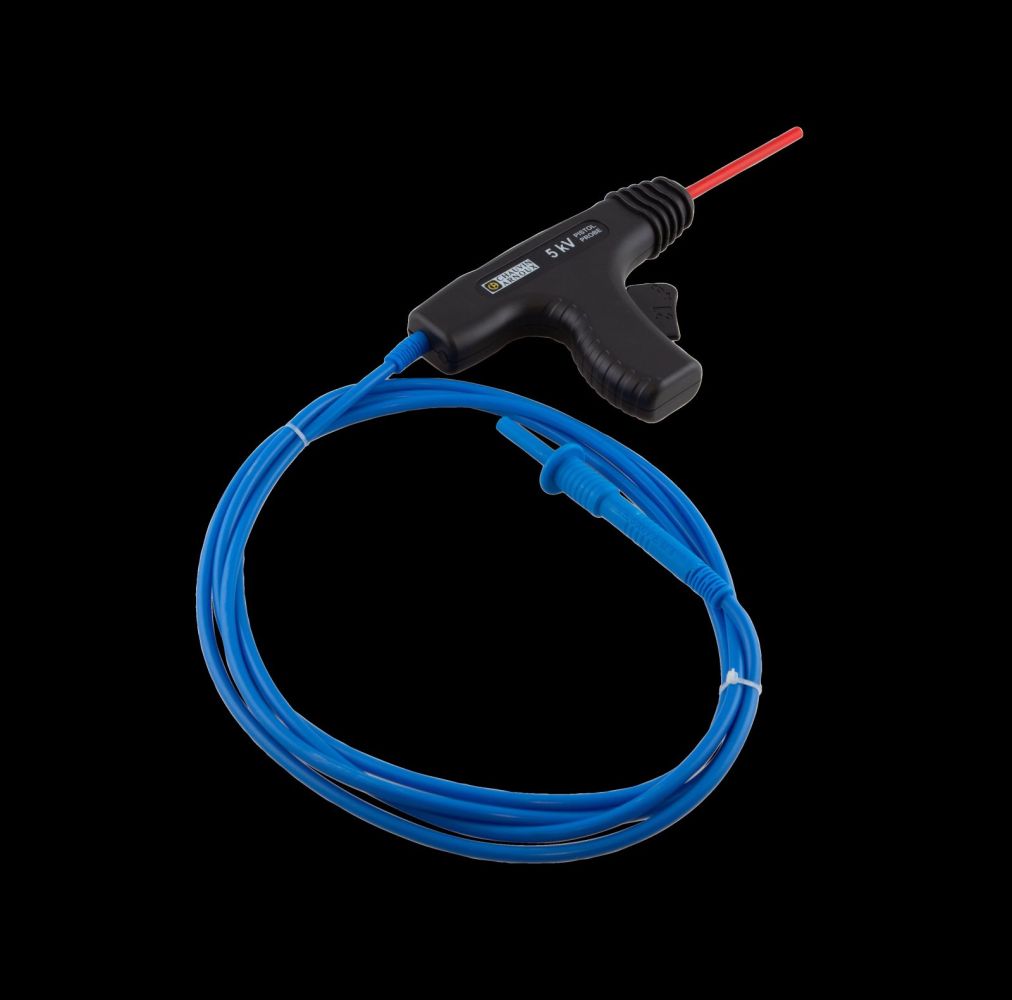

The HT test probe pistol-shaped 15m cable set of 2 from Chauvin Arnoux consists of two high-voltage pistols, each equipped with a 15 m long cable. These test pistols are specifically designed for use with the machine and control panel controllers CA 6161, CA 6163. They are used for safe and precise testing of high-voltage installations up to 5 kV. The pistol shape enables ergonomic handling and precise aiming of the high-voltage tip, allowing efficient testing even in tight or hard-to-reach areas.

High-voltage testing is the primary application area for these test probes. They are used to check the electrical insulation and function of high-voltage lines, switches, fuses, and other components in industrial installations, machines, and control panels. The testing is performed contactlessly, with the high-voltage tip aiming at the test point and the voltage being transmitted via the cable to the controller. The 15 m cable connection allows the operator to maintain a safe distance from the test object, which is particularly advantageous when working in hazardous areas.

Functions and equipment in detail include the two identical high-voltage pistols with integrated cables. The pistols are designed for an operating voltage of 5 kV, making them suitable for use in medium-voltage installations. The cable connection is robust and flexible, ensuring stable transmission of high-voltage signals even under movement and bending. The pistol shape provides a secure grip and enables precise alignment of the test probe. The connection to the controller is made via the cable, which is directly connected to the corresponding port on the CA 6161 or CA 6163.

Technology explained simply refers to the operation of the high-voltage pistol: During testing, the high-voltage tip of the pistol is directed at the test point. The pistol generates a controlled high voltage, which is transmitted via the 15 m cable to the controller. The controller analyzes the signal and displays the results. The testing is contactless, minimizing the risk of direct electric shock. The cable connection ensures that the operator can remain outside the hazardous area, increasing workplace safety.

Compatibility and accessories are limited to the specified machine and control panel controllers CA 6161 and CA 6163. The test probes are designed exclusively for these devices and cannot be used with other controllers. Use with other devices is not intended and not supported.

Mounting and installation is achieved by simply connecting the cable to the corresponding port on the controller. The pistols themselves require no mounting or additional installation. The connection is ready for use as soon as the cable is connected to the controller. Operation is performed using the controls on the pistol and the display on the controller.

Advantages in operation include safe and efficient testing of high-voltage installations. The 15 m cable connection allows the operator to maintain a safe distance from the test object, increasing workplace safety. The pistol shape provides ergonomic handling and precise alignment of the test probe. Compatibility with the CA 6161 and CA 6163 controllers ensures reliable and precise measurement. The test probes are designed for industrial environments and offer a robust construction for daily use.

The HT test probe pistol-shaped 15m cable set of 2 is thus a specific tool for high-voltage testing in industrial installations, developed for use with the CA 6161 and CA 6163 controllers. The two pistols with 15 m cables enable safe, precise, and efficient testing of high-voltage installations up to 5 kV.
