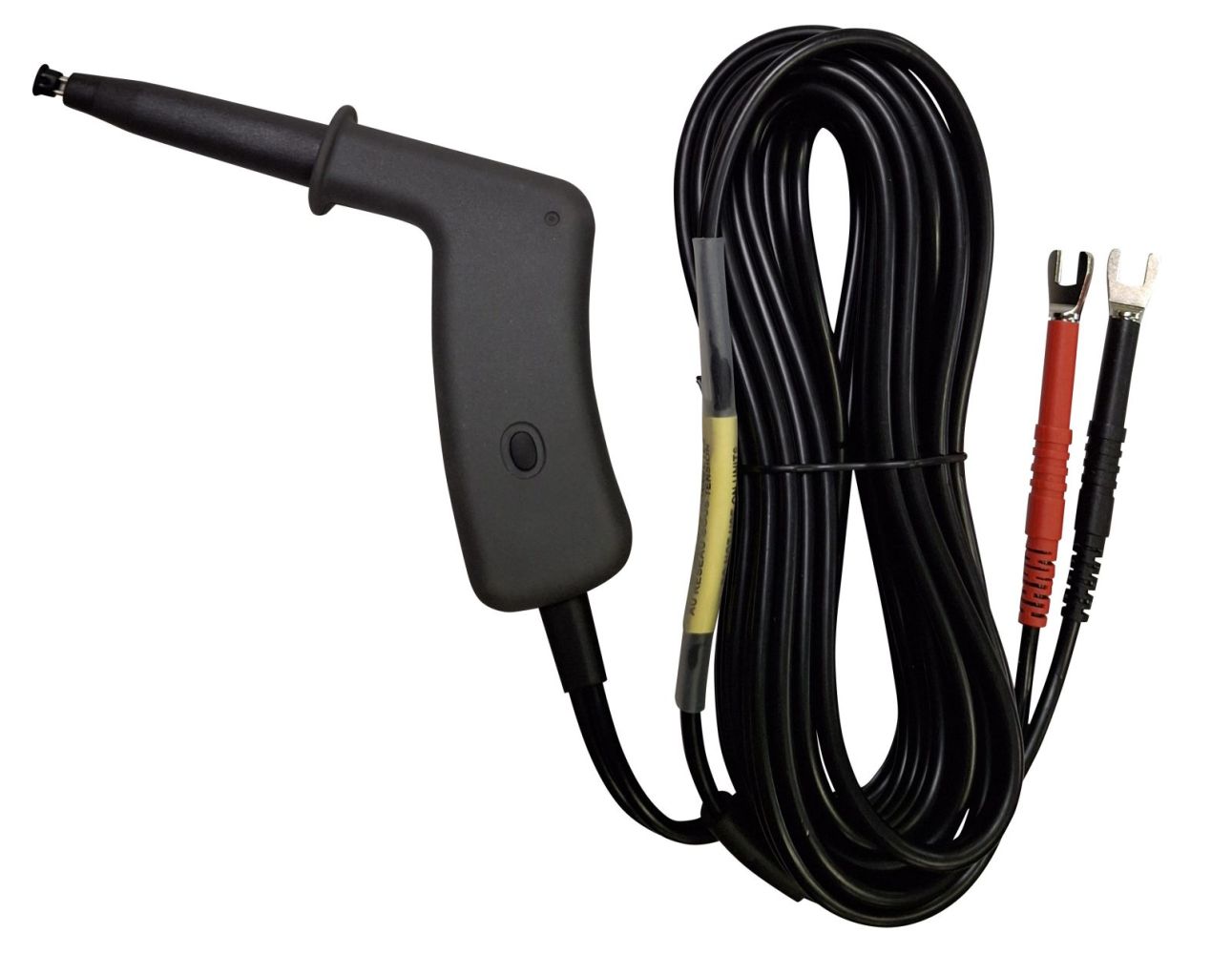

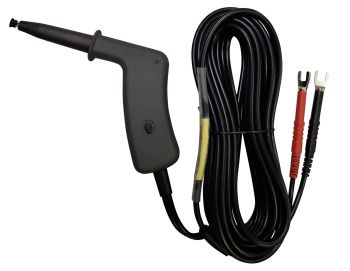

Chauvin Arnoux P01102200 Kelvin-Pistolenprüfspitze 25 A with 6 m cable (1 piece) content_copy

The CA 6163 from Chauvin Arnoux is a professional installation tester for electrical safety testing of machines, enclosures and electrical devices. It is used for conformity testing in the context of final inspection, recurring tests as well as during maintenance and repair work. The device is designed for use in industrial electrical engineering, by electricians, maintenance companies, customer service departments and testing facilities. It enables comprehensive testing in accordance with applicable standards and regulations, particularly in the field of electrical safety.

Applications

The CA 6163 is used for testing and certification of electrical equipment, particularly for final inspection of devices that must comply with CE requirements. It is suitable for testing low-voltage enclosures, machine parks, industrial plants as well as for repairs and maintenance work. Technical training centres use the device for demonstration and carrying out tests in accordance with the requirements of standards IEC/EN 60204-1, IEC/EN 61439-1 and others. The tests include electrical safety, insulation testing, continuity testing, RCD (residual current device) testing and measurement of earth leakage currents.

Functions and Equipment in Detail

The device features a touch colour display with a resolution of 800 x 480 pixels and a screen size of 5 inches. The user interface is multilingual and supports help screens that guide the user through text, symbols and images. Four express command buttons allow quick access to functions such as printing test results on a label printer, accessing help, returning to the main screen or the previous menu. Tests can be controlled via remote control, START/STOP pedals, door open signal, HT pistol trigger and warning lamps. The integrated software enables storage of up to 100,000 tests and data transfer via WLAN or USB-A connection to a PC. Embedded software updates are performed via a USB stick.

Technology Explained Simply

The CA 6163 offers a wide range of measurement functions. Continuity testing is performed in 2- or 4-wire measurement with test currents of 0.1 A, 0.2 A, 10 A and 25 A. Insulation testing can be carried out with test voltages of 100 V, 250 V, 500 V and 1,000 V, with a maximum measurement up to 50 GΩ. Loop impedance (Zs) measurement has a range up to 2,000 Ω, with a display range for short-circuit current Ik up to 20 kA. Direct earth leakage current measurement (I-PE-direct) is performed with a range of 30 mA and an accuracy of ±2 % L. Differential earth leakage current measurement (I-differential) is possible with a clamp up to 40 A. Substitution earth leakage current measurement (I-Substitution) is carried out with 50 mA and ±2 % L accuracy. Contact leakage current measurement is performed with 30 mA and ±2 % L accuracy. Power and energy parameters such as voltage, current, power, apparent power, frequency, power factor and THD (Total Harmonic Distortion) can be measured in single-phase and three-phase networks.

Compatibility and Accessories

The device is compatible with various accessories that extend the testing capabilities. These include Kelvin crocodile clips 25 A with 2.5 m cable, a set of three test probes (red, green, blue), a set of three crocodile clips (red, green, blue), a USB-A/USB-B cable, a connection cable with three separate safety test leads, a power cable, HV test pistols with 15 m and 3 m cable, a CEE adapter 16A, crocodile clips CAT IV-1000 V 15 A red+black, test probes with 4 mm socket CAT IV and CAT III 1000 V PVC red and black, and a transport bag. The HV test pistols with 6 m cable are specifically designed for use with CA 6161, CA 6163, CA 6240, CA 6250 and CA 6255. The integrated interfaces enable connection to a barcode scanner, RFID scanner, label printer and a USB stick.

Mounting and Installation

The CA 6163 is delivered in a yellow construction case. Operation is via the touchscreen, which can also be operated with gloves. Tests are controlled via the integrated interfaces, with remote control possible via START/STOP pedals, door open signal, HT pistol trigger and warning lamps. Communication with a PC is via WLAN or USB-A connection. Power supply is via 230 VAC ±10 %. Operating temperature is between 0 °C and +45 °C, storage temperature between -30 °C and +60 °C. The device is equipped with a protection rating of IP 64 when closed and IP 64 when open, as well as a mechanical protection rating of IK 08.

Advantages in Operation

The CA 6163 offers high measurement accuracy and reliability for electrical safety testing. The integrated memory for up to 100,000 tests enables detailed documentation and analysis. WLAN and USB communication facilitate data transfer and reporting. Automatic discharge of the test object after testing increases operator safety. The various interfaces and extensive accessories enable flexible and efficient use in different application scenarios. Compliance with standards IEC 61010-1, IEC 61010-2-030, IEC 61010-2-034 and IEC 61010-2-032 ensures the electrical safety of the device. Tests are carried out in accordance with standards IEC 61557-1 to -16 (partially), ensuring compliance with applicable regulations.

Eigenschaften
AC / AC ramp	40 - 5 350 V
Resolution / accuracy	10 V / ±1 % L
Maximum current	200 mA
Measurement of I range / accuracy	100 mA / 200 mA ±2 % L
Test voltage	100 V / 250 V / 500 V / 1 000 V
Inductance range / resolution / accuracy	15 mH / ±10 % L
Impulse test	x 0,5; x 1; x 2; x 4; x 5; x 10 (DC) IΔ;n
Isolation current resolution / accuracy	0,1 mA; -0% +(7% L + 2 mA)
Voltage and frequency of installation	190,0 - 440,0 V; 45-55 Hz
Measurement range / accuracy	40 A / ±2,5 % L
Dimensions / weight	407 x 341 x 205 mm; 16 kg

---
