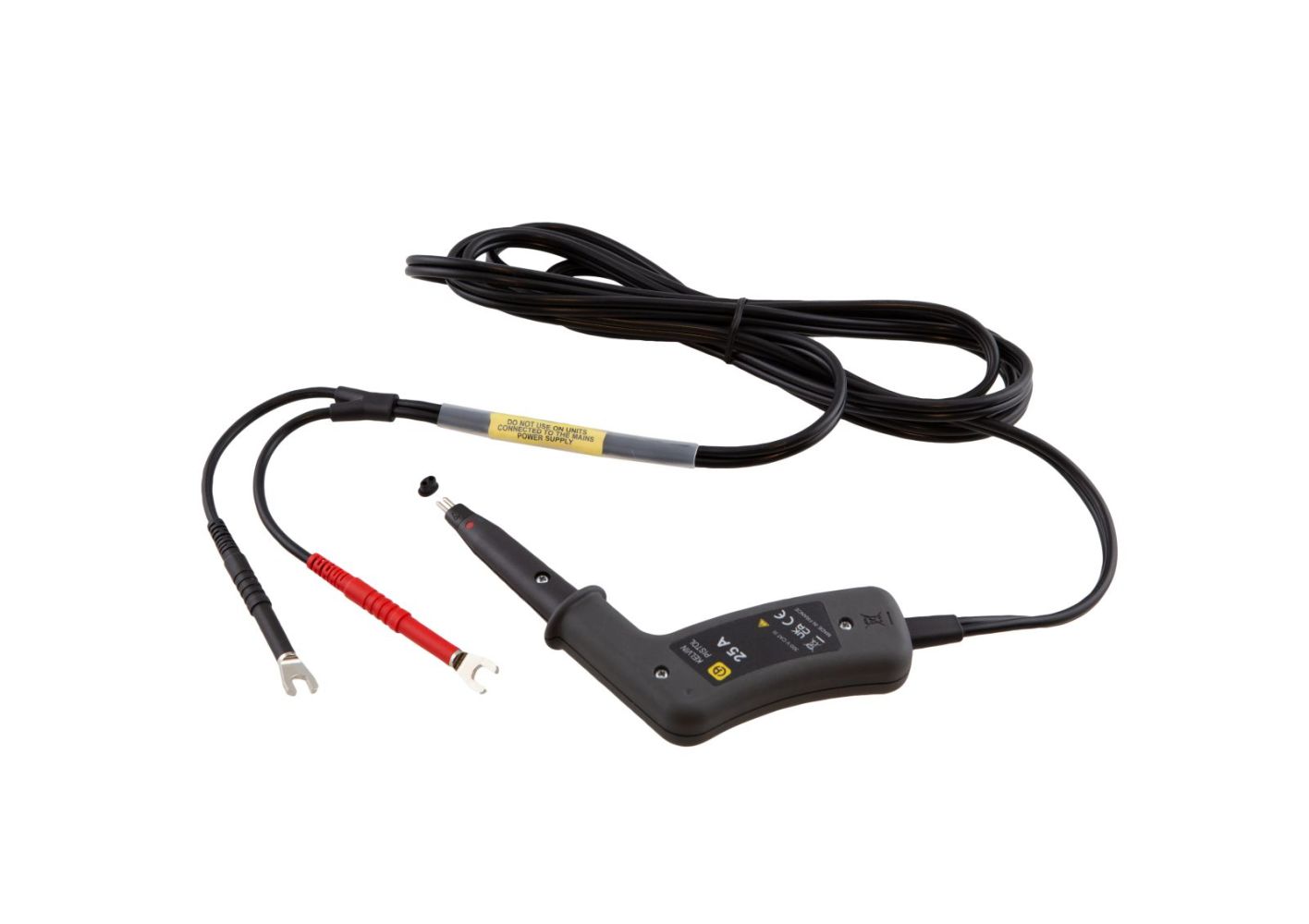

Chauvin Arnoux P01102199 Kelvin-Pistolenprüfspitze 25 A with 3 m cable (1 piece) content_copy

The CA 6163 from Chauvin Arnoux is a professional installation tester for electrical safety testing of devices, machines and enclosures. It is used for conformity testing in the context of final inspection, recurring tests as well as maintenance and repair work. The device is designed for use in industrial electrical engineering, by electricians, maintenance companies, customer service firms and testing facilities. It enables the performance of various electrical tests in accordance with applicable standards and norms.

Applications

The CA 6163 is particularly used in the manufacturing of electrical devices and equipment to check CE conformity. It is suitable for testing low-voltage enclosures, machine parks and installations in industrial environments. Technical training centers also use the device for training skilled personnel. The tests include final inspection, maintenance work and certification of electrical safety.

Functions and Equipment in Detail

The device offers comprehensive functionality, including continuity testing with 2- or 4-wire measurement, insulation testing up to 50 GΩ, RCD testing (FI protection switch) for types A, AC, B, B+, F and EV, as well as measurement of loop and line impedance. It measures direct and differential leakage currents, substitute leakage currents and touch leakage currents, with the latter being measurable both unweighted and weighted. The testing also includes phase sequence determination, power measurement in single-phase and three-phase networks, and discharge time. Test voltages are 100 V, 250 V, 500 V and 1 000 V, with maximum insulation measurement reaching 50 GΩ. The UF measurement is performed at values of 24.9 V and 70.0 V.

Technology Explained Simply

The CA 6163 features a touch colour display with a resolution of 800 x 480 pixels and a screen size of 5 inches. Operation is possible even with gloves, facilitating field work. The multilingual user interface includes help screens with text, symbols and images to guide the user through testing procedures. The maximum measurement for continuity testing is 25 A, with available test currents of 0.1 A, 0.2 A and 10 A (voltage drop). Measurement accuracy is ±2 % of the reading (L) for many functions, while insulation measurement has an accuracy of ±10 % L. The maximum test voltage is 5 350 V (AC/AC ramp), and the maximum current is 200 mA.

Compatibility and Accessories

The device is equipped with various interfaces, including USB-B, two USB-A ports, WLAN, and connections for barcode scanners, RFID scanners, label printers, START/STOP pedals, door open signal, HT pistol trigger and warning lamps. It is compatible with accessories such as Kelvin crocodile clips 25 A with 3 m cable, test probes, crocodile clips, HV test pistols with 3 m and 15 m cable, CEE adapter 16A, power cable, connection leads with safety test leads, and a transport bag. Communication occurs via WLAN or USB, with data being analysed and presented in reports using PC software.

Mounting and Installation

The CA 6163 is delivered in a yellow construction case and is designed for use in industrial environments. Installation is performed via the integrated power connection with switch and indicator light. Remote control is possible using a START/STOP pedal or an HV pistol trigger. Warning and signal lamps are powered by the device. The maximum operating temperature is +45 °C, with storage temperature ranging from -30 °C to +60 °C. The device is equipped with protection rating IP 64 when closed and IP 64 when open, as well as IK 08.

Advantages in Operation

The device can store up to 100,000 tests and enables automatic issuance of Pass/Fail stickers via the integrated label printer. Software updates can be conveniently performed using a USB stick. Test sequences can run automatically or be customised by the user. The maximum test duration is 40 minutes, varying depending on the test type. Safety features include automatic discharge of the test object after testing, optical indication of high voltage, and two-hand operation. Electrical safety complies with standards IEC 61010-1, IEC 61010-2-030, IEC 61010-2-034 and IEC 61010-2-032. The device category is 300 V CAT II, 300 V CAT III and 600 V CAT III. Conformity with standards includes IEC 61557-1 to -16 (partially). Power supply is via 230 VAC ±10 %. Batteries are not included in the delivery scope.

Eigenschaften
AC / AC ramp	40 - 5 350 V
Resolution / accuracy	10 V / ±1 % L
Maximum current	200 mA
Measurement of I range / accuracy	100 mA / 200 mA ±2 % L
Test voltage	100 V / 250 V / 500 V / 1 000 V
Inductance range / resolution / accuracy	15 mH / ±10 % L
Impulse test	x 0,5; x 1; x 2; x 4; x 5; x 10 (DC) IΔ;n
Isolation current resolution / accuracy	0,1 mA; -0% +(7% L + 2 mA)
Voltage and frequency of installation	190,0 - 440,0 V; 45-55 Hz
Measurement range / accuracy	40 A / ±2,5 % L
Dimensions / weight	407 x 341 x 205 mm; 16 kg

---
