Axis 03280-001 Network camera box • M1075-L MK II • 2MP • AI content_copy

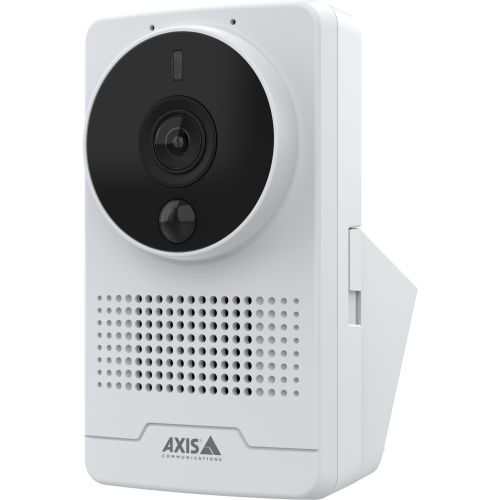

The AXIS M1075-L Mk II is a network camera in box design, designed for professional surveillance systems in indoor and outdoor environments. The device features an integrated AI platform with Deep Learning Processing Unit, enabling analyses to be performed directly on the device (edge computing). The camera offers a resolution of 2 megapixels and supports video quality of 1080p, ensuring clear and detailed recordings. An IR-corrected lens ensures uniform image quality under day and night conditions, supported by IR illumination that enables visibility even in darkness. The camera is designed for 24/7 operation and is suitable for applications requiring continuous video surveillance.

Applications

The AXIS M1075-L Mk II is suitable for security applications in buildings, industrial facilities, retail, logistics, and other environments where intelligent video surveillance with integrated analysis functions is required. The integrated motion detection via a passive infrared sensor (PIR) enables precise detection of movements, even in complete darkness. This is particularly useful for applications requiring early alarm triggering in case of unauthorized access or unusual activities.

Functions and Equipment in Detail

The camera features two-way audio transmission, enabling communication between the camera and a monitoring center or user. This is useful, for example, for interacting with people in the monitored area, such as in retail stores or for securing entrances. The integrated AXIS Audio Analytics detects critical sounds such as screams or coughing, which can be important in medical or care facilities. The AXIS Object Analytics enables detection, tracking, and counting of people, which is helpful for monitoring crowd flows or securing areas.

Technology Explained Simply

The camera processes data directly on the device, enabled by the Deep Learning Processing Unit. This reduces latency and decreases bandwidth usage, as not all raw data needs to be transmitted to a central server. The hardware-based cybersecurity platform AXIS Edge Vault provides secure storage and processing of keys and is certified to FIPS 140-3 Level 3, representing a high standard for cryptographic security. A control LED indicates whether video streaming or recording is active, which is helpful for checking the operational status.

Compatibility and Accessories

The AXIS M1075-L Mk II can be combined with various accessories to optimize installation and operation. These include mounting accessories such as the Stand TM1902 (4-pack), the Camera Holder T91A05, the Mounting Kit T91A10, the Stand T91B21, and the Stand T91A11. For power supply via the network cable (PoE), various midspan modules are available, including the T8120 (15 W, 1-port), the TU8006 (60 W), the TU8002-E (90 W, outdoor), and the T8154 (60 W, SFP). Network switches such as the T8516 (16-port, managed PoE+) or the T8524 (24-port, managed PoE+), as well as the D8208-R (8-port, industrial, PoE++), are also compatible. A PoE extender (T8129) and a PoE-over-Coax adapter kit (T8640) expand installation options. Spare parts such as Lens Cloth (10-pack and 50-pack) are for optical maintenance.

Mounting and Installation

Installation is carried out using the provided mounting accessories, enabling flexible attachment to walls, ceilings, or other surfaces. The camera is connected via a network cable, with power supplied via PoE. The exact mounting method depends on the specific environment and requirements. The use of PoE midspan modules or switches is required if power is not supplied directly from the switch.

Operational Advantages

The camera offers high operational reliability through the integrated cybersecurity platform and decentralized data processing. The AI-based functions enable automated event detection, reducing the need for constant manual monitoring. The two-way audio function allows direct interaction, which is beneficial in many security applications. The integrated data protection functions support compliance with data protection regulations, especially when processing audio and video content.

The camera is designed for use in professional security systems and offers a combination of high image quality, intelligent analysis, and robust security functions.

General
Resolution	2 Megapixel
Video quality	1080p
Lens type	IR-corrected lens
Motion detection	Passive infrared sensor (PIR)
Audio function	Two-way audio transmission
Audio analysis	AXIS Audio Analytics
Object analysis	AXIS Object Analytics
AI platform	Deep Learning Processing Unit
Cybersecurity	AXIS Edge Vault
Certification	FIPS 140-3 Level 3
LED indicator	Control LED for video streaming/recording
Night operation	IR illumination

---
