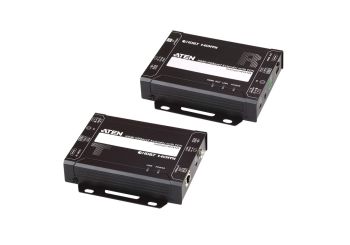

ATEN VE1812 HDMI HDBaseT Extender with POH content_copy

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable
Package Contents1x VE1812T HDMI HDBaseT Transmitter with POH
1x VE1812R HDMI HDBaseT Receiver with POH
1x 0AD9-1F05-30EG Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
FunctionVE1812RVE1812T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 ?
Max. DistanceN/A1.8 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ?N/A
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow controlConnector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)1 x Mini Stereo Jack Female (Black)
Switches
Long Reach Mode Switch1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Power
Connectors1 x DC Jack (Black) with locking1 x DC Jack (Black) with locking
ConsumptionDC 5V, 6.4WDC 5V, 4.3W
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.45 kg ( 0.99 lb )0.47 kg ( 1.04 lb )
Dimensions (L x W x H) with bracket14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	150 m
Supported video modes	1080p
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	10.2 Gbit/s
Material	Metal
Impedance	100 Ω
HDCP version	2.2
Product colour	Black
LED indicators
HDCP
3D
Firmware upgradeable
Consumer Electronics Control (CEC) support
Logistics data
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	6.98 kg
Master (outer) case net weight	6.5 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
AC adapter included
Quick start guide
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.4 kg
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
RS-232 input ports	1
RS-232 output ports	1
Video in	1
Video out	1
Remote (IR) input	1
Remote (IR) output	1
Ethernet LAN
HDBaseT port
3.5 mm (1/8-inch) in
3.5 mm (1/8-inch) out
DC-in jack
Power
Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V
Power consumption (transmitter) (max)	3.2 W
Power consumption (receiver) (max)	5.33 W
External power adapter
Technical data
Length packaging	0.283m
Packaging volume	0.0049m³
Weight	1.396kg
Height packaging	0.173m
Width packaging	0.100m
Article type	Extender bundle
Max. distance	100m
Technical details
Compliance certificates	RoHS
Weight & dimensions
Weight	1.3 kg
Receiver dimensions (WxDxH)	123 x 140.4 x 30 mm
Receiver weight	450 g
Transmitter dimensions (WxDxH)	123 x 140.4 x 30 mm
Transmitter weight	470 g

---
