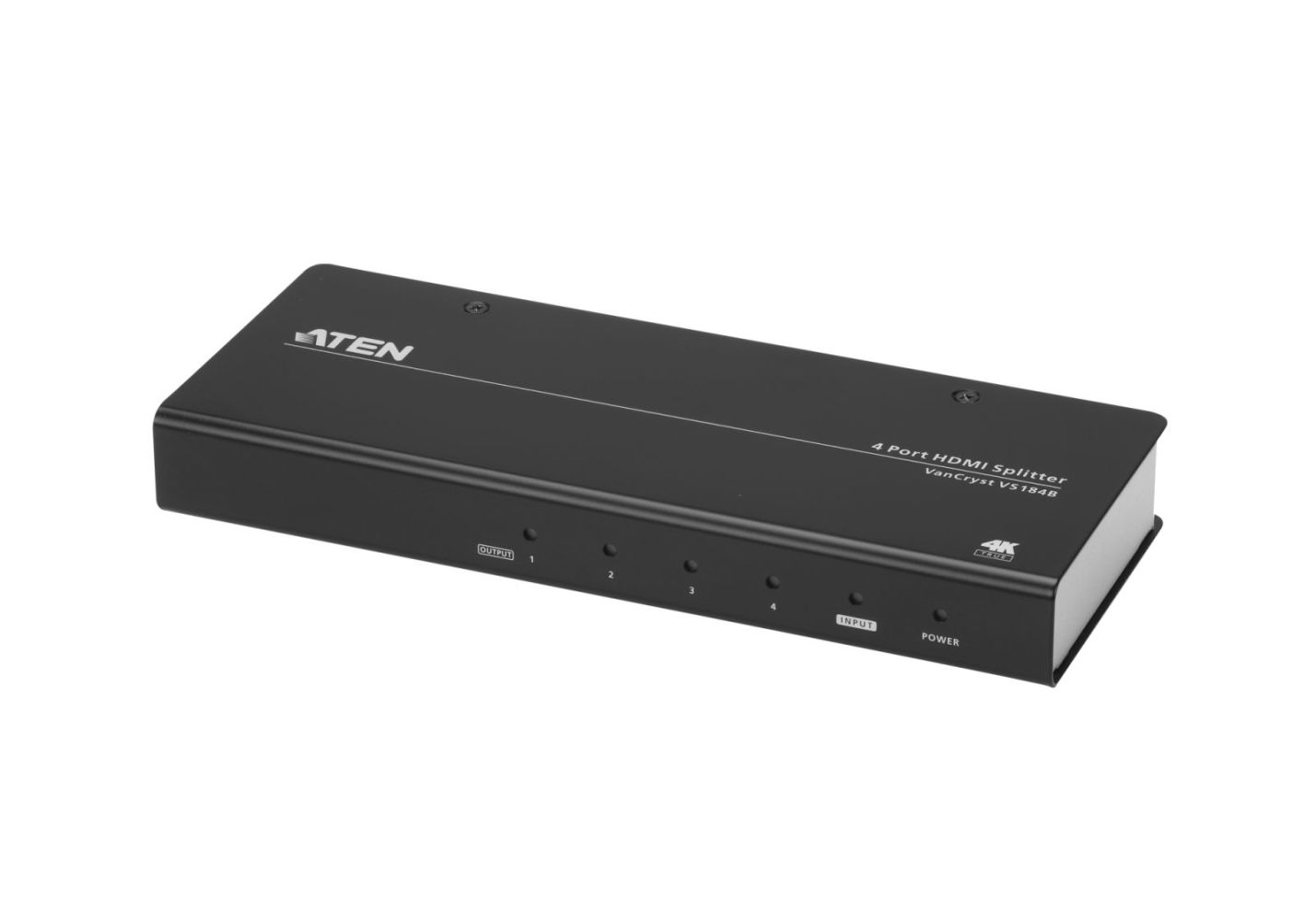

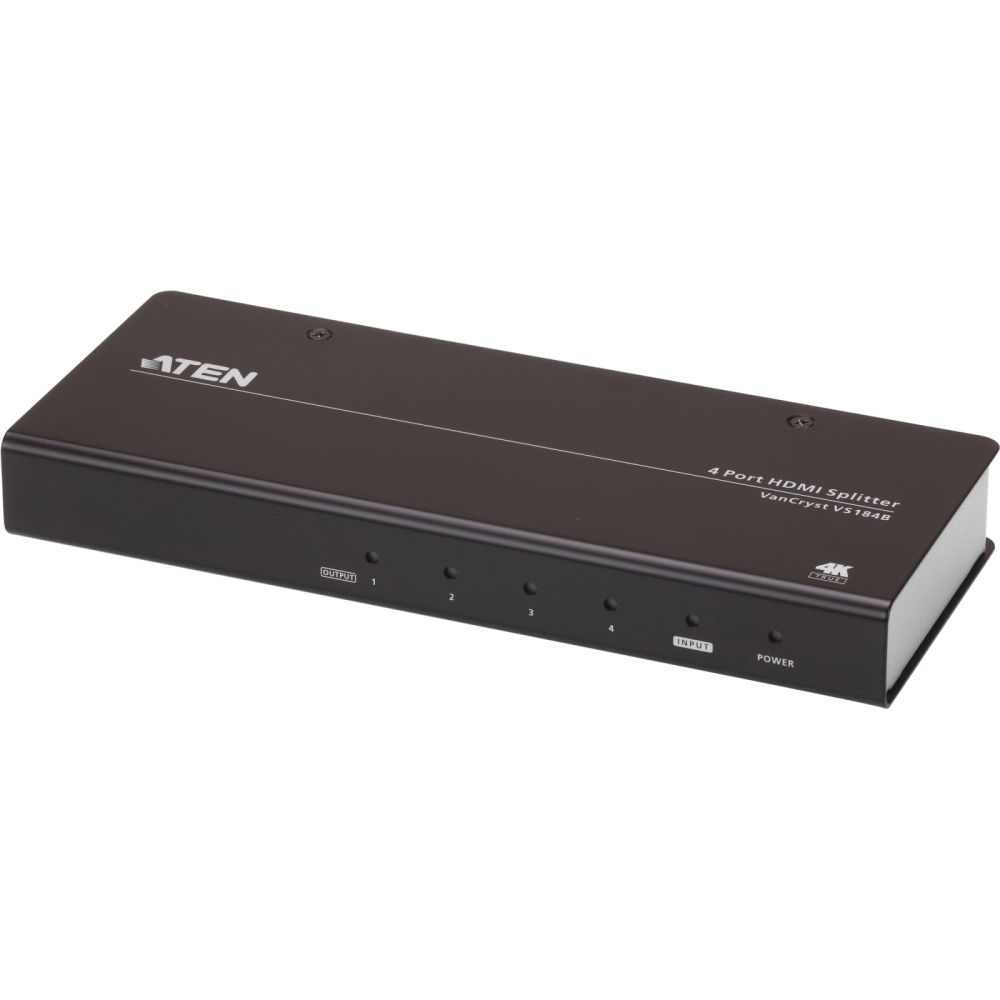

ATEN VS184B 4-Port HDMI Splitter True 4K/2K content_copy

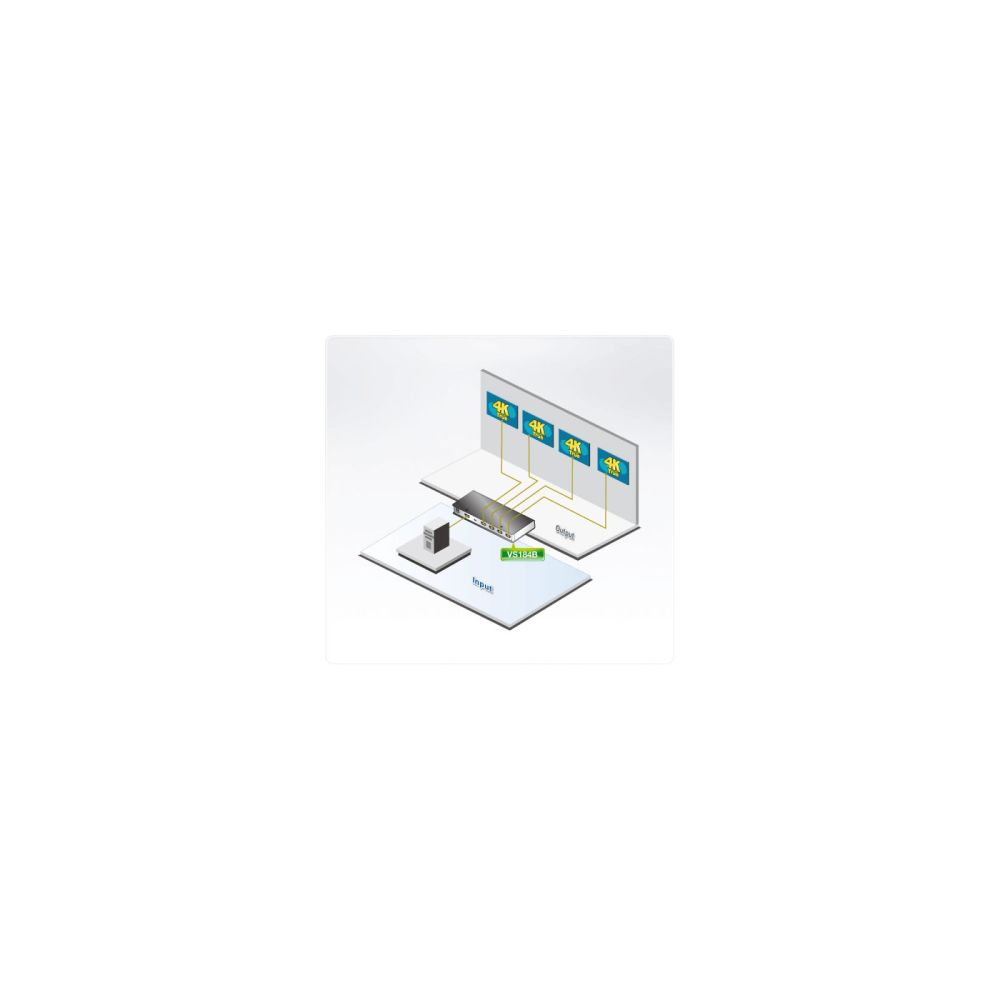

The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs. The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K, Compatible with ATEN 2L-7D02H HDMI cable)
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)

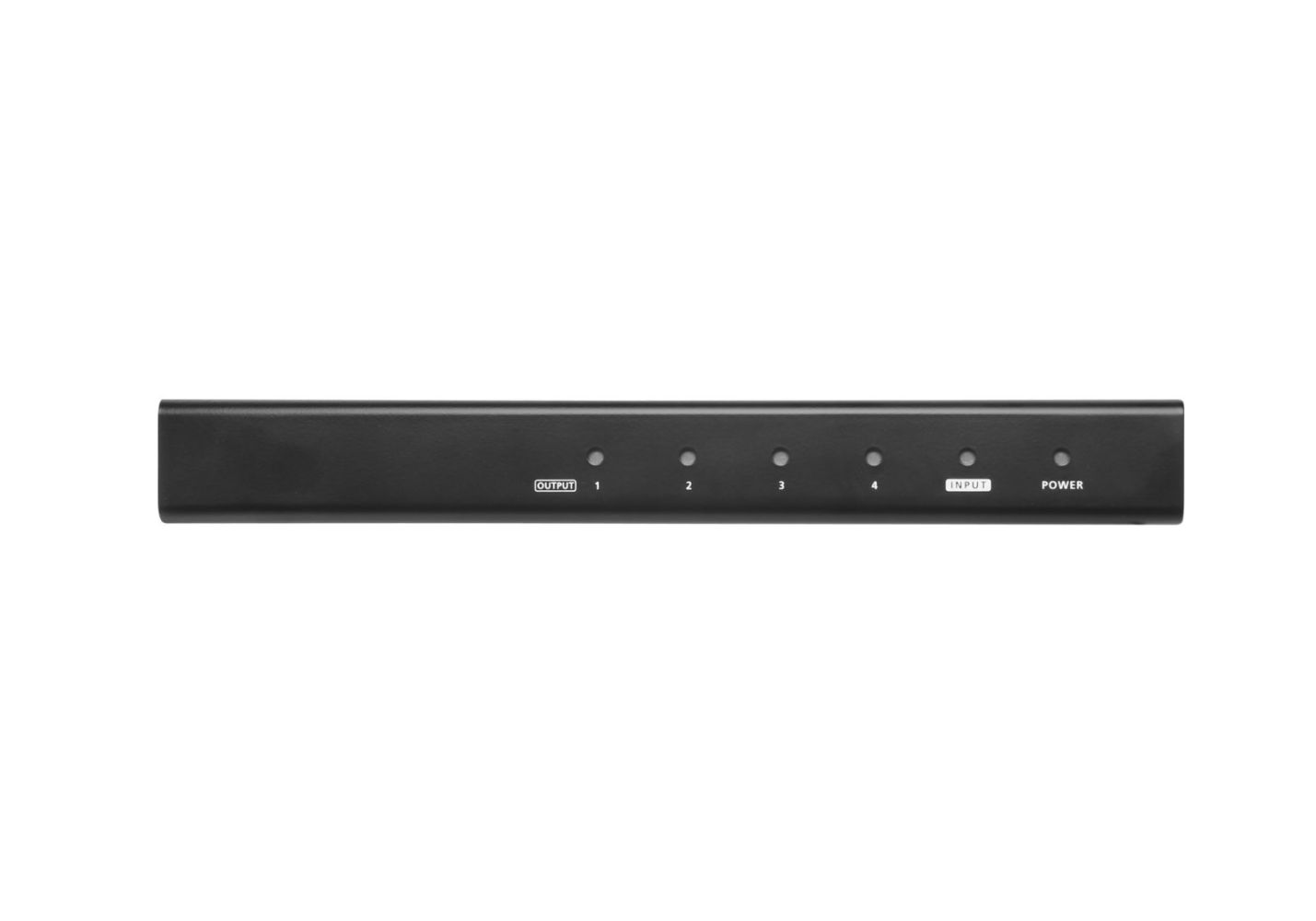

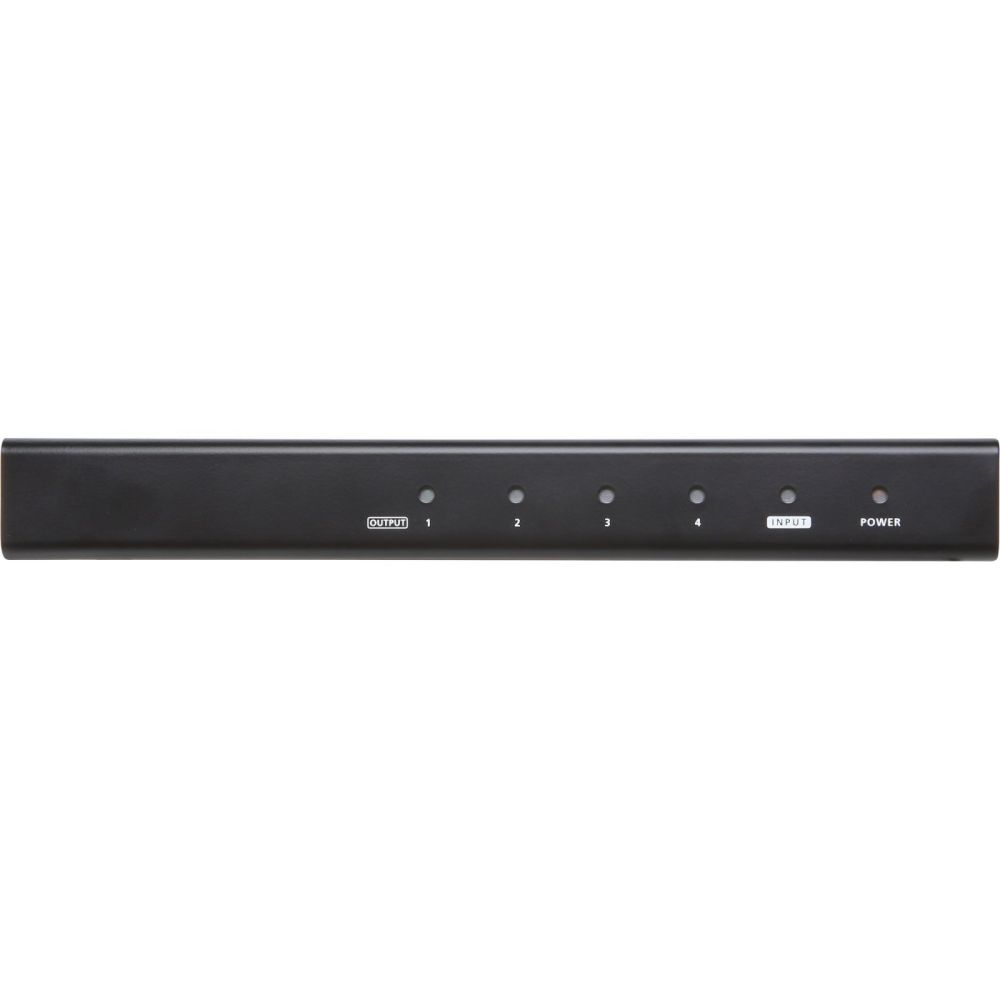

LED indication of power status and source devices

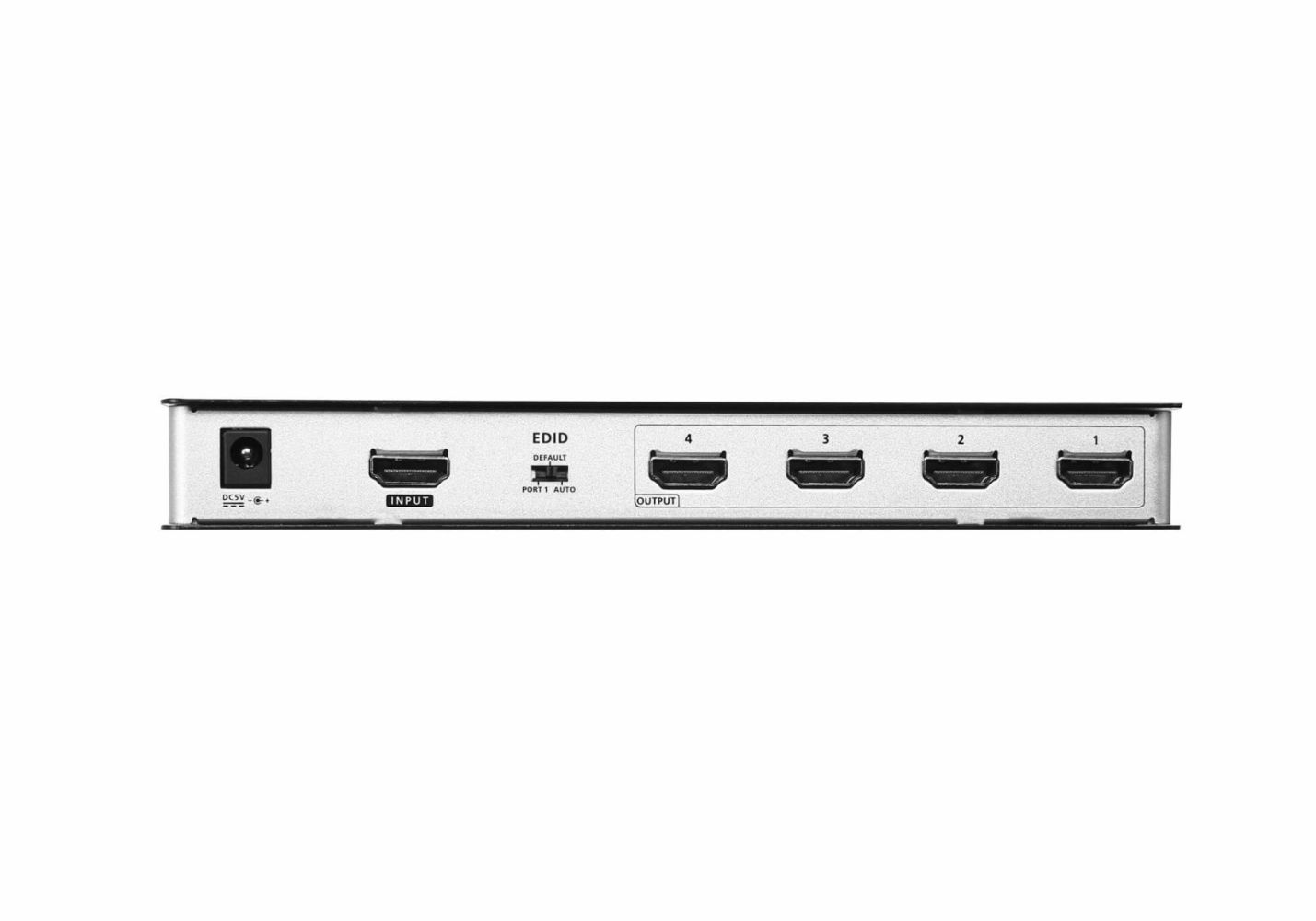

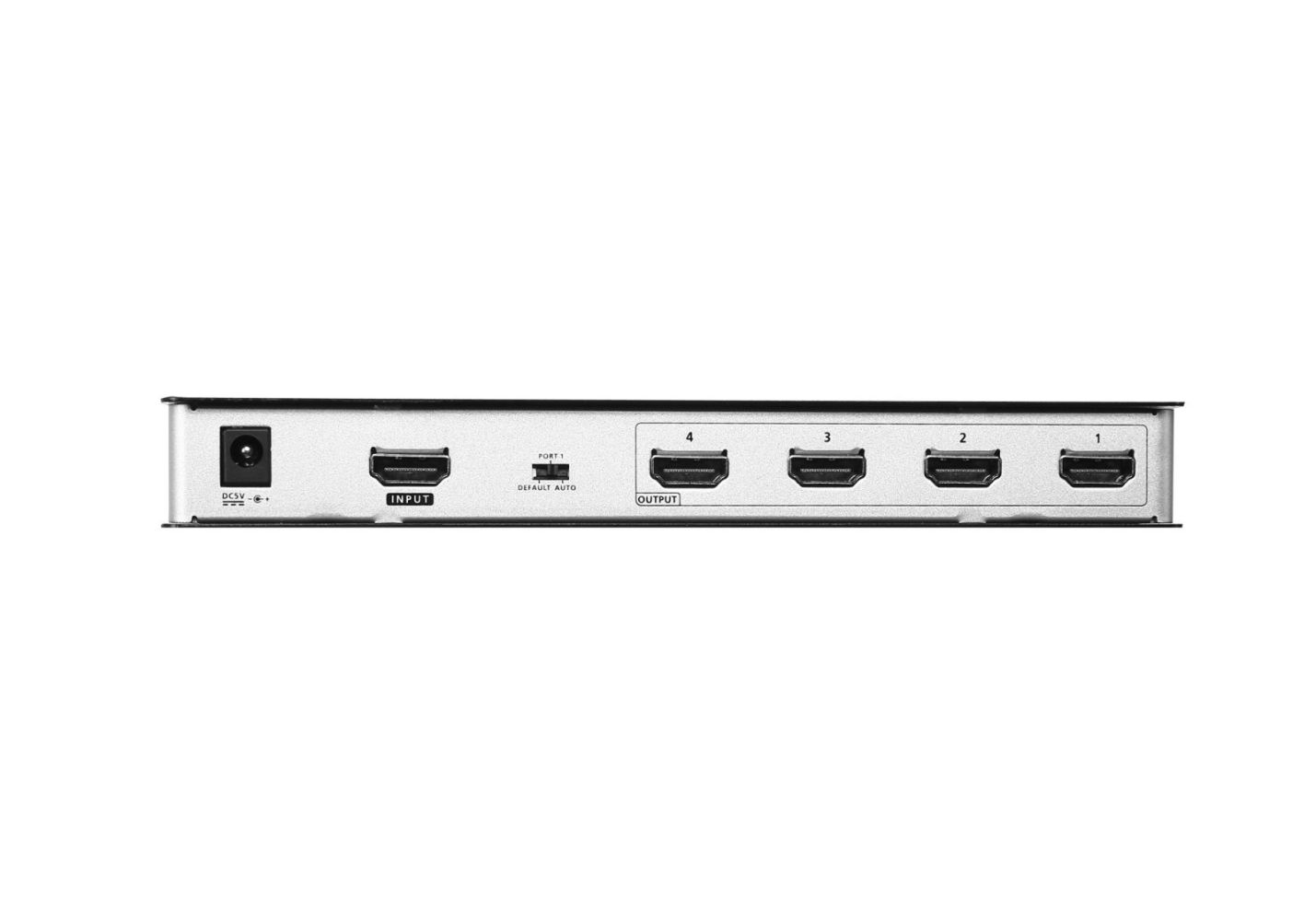

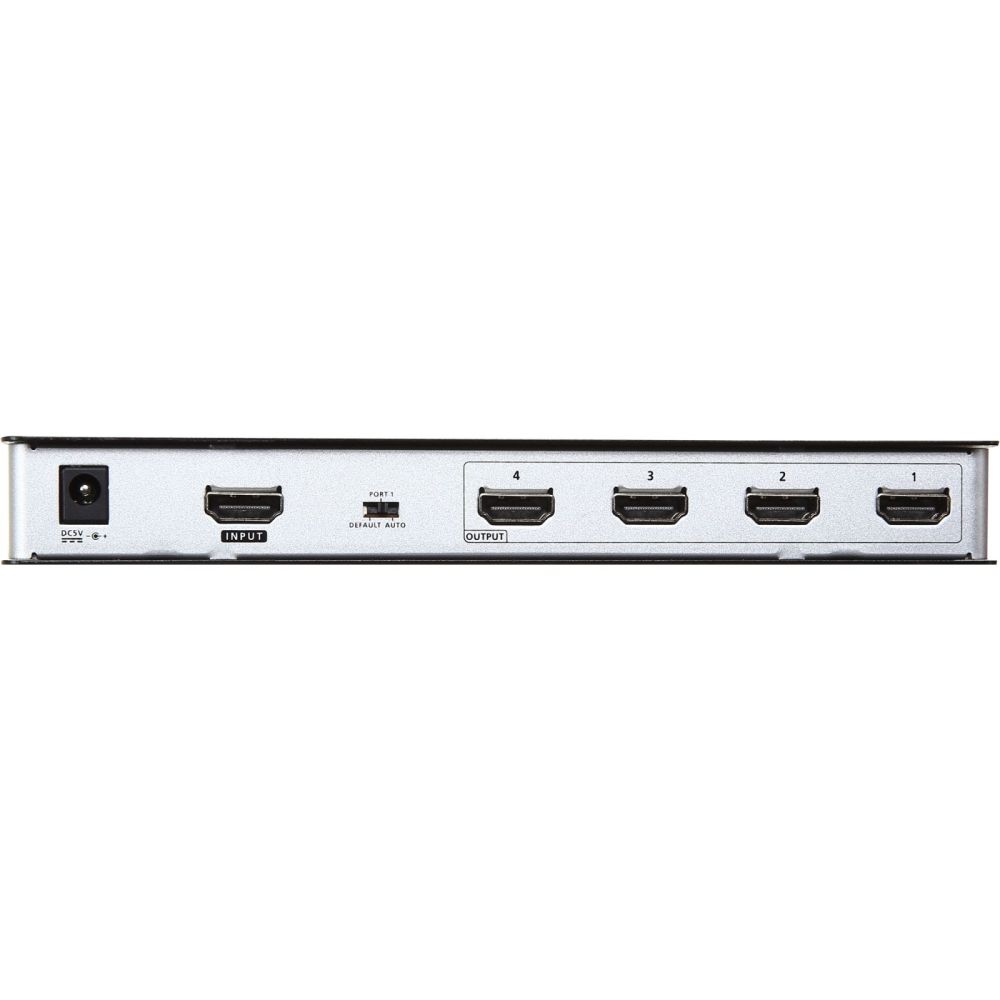

EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation required
Package Contents: 1x VS184B 4-Port True 4K HDMI Splitter, 1x Power adapter, 1x HDMI cable, 1x User Instructions
Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance1.8m / 4K@60Hz (4:4:4)
Video Output
Interfaces4 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance1.8m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Video
Max. Data Rate18Gpbs (6 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Output4 x HDMI Type A Female (Black)
Power
Connectors1 x DC Jack
Consumption5 VDC, 4.84W
Environmental
Operating Temperature0-40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.48 kg ( 1.06 lb )
Dimensions (L x W x H)20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Product colour	Black
Housing material	Metal
Maximum resolution	4096 x 2160 pixels
HD type	4K Ultra HD
Maximum operating distance	5 m
Maximum refresh rate	60 Hz
Bandwidth	600 MHz
HDCP version	2.2
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
3D
HDCP
Plug and Play
LED indicators
Logistics data
Master (outer) case net weight	13.6 kg
Harmonized System (HS) code	85176990
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	338 mm
Master (outer) case gross weight	17.7 kg
Products per master (outer) case	20 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Cables included	HDMI
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	830 g
Ports & interfaces
Video port type	HDMI
Video out	4x HDMI
HDMI version	2.0
Video ports quantity	5
DC-in jack
Power
AC input voltage	5 V
Power consumption (typical)	4.84 W
Technical data
Height packaging	0.160m
Interface	HDMI
Outputs	HDMI socket x4
Weight	0.830kg
Number of inputs	4
Width packaging	0.059m
Article type	Splitter
Packaging volume	0.0023m³
Length packaging	0.239m
Weight & dimensions
Width	80 mm
Depth	200 mm
Height	25 mm
Weight	680 g

---
