ATEN True 4K HDMI Booster with 4K2K@ 60Hz(4:4:4) and
|
81,08 EUR |
|
|
( 96,49 EUR incl. VAT ) ≈ £68.11 | ≈ $90.97 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 783603 |
| Mfg Part No: | VB800-AT-G |
| UPC/EAN: | 4719264645396 |
| Weight: | 0.311 kg |
Product information for Aten VB800-AT-G:

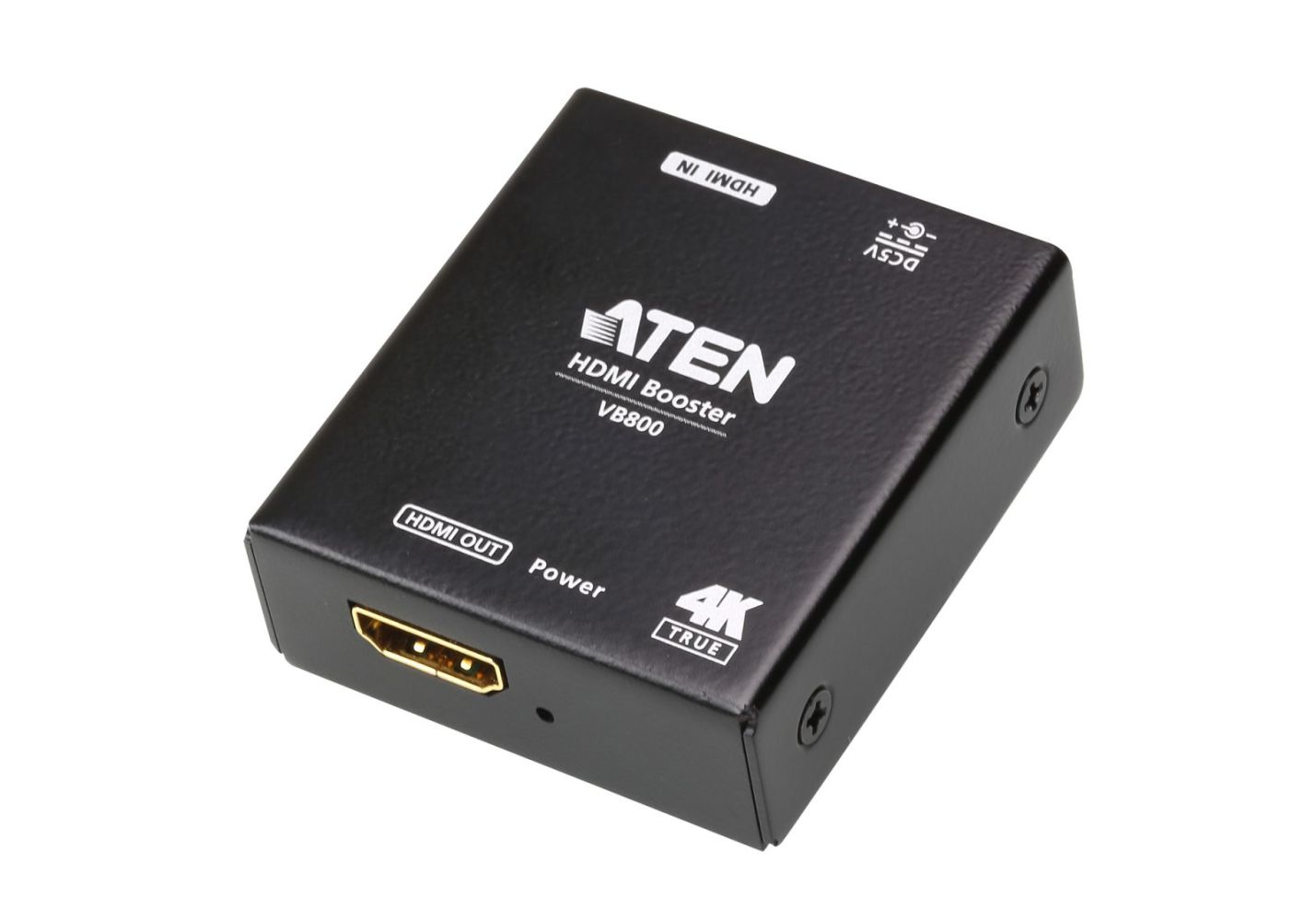

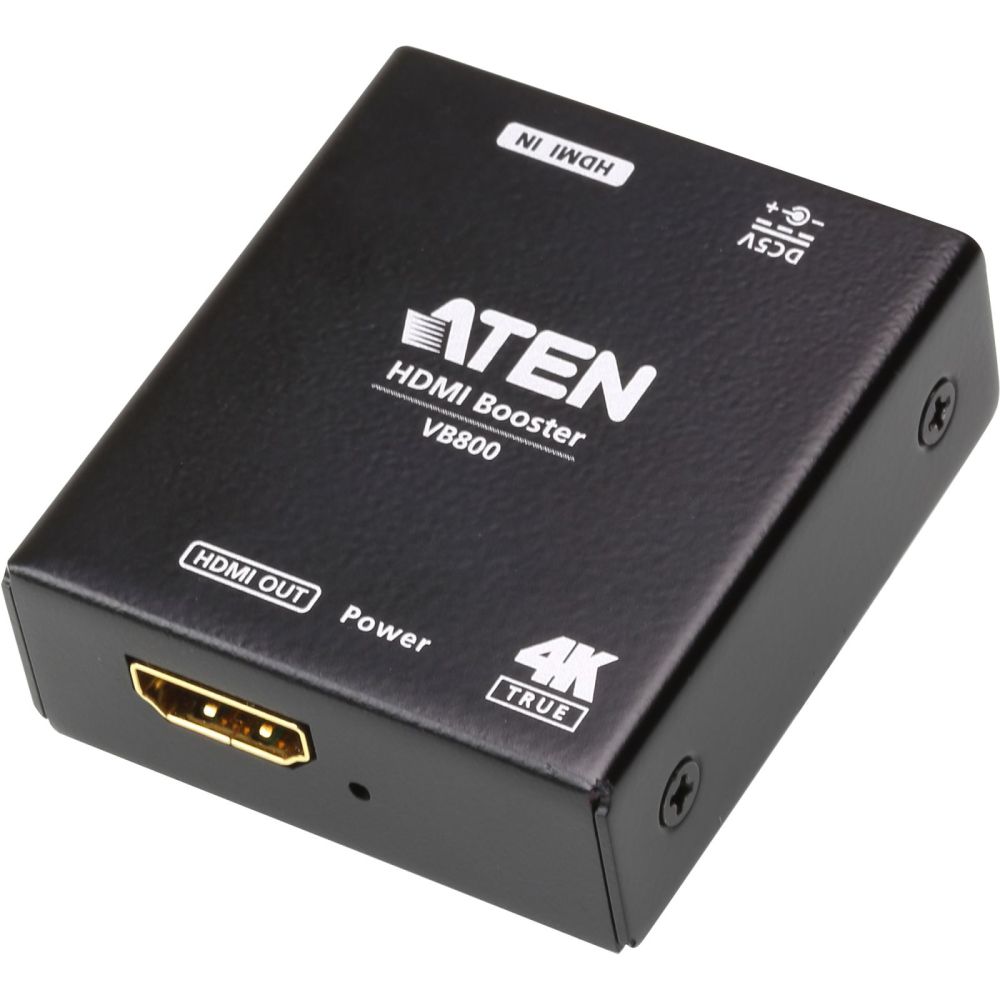

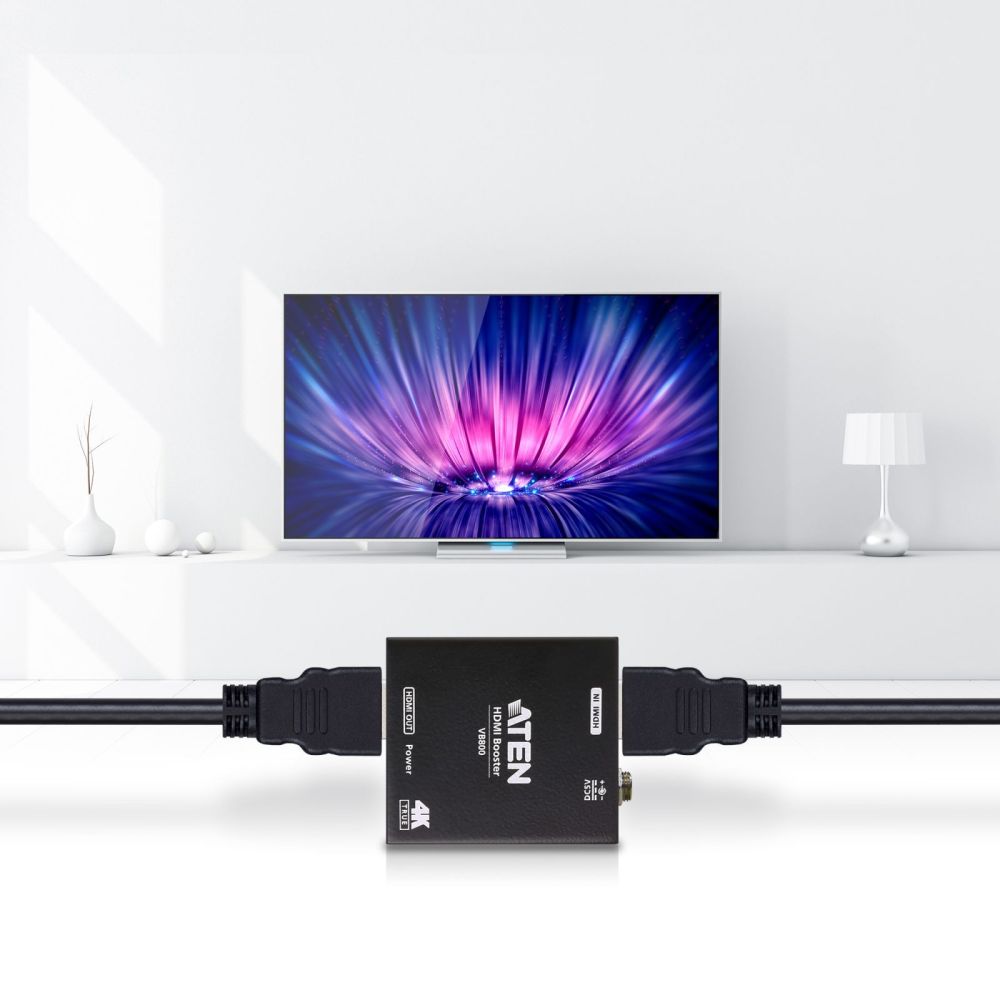

The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
HDMI (3D, Deep Color, 4K)
Max. Data Rate 18 Gpbs (6 Gbps Per Lane)
HDMI and HDCP 2.2 compatible
4K resolution when cascaded up to 10 levels

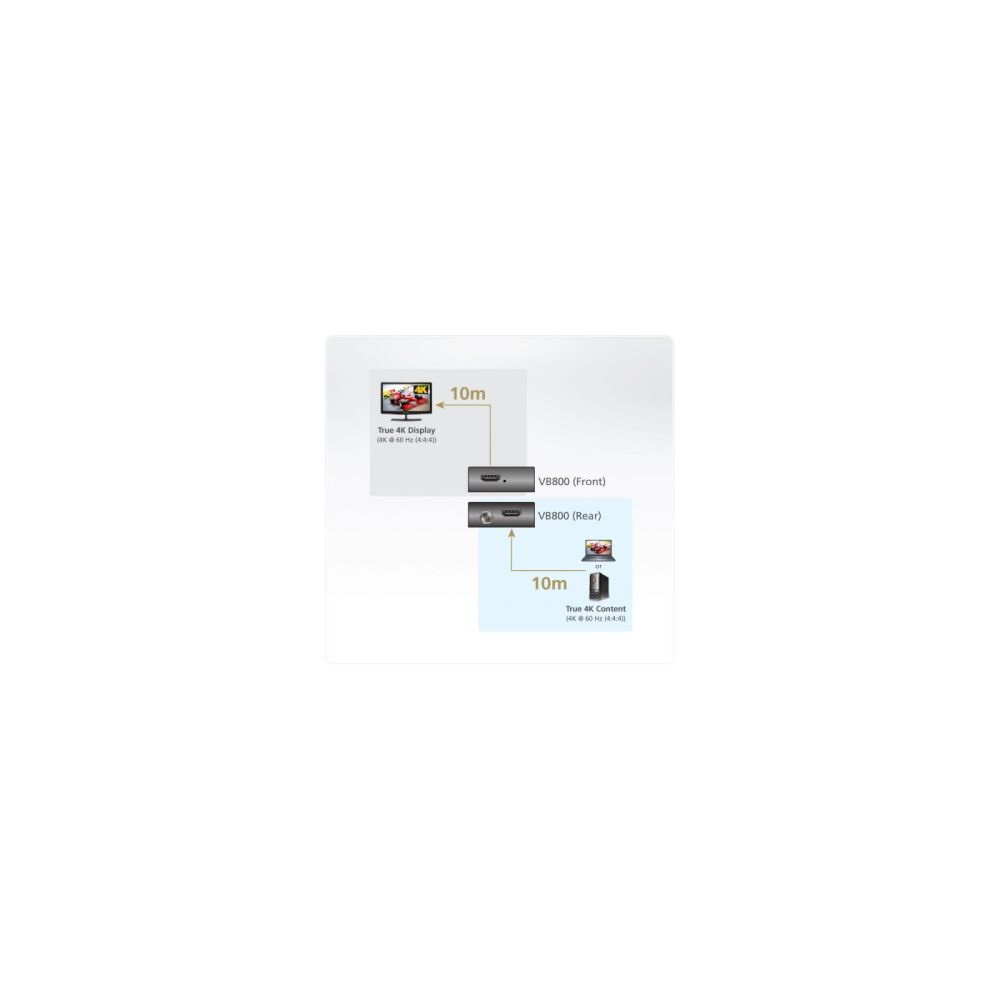

Input/output max distance for single unit: True 4k resolution up to a distance of 10 meters; 1080p resolution up to a distance of 20 meters (Longer distances are possible with lower data rates and/or higher quality cable.)
A single unit can be powered from the source device
Supports HDR
Plug-and-play — No software installation required
Rack mountable
Package Contents: 1x VB800 True 4k HDMI Booster, 1x Power Adapter, 1x Rack Mount Kit, 1x User Instructions
Video Input
Interfaces1 x HDMI Type A Female (Black)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Video
Max. Bandwidth600 MHz
Max. Resolutions / DistanceUp to 4Kx2K@60 Hz (4:4:4)/10m; 1080p@60Hz/20m
Max. Data Rate18Gpbs(6 Gbps Per Lane)
ComplianceHDMI, HDCP 2.2 Compatible
Power
Connectors1 x DC Jack
Consumption5VDC ,
[4K2K 60Hz] Power Consumption: 0.99W
[1080p 60Hz] Power Consumption: 0.66W
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.09 kg ( 0.21 lb )
Dimensions (L x W x H)4.90 x 5.60 x 1.70 cm
(1.93 x 2.2 x 0.67 in.)
Carton Lot10 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
HDMI (3D, Deep Color, 4K)
Max. Data Rate 18 Gpbs (6 Gbps Per Lane)
HDMI and HDCP 2.2 compatible
4K resolution when cascaded up to 10 levels
Input/output max distance for single unit: True 4k resolution up to a distance of 10 meters; 1080p resolution up to a distance of 20 meters (Longer distances are possible with lower data rates and/or higher quality cable.)
A single unit can be powered from the source device
Supports HDR
Plug-and-play — No software installation required
Rack mountable
Package Contents: 1x VB800 True 4k HDMI Booster, 1x Power Adapter, 1x Rack Mount Kit, 1x User Instructions
Video Input
Interfaces1 x HDMI Type A Female (Black)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Video
Max. Bandwidth600 MHz
Max. Resolutions / DistanceUp to 4Kx2K@60 Hz (4:4:4)/10m; 1080p@60Hz/20m
Max. Data Rate18Gpbs(6 Gbps Per Lane)
ComplianceHDMI, HDCP 2.2 Compatible
Power
Connectors1 x DC Jack
Consumption5VDC ,
[4K2K 60Hz] Power Consumption: 0.99W
[1080p 60Hz] Power Consumption: 0.66W
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.09 kg ( 0.21 lb )
Dimensions (L x W x H)4.90 x 5.60 x 1.70 cm
(1.93 x 2.2 x 0.67 in.)
Carton Lot10 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Features | |
| Type | AV transmitter & receiver |
| Maximum transfer distance | 20 m |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Bandwidth | 18 Gbit/s |
| Material | Metal |
| Product colour | Black |
| HDCP | |
| Plug and Play | |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.56 kg |
| Master (outer) case net weight | 2.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 300 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 0.99 W |
| Technical data | |
| Packaging volume | 0.0011m³ |
| Width packaging | 0.059m |
| Weight | 0.300kg |
| Max. distance | 20m |
| Max. resolution | 4K up to 10m, 1080p up to 20m |
| Height packaging | 0.160m |
| Length packaging | 0.119m |
| Article type | HDMI amplifier |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 49 mm |
| Height | 17 mm |
| Weight | 290 g |
