ATEN KL1508AiN 48cm LCD IP KVM 8-port FR layout content_copy

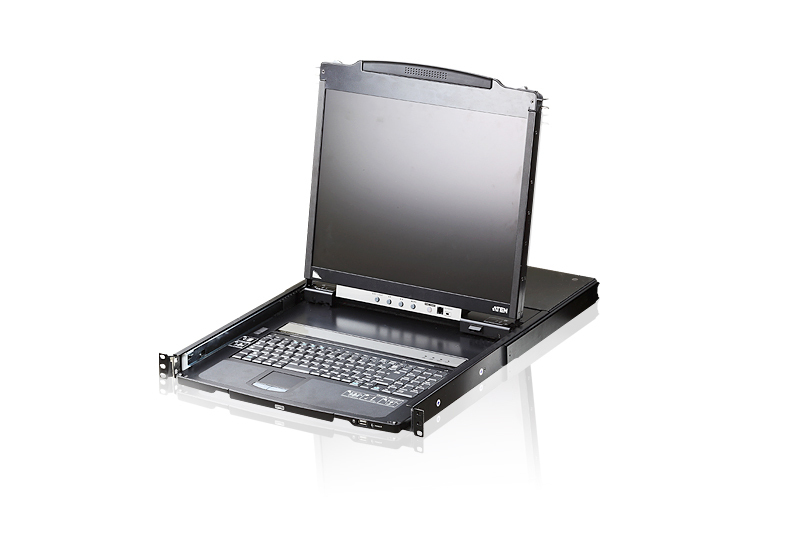

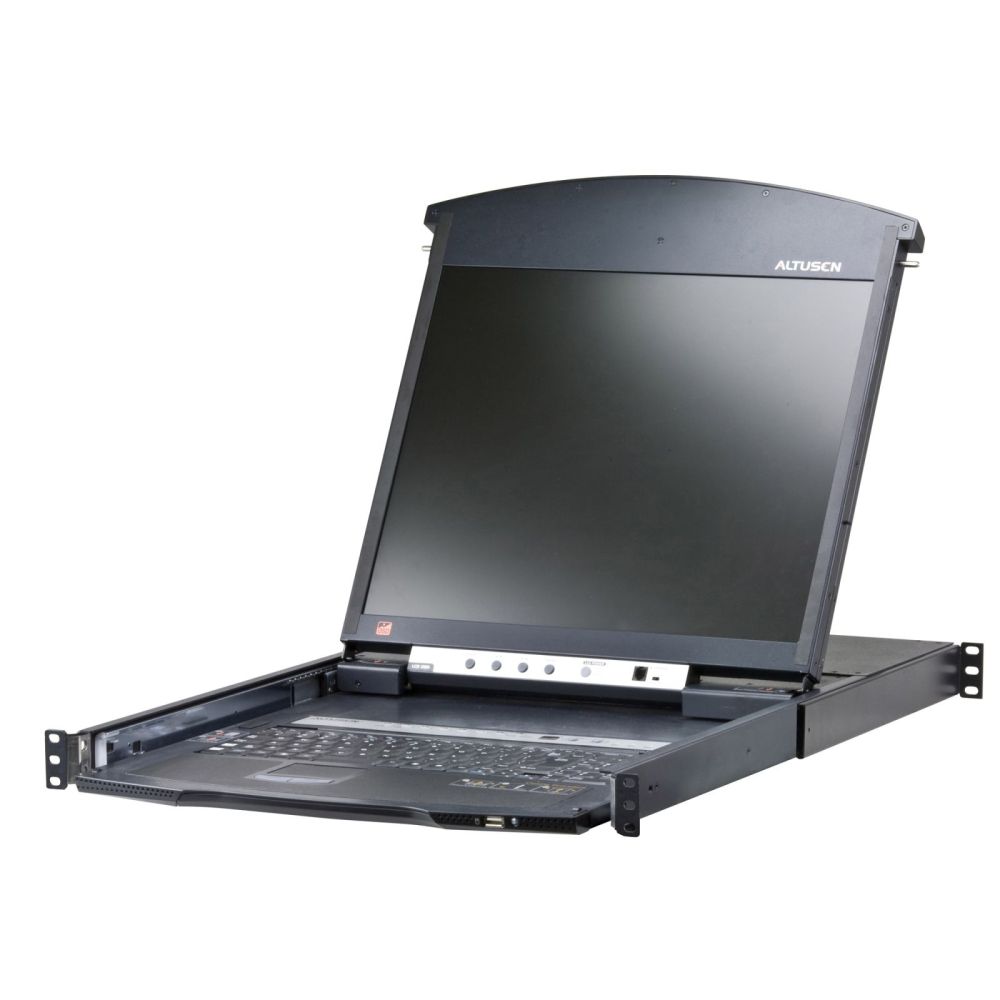

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

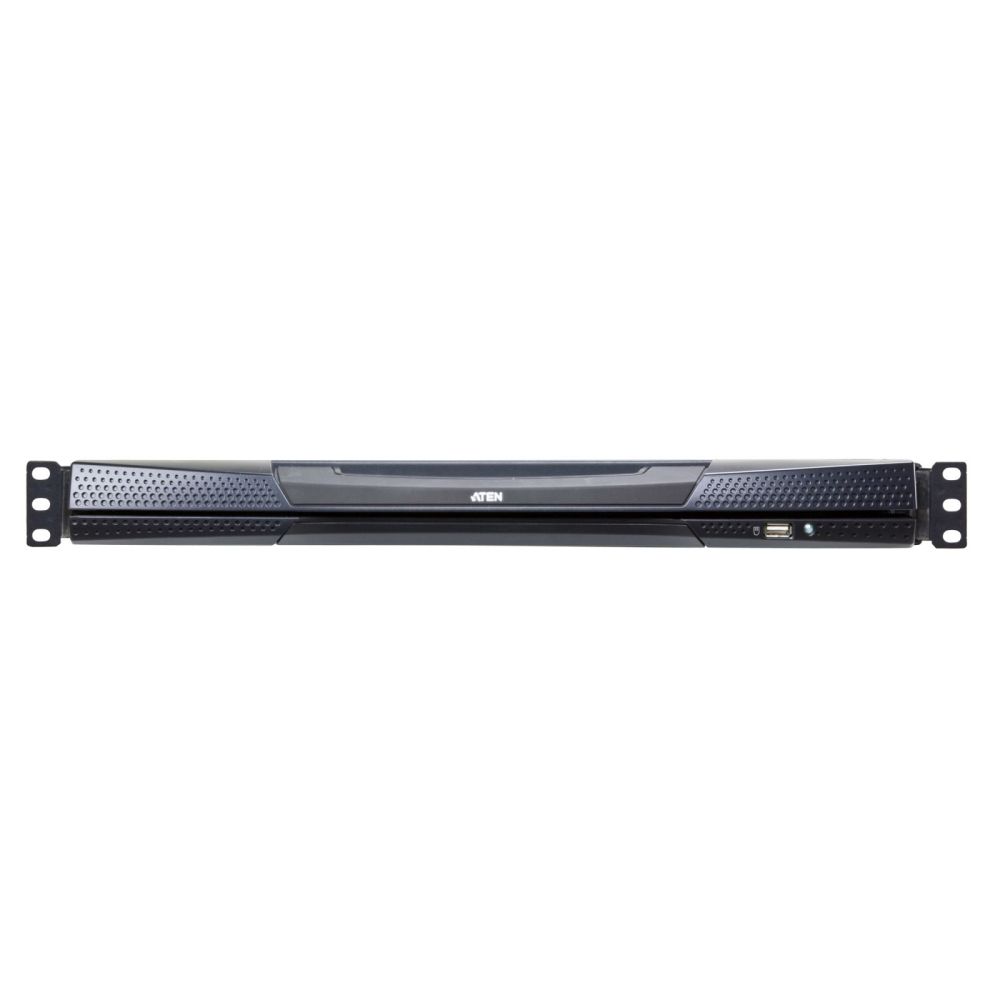

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

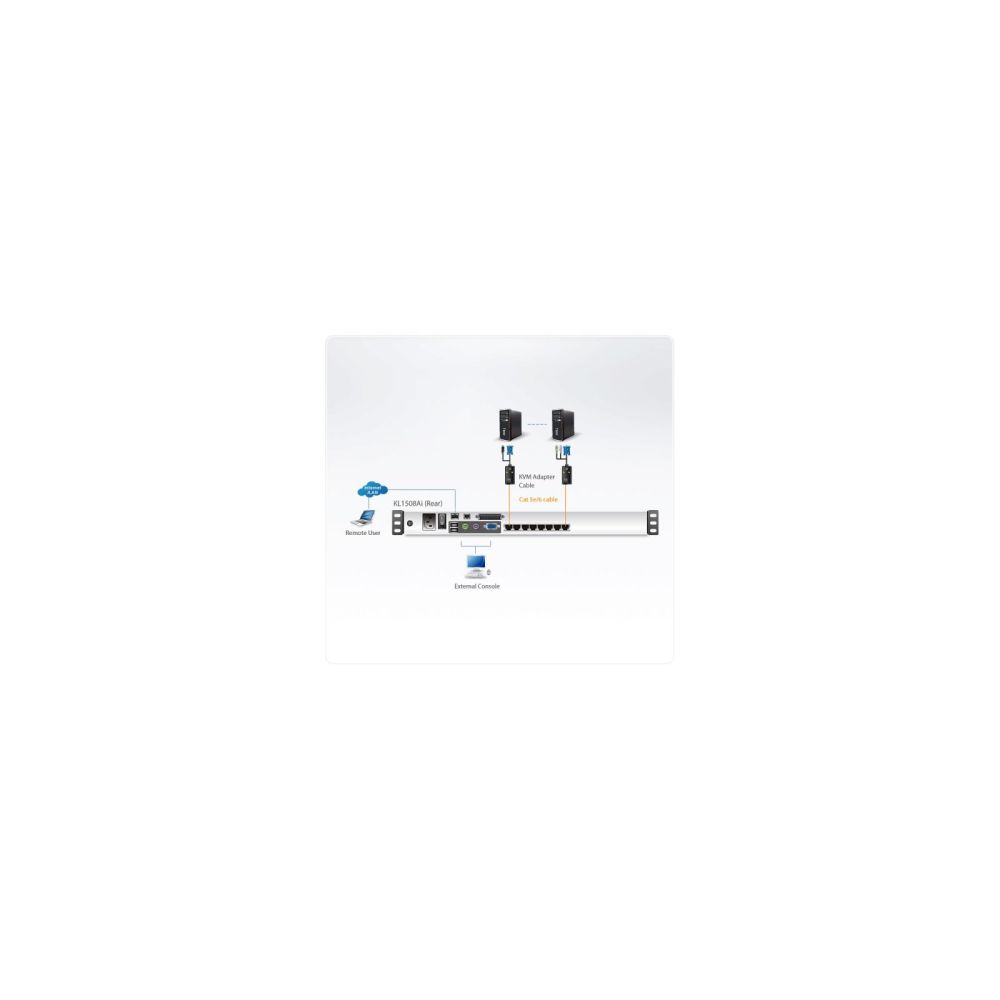

Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapters to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

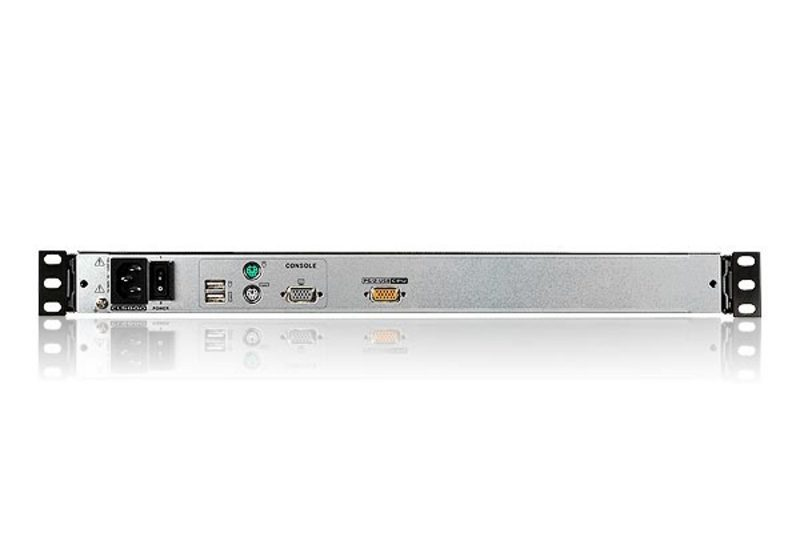

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.
Enhanced features include a Panel Array Mode™ that displays the video output of up to 8 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1508Ai is an ideal solution for your server room management.

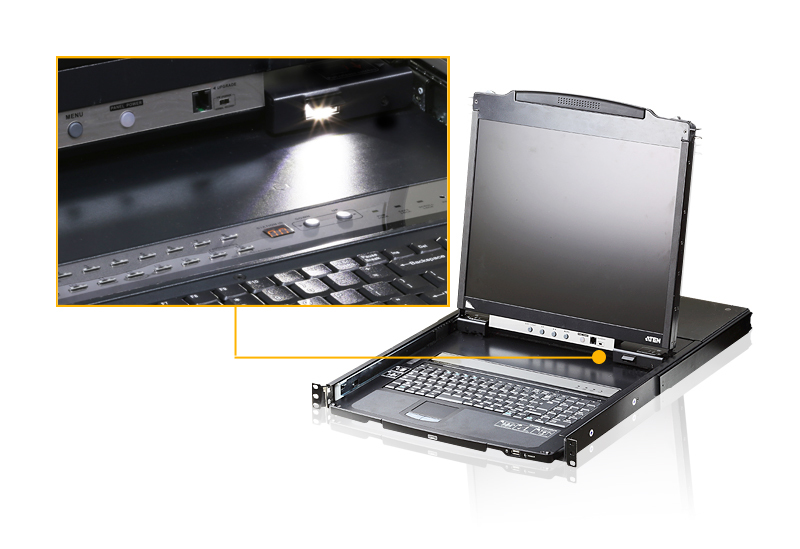

HardwareExclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
A single console controls up to 8 computers
Daisy chain up to 15 additional KVM switches to control up to 128 computers1
One bus for remote KVM over IP access
Space-saving RJ-45 connectors and Cat 5e/6 cabling
KVM adapters designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
Multiplatform support: PC, Mac, Sun and Serial
Supports external USB mouse
Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail – LCD monitor slides independently of the keyboard/touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock – enables the console drawer to remain securely locked away in position when not in use
LCD power button helps save energy and prolong displays´ life
Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz2 up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
Optional rack mount kits available including easy installation options
Note:
1. Compatible KVM switches: KH1508A / KH1516A, ACS1208A, CS1708A / CS1716A
2. With KVM Adapter KA71xx or KA75xx series; please check the product label to ensure it's the FHD version
ManagementUp to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate any running session
Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached Power Over the NET™ devices
Integration with ATEN CC2000 Management software
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable
Easy-to-Use InterfaceEasy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Edge
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode™
Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
Note: Local Console only
Advanced SecurityRemote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent Keyboard/Mouse and video data encryption
IP/MAC Filter support for enhanced security protection
Configurable user and group permissions for server access and control
Virtual Remote DesktopVideo quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full-screen or sizable and scalable Virtual Remote Desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi language support
BIOS-level access
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Package Contents1x KL1508Ai Dual Rail LCD KVM Switch
1x Power Cord
1x Standard Rack Mount Kit
1x Firmware Upgrade Cable
2x L Brackets
1x User Instructions
FunctionKL1508AiMKL1508AiN
Console Connections
Local1 (Share Remote Bus)1 (Share Remote Bus)
Remote11
Computer Connections
Direct88
Maximum128 (via Daisy-chain)128 (via Daisy-chain)
Port SelectionOSD, Hotkey, PushbuttonsOSD, Hotkey, Pushbuttons

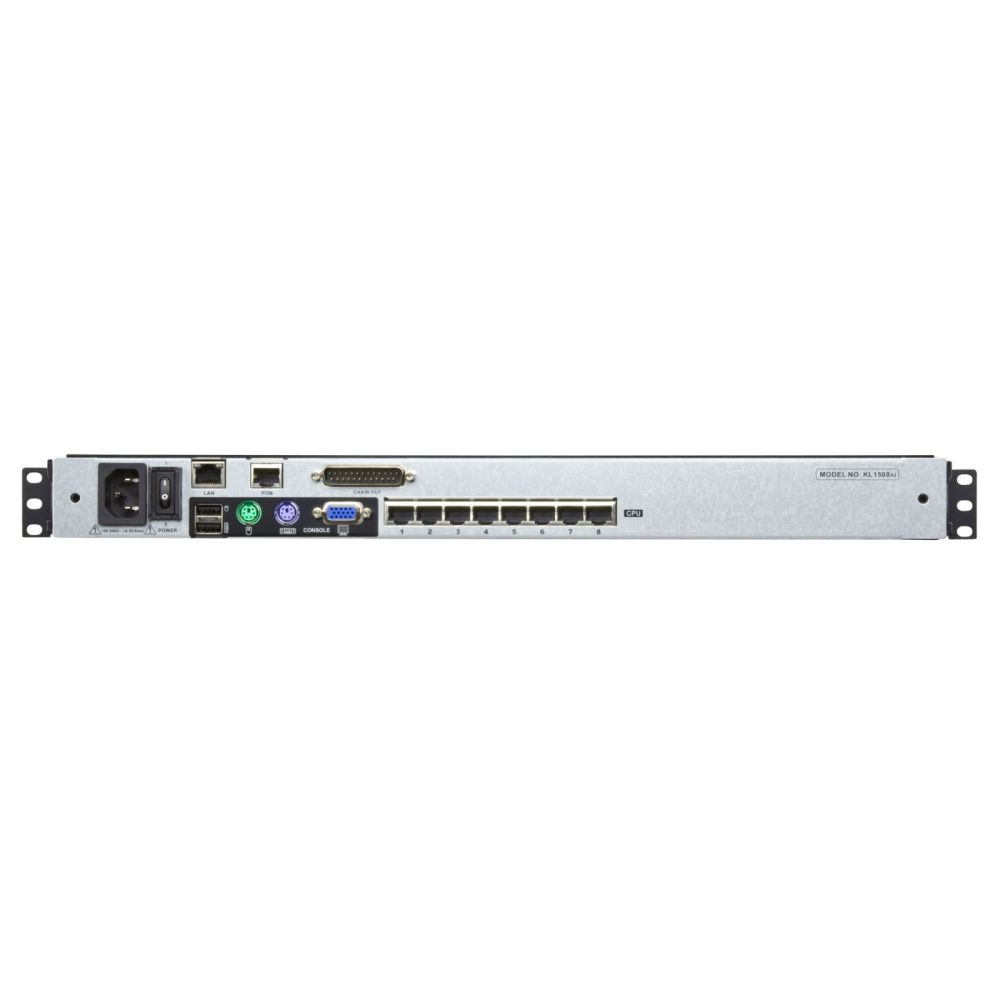

Connectors
Console Ports2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
External Mouse Port1 x USB Type-A Female1 x USB Type-A Female
KVM Ports8 x RJ-45 Female8 x RJ-45 Female
Daisy Chain Ports1 x DB-25 Male1 x DB-25 Male
PON1 x RJ-45 Female1 x RJ-45 Female
Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female
LAN Ports1 x RJ-45 Female1 x RJ-45 Female
Power1 x IEC 60320/C141 x IEC 60320/C14
Switches
Port Selection8 x Pushbutton8 x Pushbutton
Station Selection2 x Pushbutton2 x Pushbutton
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide1 x Slide
Power1 x Rocker1 x Rocker
LCD Power1 x Pushbutton1 x Pushbutton
LCD Adjustment4 x Pushbutton4 x Pushbutton
LEDs
Online8 (Green)8 (Green)
Selected8 (Orange)8 (Orange)
Station Selection2 x 7 Segments (Orange)2 x 7 Segments (Orange)
Link1 (Green)1 (Green)
10/100/1000 Mbpsnon-FHD:10/100 Mbps (Orange / Green)
FHD:100/1000 Mbps (Orange / Green)non-FHD:10/100 Mbps (Orange / Green)
FHD:100/1000 Mbps (Orange / Green)
Power1 (Blue)1 (Blue)
LCD Power1 (Orange)1 (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Video
Local1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)
RemoteFHD: 1920 x 1200 @ 60Hz
Non-FHD: 1600 x 1200 @ 60 HzFHD: 1920 x 1200 @ 60Hz
Non-FHD: 1600 x 1200 @ 60 Hz
Panel Spec
LCD Module43,2 cm ( 17 inch ) TFT-LCD48,3 cm ( 19 inch ) TFT-LCD
Resolution1280 x 1024 @ 75Hz1280 x 1024 @ 75Hz
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Support Color16.7M colors16.7M colors
Contrast Ratio1000:11000:1
Luminance250 cd/m²250 cd/m²
Emulation
Keyboard / MousePS/2; USBPS/2; USB
Scan Interval1–255 sec.1–255 sec.
Maximum Input Power Rating100–240V AC, 50-60Hz, 1A100–240V AC, 50-60Hz, 1A
Power ConsumptionAC110V:21.1W:110BTU/h
AC220V:22.2W:115BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.AC110V:24.3W:125BTU/h
AC220V:24.5W:126BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight15.23 kg ( 33.55 lb )15.39 kg ( 33.9 lb )
Dimensions (L x W x H)48.00 x 70.12 x 4.40 cm
(18.9 x 27.61 x 1.73 in.)48.00 x 70.12 x 4.40 cm
(18.9 x 27.61 x 1.73 in.)

Display
Display diagonal	48.3 cm (19")
Display	LCD
Keyboard
Keyboard language	UK English
Keyboard layout	QWERTY
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Quick installation guide
Manual
Packaging data
Package weight	18.2 kg
Package width	668 mm
Package depth	833 mm
Package height	135 mm
Ports & interfaces
Video port type	VGA
Power
Input current	1 A
System requirements
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Design	Rack-Mount
Periphery inputs per CPU	With adapter cable
Resolution integrated display	1280x1024
Type 2	8-port VGA KVM
Screen connectors per console	1
Number of consoles	1x external + 1x (integrated)
Peripheral outputs per console	USB mouse for integrated console x1, USB-A female x2, PS/2 for external console x2
Audio per CPU	Without
Audio outputs per console	Without
TP Network	RJ45 x1
Max. resolution	1920x1200 / 60Hz
Video inputs per CPU	RJ45 x1 (VGA via adapter cable)
Fiber optic network	Without
Video outputs per console	VGA x1
Keyboard layout	FR (French)
Data rate	480Mb/s
Number of CPU	8
Type 1	KVM over IP switch with display
Display diagonal	19"
Audio loudspeakers
Audio microphone
Extension (daisy chain or cascading)
USB peripherals
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	1
Rack mounting
LED indicators
Weight & dimensions
Width	680.4 mm
Height	44 mm
Depth	480 mm
Weight	14.6 kg

---
