ATEN CL3116NX KVM switch 18.5-inch TFT VGA PS/2-USB 16-port UK layout content_copy

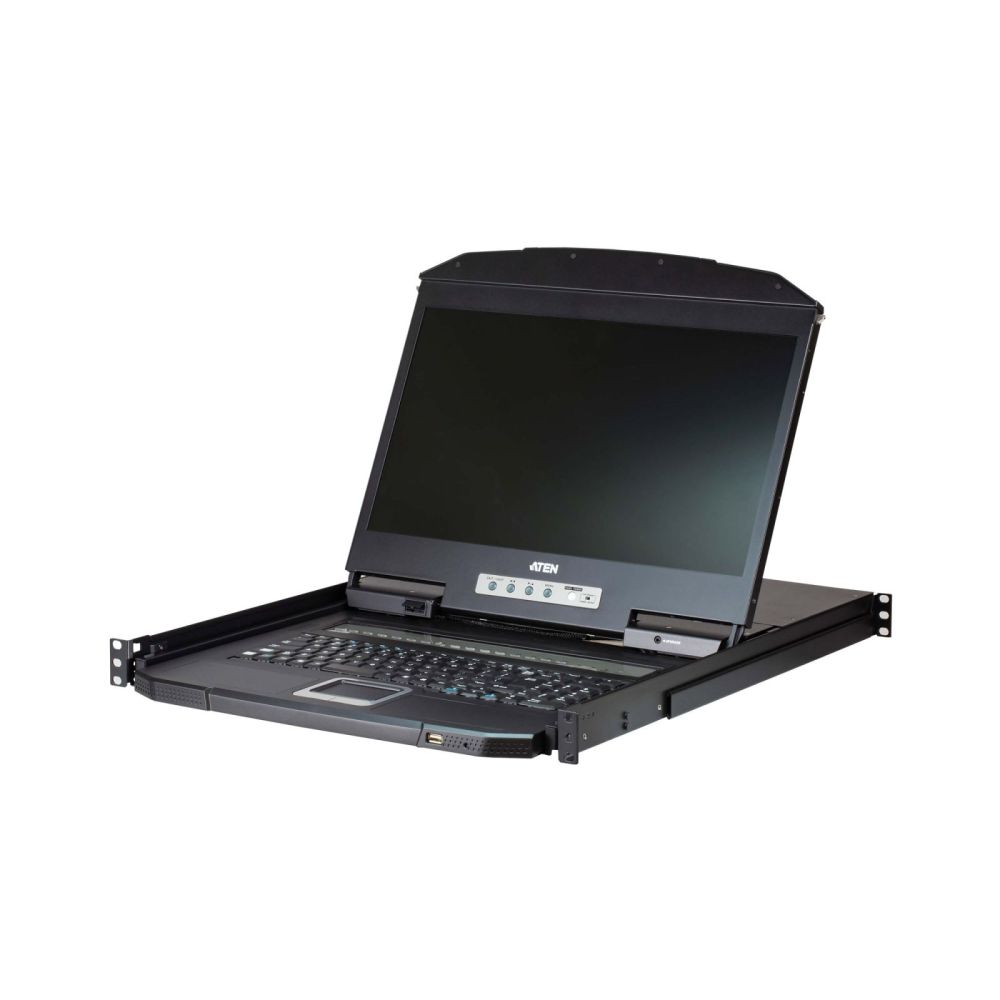

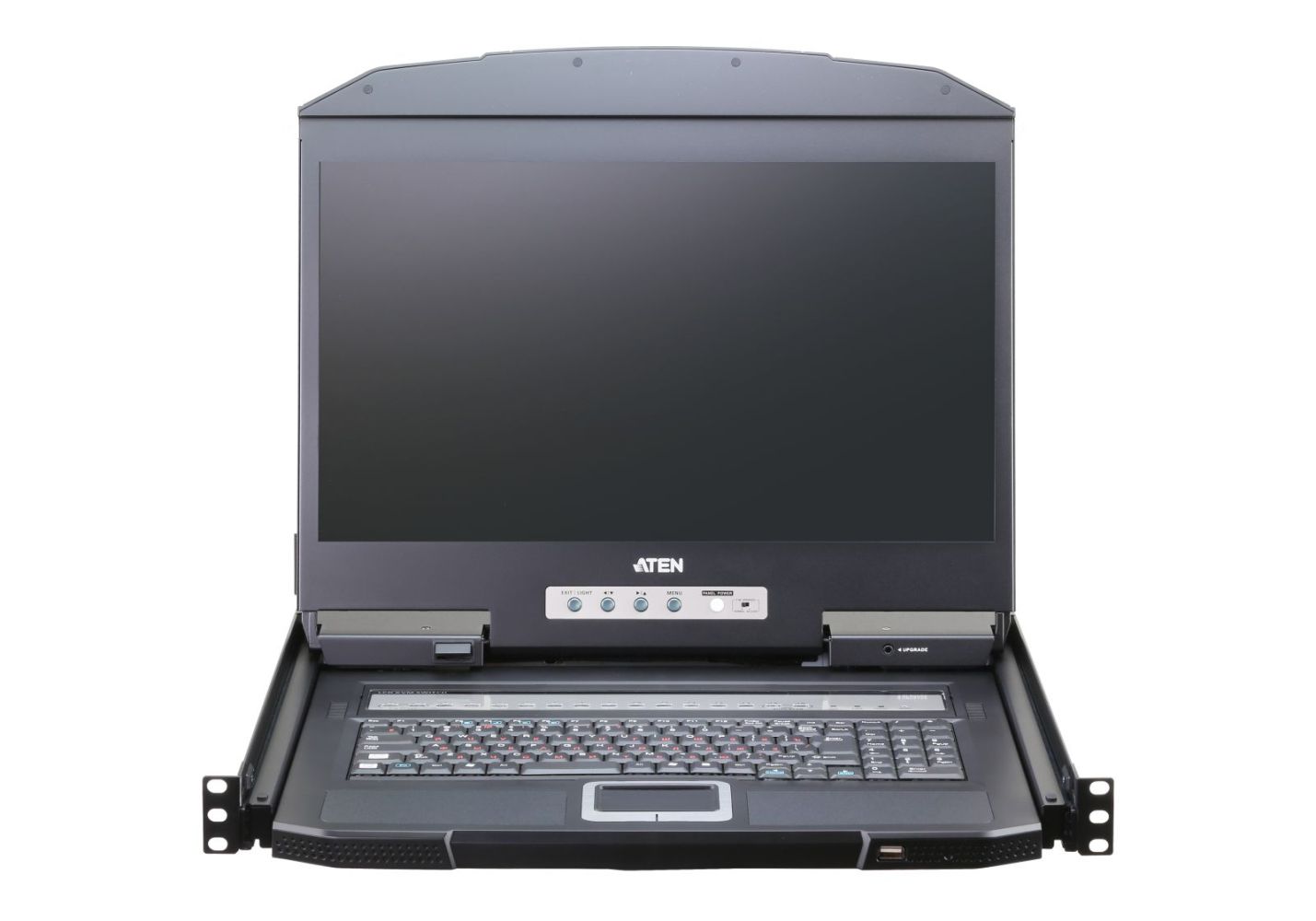

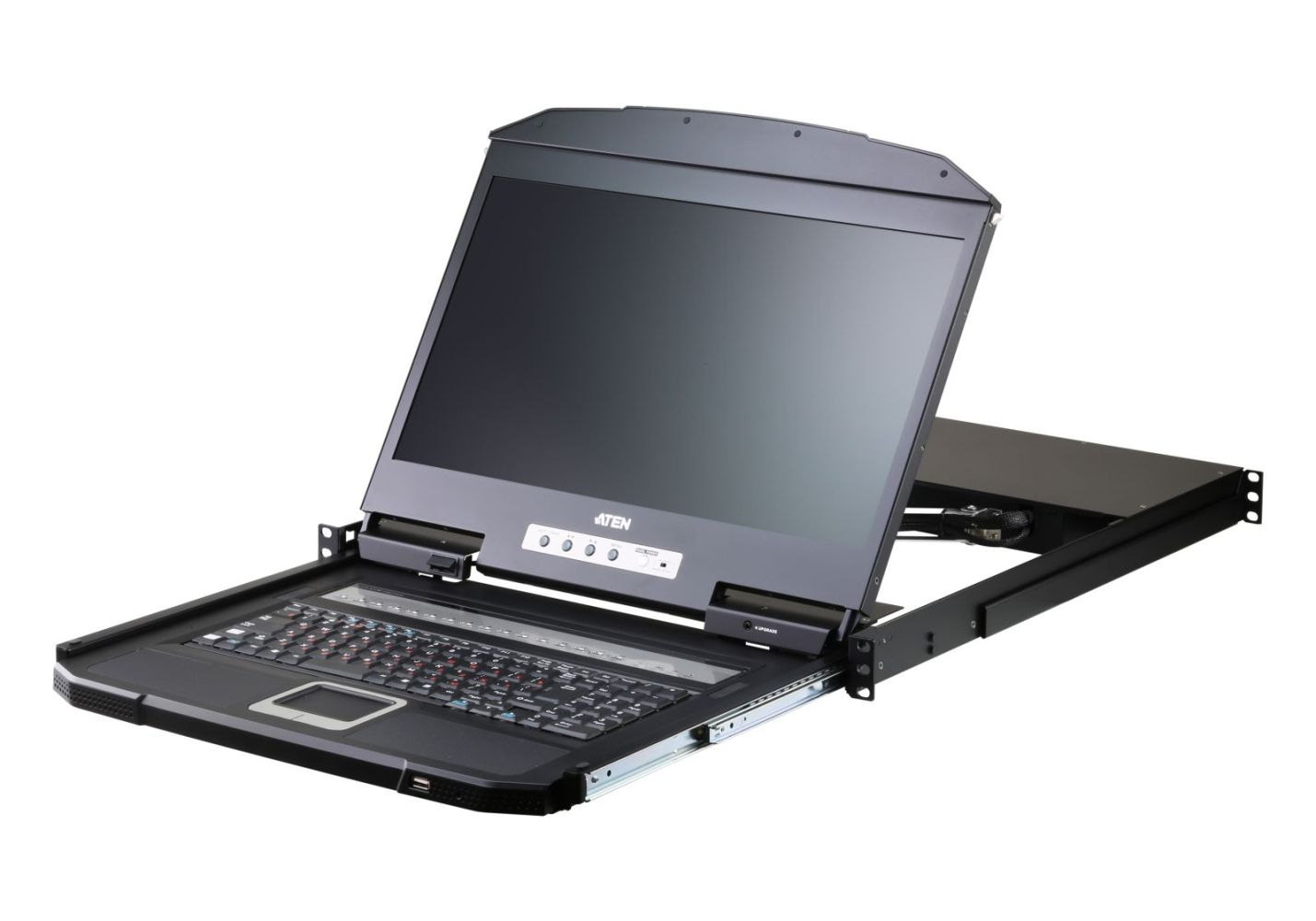

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 47 cm ( 18,5 inch ) LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

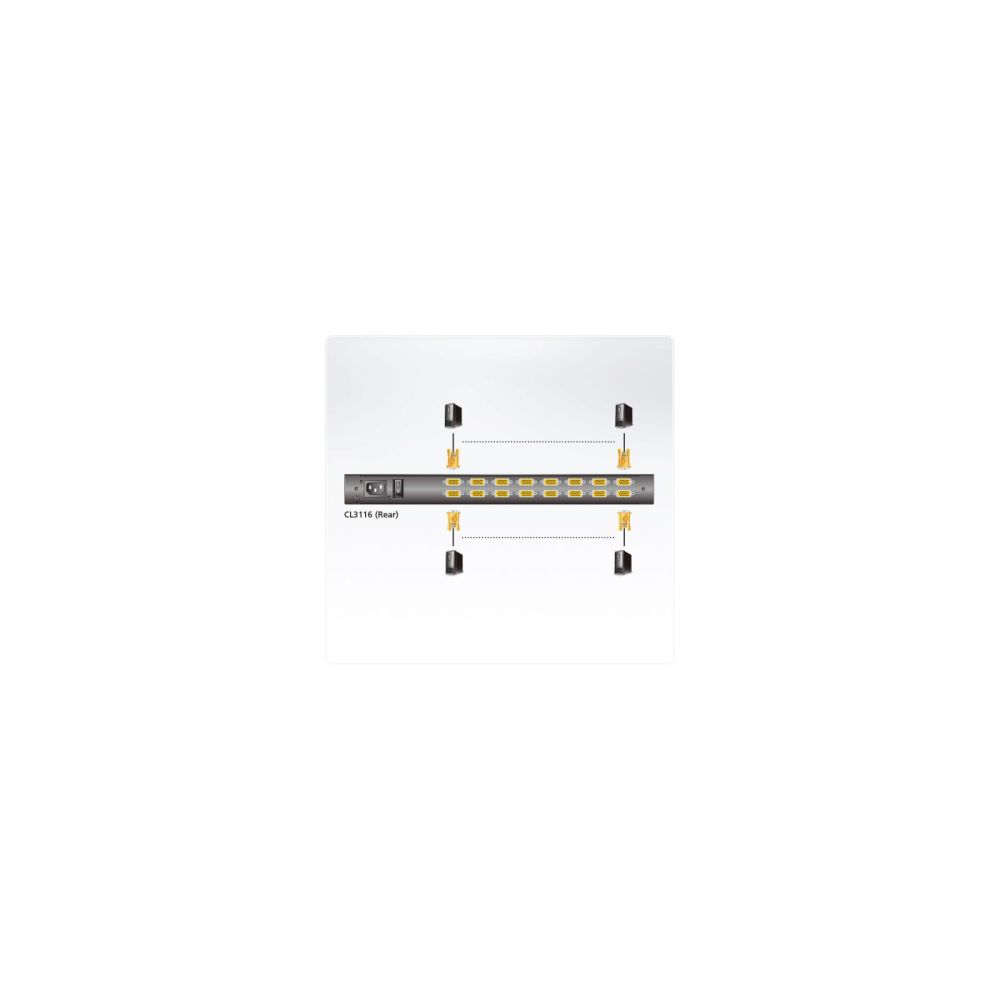

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.
To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.Space Utility OptimizationExclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational VersatilitySuperior video quality - up to 1366 x 768 @60Hz; DDC2B
Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
Two level password security – only authorized users can view and control computers
Auto Scan mode – enables continuous monitoring of user-selected computers
Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Installation FlexibilityStandard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging
*The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.
Package Contents:1x CL3116 LCD KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions
FunctionCL3116NX
Computer Connections
Direct16
Maximum256 (via Cascade)
Port SelectionOSD, Hotkeys, Pushbuttons
Connectors

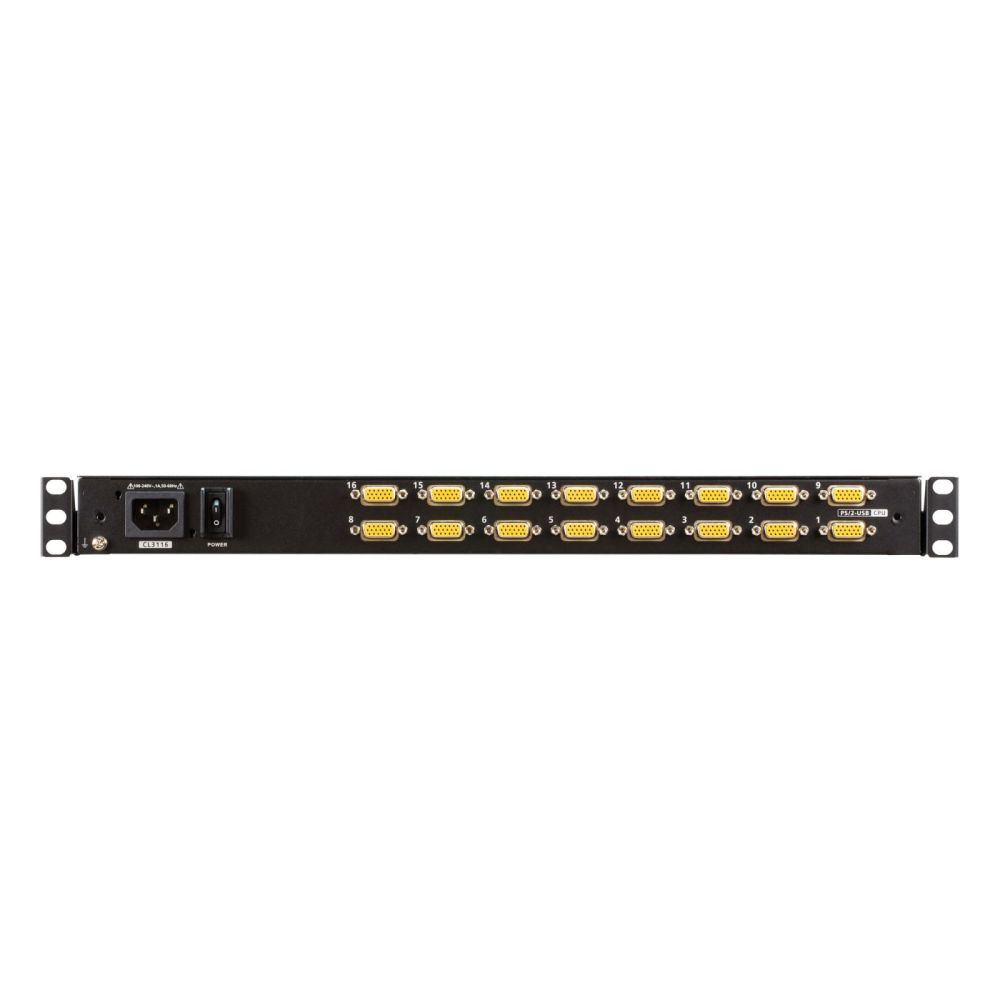

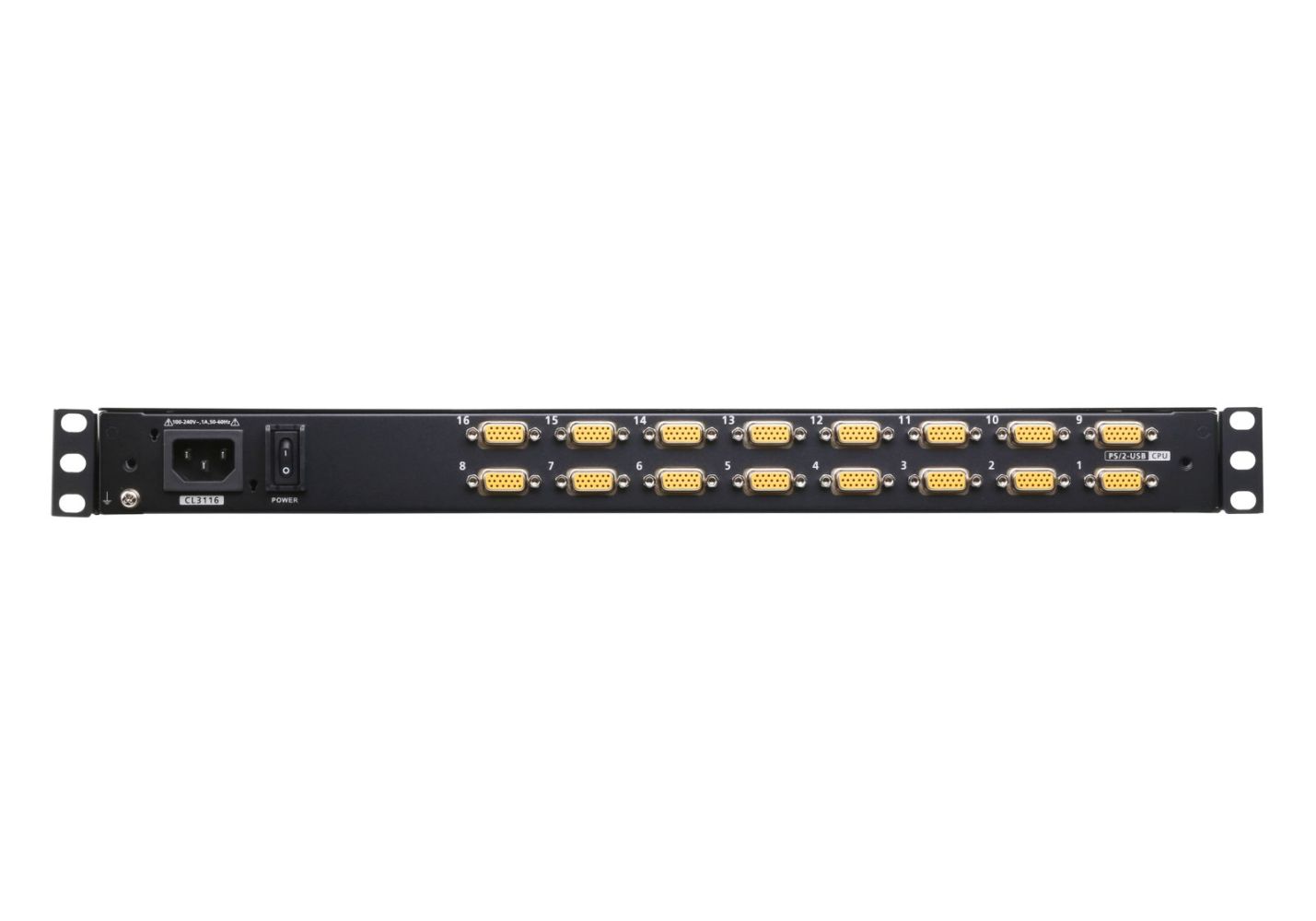

KVM Ports16 x SPHD-18 Female (Yellow)
USB Port1 x USB Type A Female
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)
Power1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton
Power1x Rocker
Firmware Upgrade1 x Slide
LCD Control4 x Pushbutton
LCD On/Off1 x Pushbutton
Ports16 x Pushbutton
LEDs
Online16 (Orange)
Selected16 (Green)
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Emulation
Keyboard / MousePS/2, USB
Video
Input Video Resolution1920 x 1200 @ 60 Hz
Panel Spec
LCD Module47 cm ( 18,5 inch ) TFT-LCD
Resolution1366 x 768 @ 60 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.3 mm x 0.3 mm
Support Color16.7M colors
Contrast Ratio1000 : 1
Luminance250 cd/m²
Scan Interval1-255 seconds
Maximum Input Power Rating100–240 V AC, 50-60 Hz, 1 A
Power ConsumptionAC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Weight10.60 kg ( 23.35 lb )
Dimensions (L x W x H)48.06 x 63.17 x 4.28 cm
(18.92 x 24.87 x 1.69 in.)
Body Dimensions(L x W x H)44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Display
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Display	LCD
Display brightness	450 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.3 x 0.3 mm
Display type	TFT
Response time	5 ms
Supported resolutions	up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz, DDC2B
On Screen Display (OSD)
Keyboard
Keyboard language	UK English
Keyboard layout	QWERTY
Built-in touchpad
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Package type	Box
Quick installation guide
Manual
AC adapter included
Rack mount kit
Ports & interfaces
VGA (D-Sub) ports quantity	1
I/O ports	16x SPHD
Keyboard port type	USB
Mouse port type	USB, PS/2
Video port type	VGA
USB 2.0 Type-A ports quantity	1
3.5 mm (1/8-inch) in
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in
System requirements
Other operating systems supported	SunOS
Windows operating systems supported
Mac operating systems supported
Linux operating systems supported
Technical data
Max. resolution	1920x1200 / 60Hz
Height packaging	0.135m
Screen connectors per console	Without
Type 2	16-fold VGA Single Rail
Audio outputs per console	Without
Resolution integrated display	1366x768
Video inputs per CPU	SPHD female (to VGA) x1
Length packaging	0.718m
Number of consoles	1 (integrated)
Fiber optic network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Keyboard layout	UK (English)
Type 1	KVM Display Console
Weight	13.900kg
Number of CPU	16
Video outputs per console	Without
Packaging volume	0.0647m³
Width packaging	0.668m
Display diagonal	18.5"
Audio per CPU	Without
Peripheral outputs per console	USB x1
TP Network	Without
Extension (daisy chain or cascading)
Audio microphone
Audio loudspeakers
USB peripherals
Technical details
Material	Metal, Plastic
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	16
Maximum resolution	1920 x 1200 pixels
Number of computers controlled	256
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Built-in KVM switch
Rack mounting
On/off switch
LED indicators
Push button
Weight & dimensions
Width	631 mm
Height	42.8 mm
Depth	480.6 mm
Weight	10.6 kg

---
