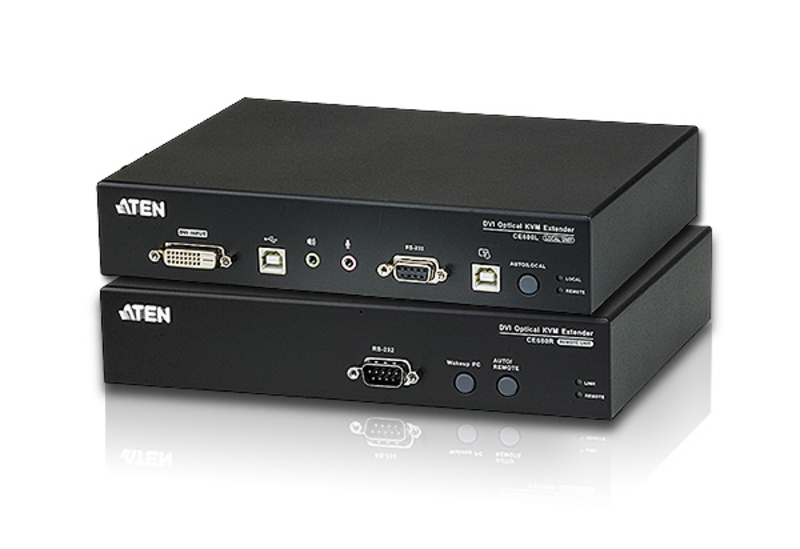

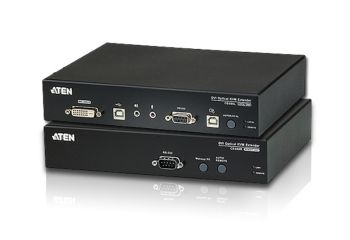

ATEN DVI Optical Fiber KVM Extender (600m) content_copy

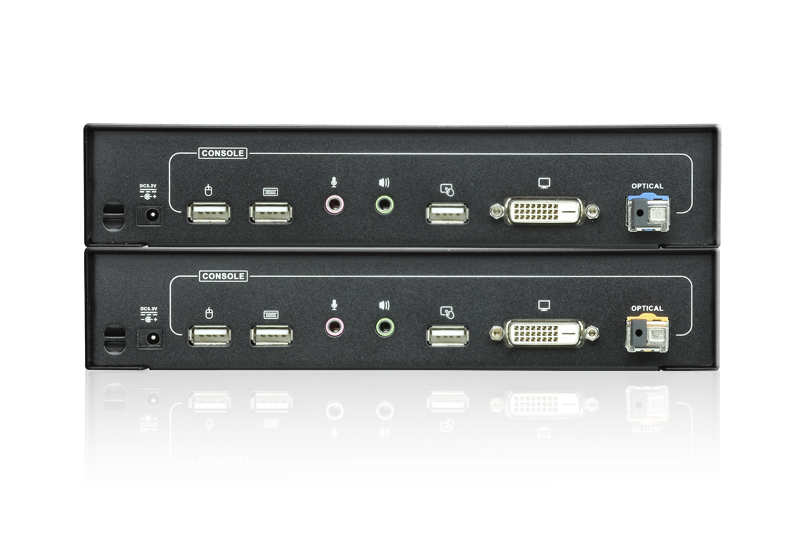

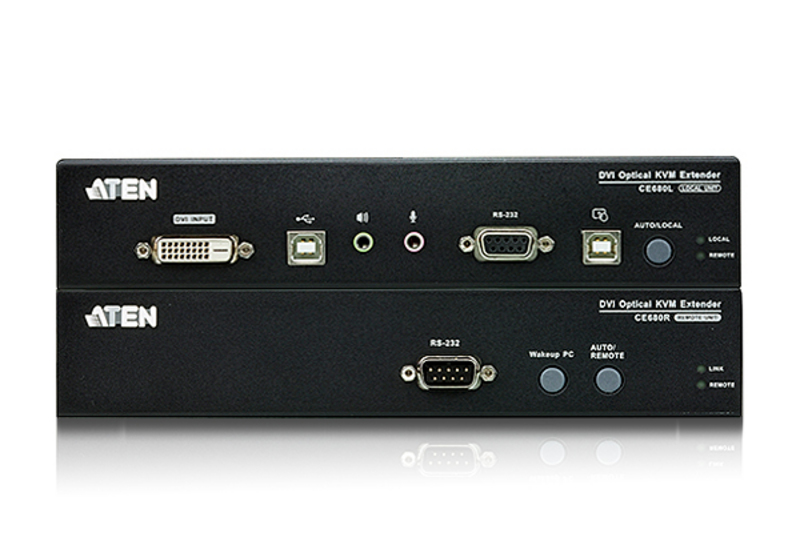

The CE680 is a DVI Optical KVM Extender that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance. It accepts audio-video stream from a local source and serializes the data to pass over a single 3.125 Gbps optical link (for resolutions up to 1920 x 1200 @ 60Hz, 24-bits). It can also extend the keyboard/mouse remote control signals, as well as transfer RS-232 signals (up to 115 kbps) in both directions, allowing you to connect serial devices, such as barcode scanners. A USB port on the local and remote unit?s rear panel lets you connect a USB touchscreen panel device, which can access to a computer connected at the local site. The CE680 allows access to a computer system from both local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of fiber optic cable technology for connecting the local and remote units, providing easy and quick installation and long-range extension of DVI signals. allows access to a computer or KVM installation from a local / remote console
supports DVI-D interface and allows transmission of DVI single-link signals
superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m (via fiber optic cables)
touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
uses one fiber optic cable to connect the local and remote units
HDCP compatible
RS-232 serial port: connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
PC Wakeup support: use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
audio enabled: supports stereo speakers and microphone
rack mountable
package contents: 1x CE680L DVI Optical KVM Extender (Local Unit), 1x CE680R DVI Optical KVM Extender (Remote Unit), 1x 2L-7D02U Custom KVM Cable Set (1.8m), 1x LIN6-04U1-V1CG USB Cable (1.8m), 2x 0AD6-1605-24EG Power Adapters, 1x Mounting Kit, 1x User Instructions

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	600 m
Maximum digital resolution	1920 x 1200 pixels
Supported resolutions	1920 x 1200
Product colour	Black
Material	Metal
LED indicators	Link, Power
Rack mounting
Logistics data
Master (outer) case net weight	2.98 kg
Harmonized System (HS) code	84733080
Master (outer) case width	247 mm
Master (outer) case length	556 mm
Master (outer) case height	153 mm
Master (outer) case gross weight	3.91 kg
Products per master (outer) case	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Manual
Quick installation guide
Packaging data
Package width	247 mm
Package depth	556 mm
Package height	153 mm
Package weight	3.91 kg
Power
AC adapter output voltage	5.3 V
Receiver
Receiver local video port type	DVI-D
Receiver local keyboard/mouse port type	USB
Technical data
Max. distance	600m
Height packaging	0.153m
Width packaging	0.247m
Type 1	KVM Extender
Type 2	DVI Extender Bundle
Packaging volume	0.0210m³
Weight	3.850kg
Length packaging	0.556m
Technical details
Weight	2.98 kg
Transmitter
Transmitter video port type	DVI-D
Transmitter local keyboard/mouse port type	USB
Weight & dimensions
Transmitter width	21.5 cm
Transmitter depth	16.3 cm
Transmitter height	4.18 cm
Transmitter weight	1.1 kg
Receiver width	21.5 cm
Receiver depth	16.3 cm
Receiver height	4.18 cm
Receiver weight	1.1 kg

---
