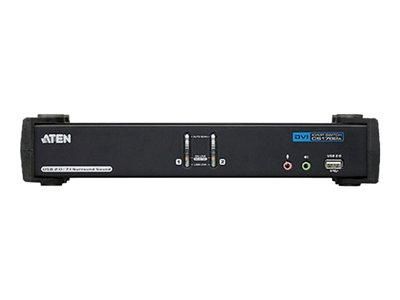

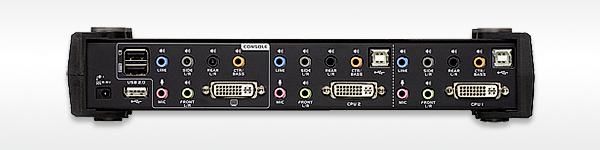

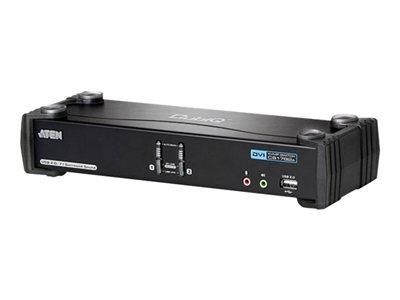

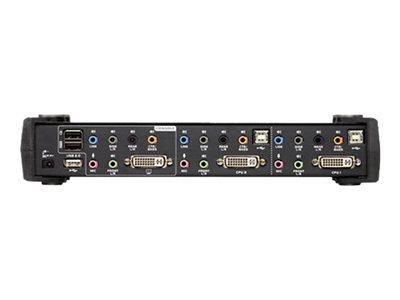

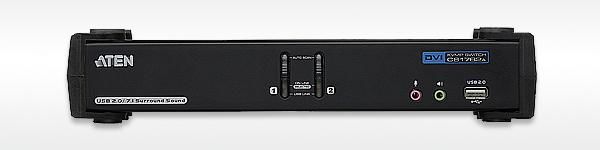

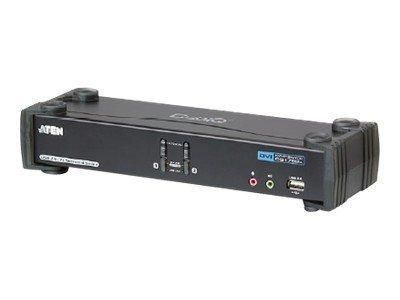

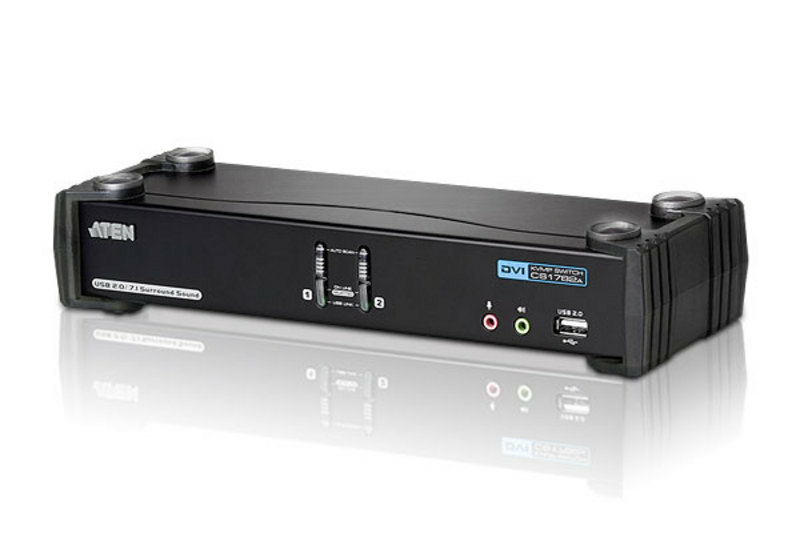

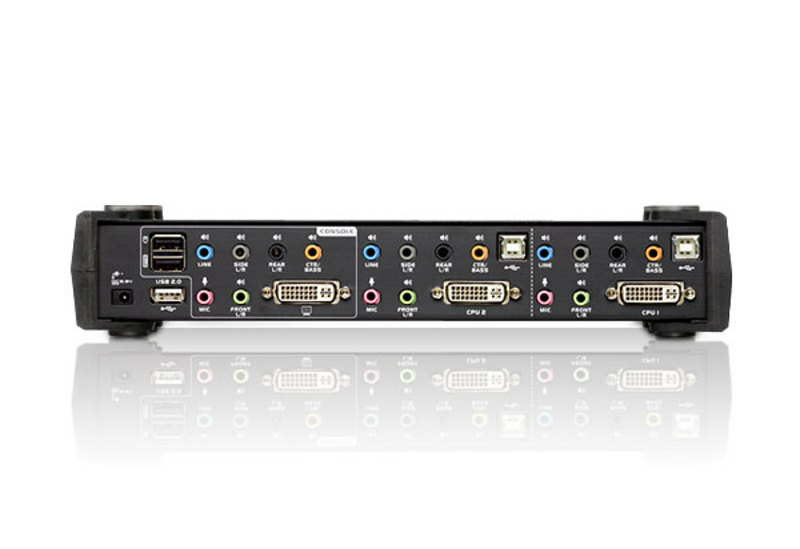

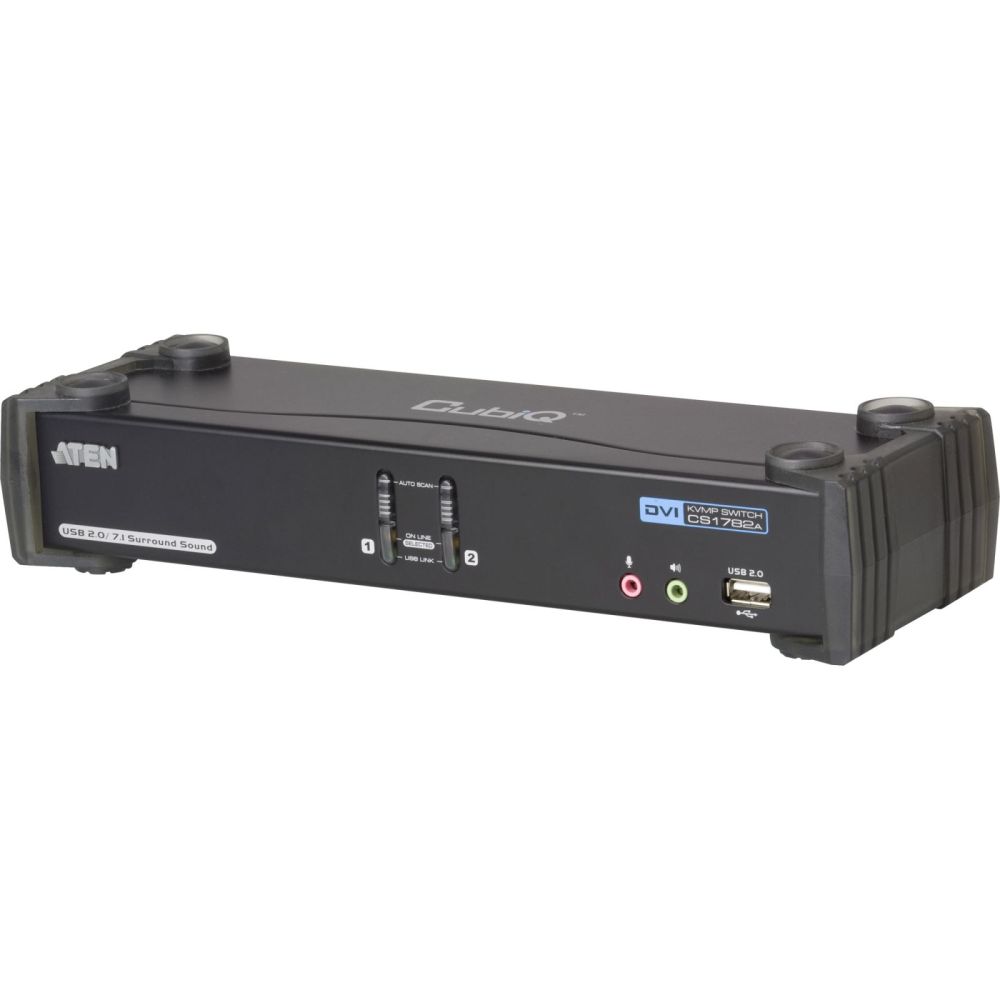

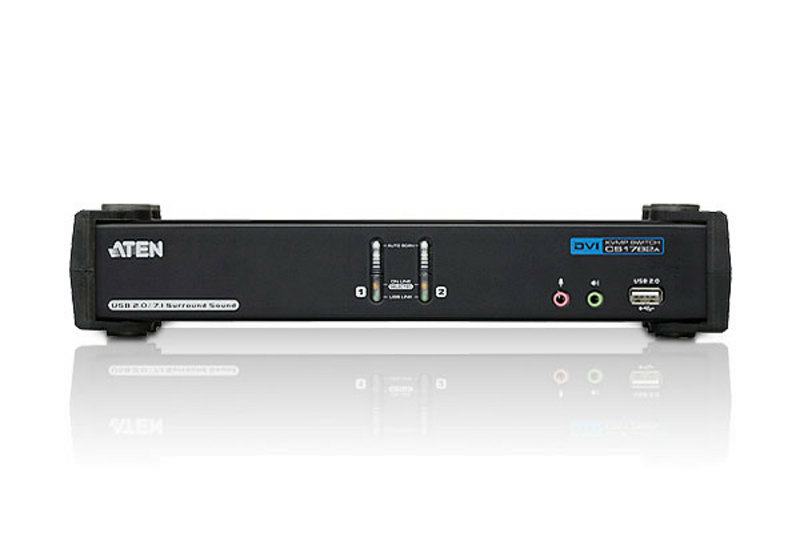

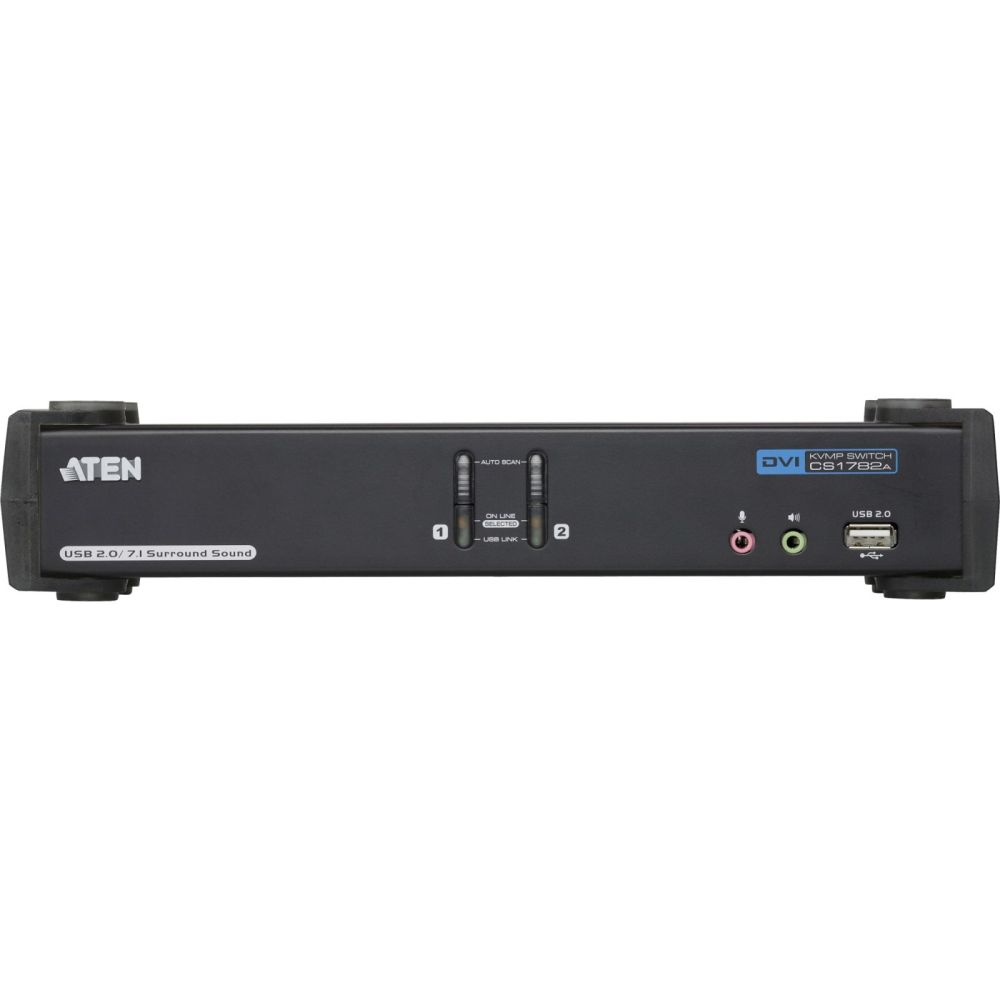

ATEN CubiQ CS1782A - KVM / audio switch - 2 ports - desktop
|
153,33 EUR |
|
|
( 182,46 EUR incl. VAT ) ≈ £128.03 | ≈ $171.88 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 145583 |
| Mfg Part No: | CS1782A |
| UPC/EAN: | 4710423777088 |
| Weight: | 2.13 kg |
Product information for Aten CS1782A:

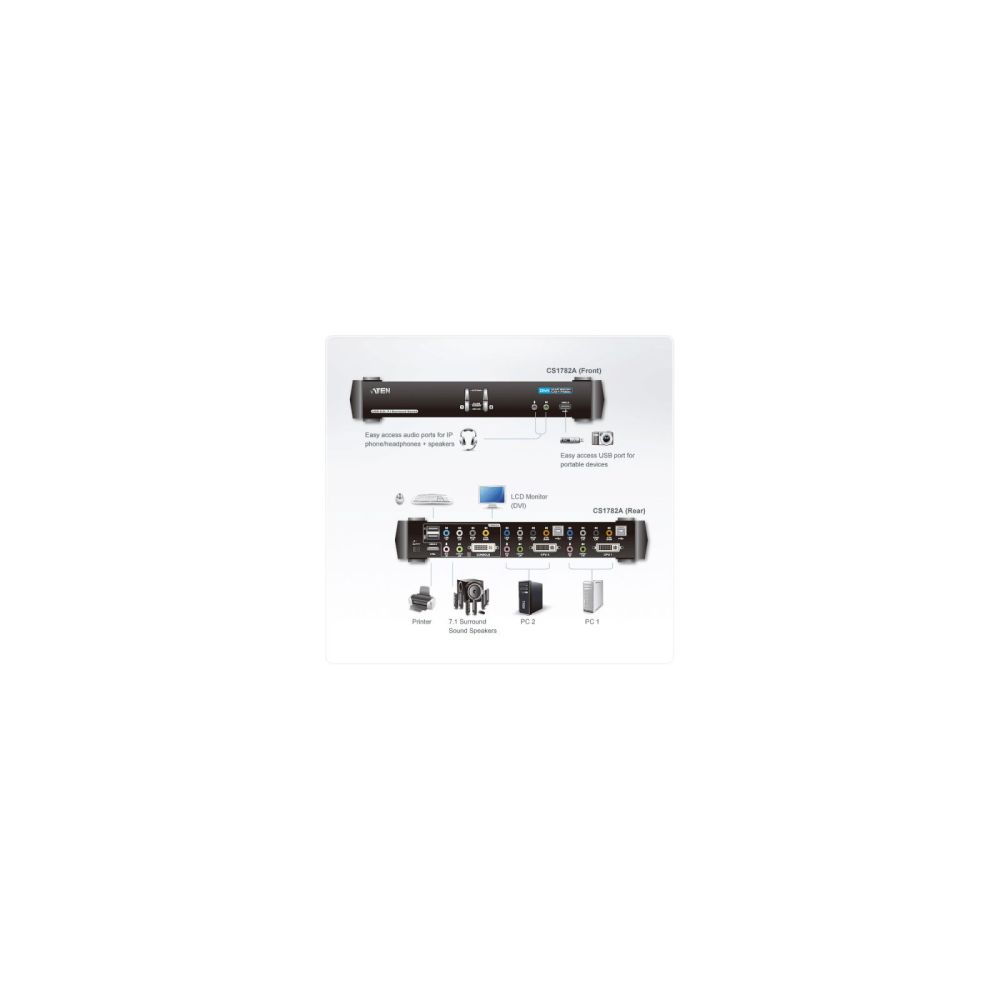

The CS1782A USB DVI Dual Link KVMP Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 9.4 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.12 kg |
| Performance | |
| HD type | WQXGA |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |

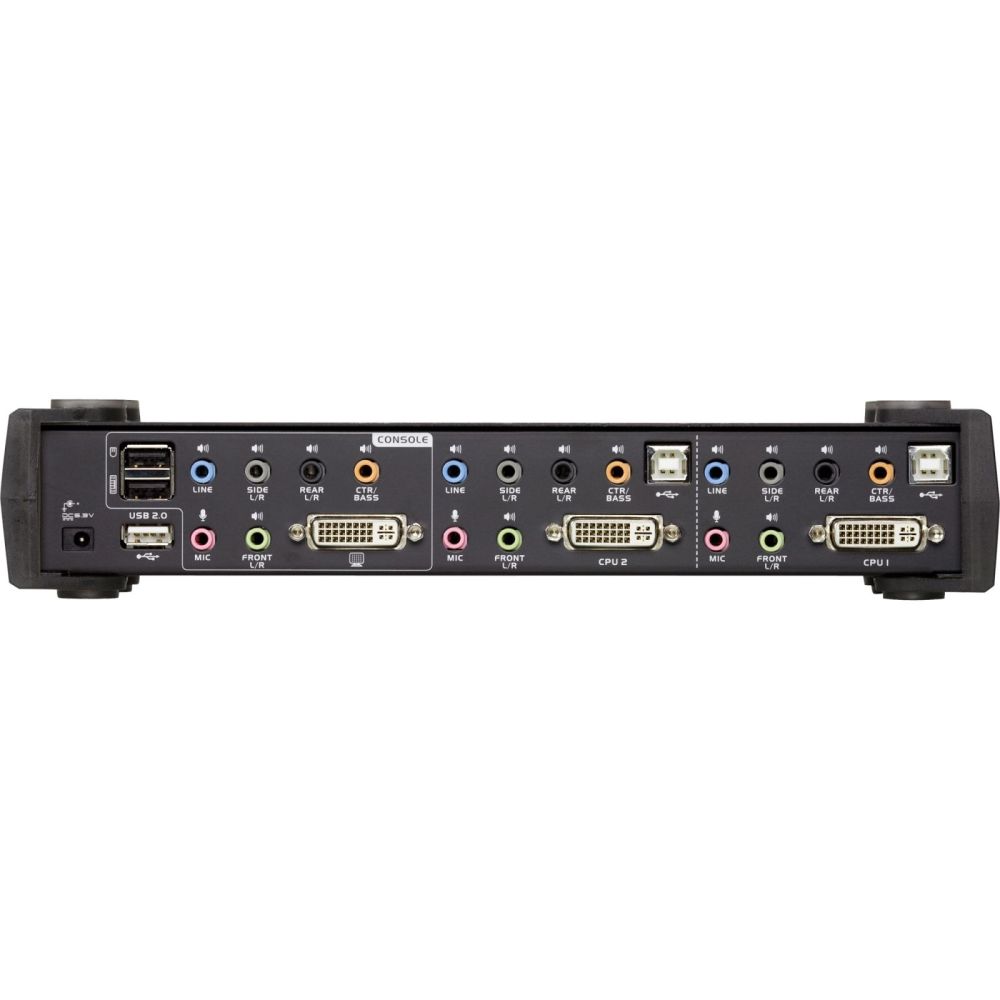

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 3.3 W |
| Technical data | |
| Max. resolution | 2560x1600 / 60Hz |
| Height packaging | 0.210m |
| Number of CPU | 2 |
| Width packaging | 0.098m |
| Type 2 | 2-fold DVI KVM |
| Length packaging | 0.325m |
| USB specification | USB 2.0 |
| Weight | 2.115kg |
| Video inputs per CPU | DVI-D (Dual Link) x1 |
| Design | Desktop |
| Type 1 | KVM switch |
| Packaging volume | 0.0067m³ |
| Data rate | 480Mb/s |
| Front panel buttons | |
| Incl. KVM cableset | |
| USB peripherals | |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.88 kg |
Questions & answers
What is the delivery time of ATEN CubiQ CS1782A - KVM / audio switch - 2 ports - desktop?
The article ATEN CubiQ CS1782A - KVM / audio switch - 2 ports - desktop is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1782A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CubiQ CS1782A - KVM / audio switch - 2 ports - desktop always at the best possible price. We can give you a discount of 2% on ATEN CubiQ CS1782A - KVM / audio switch - 2 ports - desktop if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
