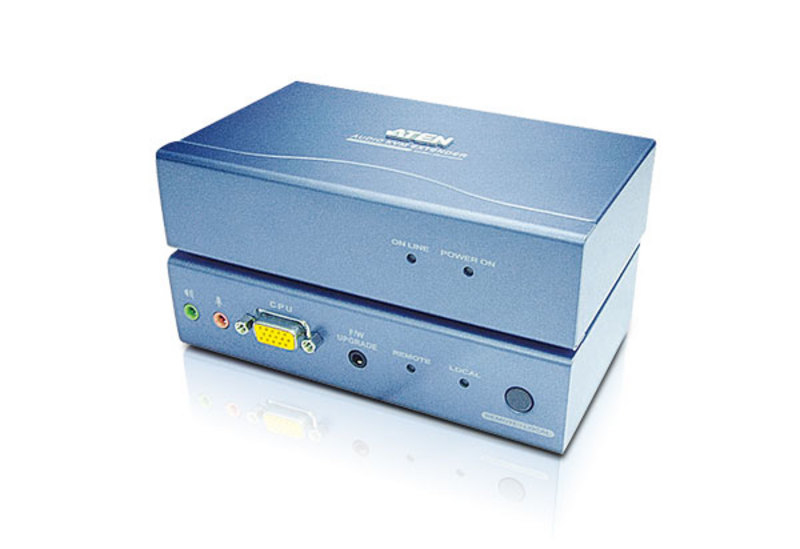

ATEN CE-300L/R - KVM / audio extender content_copy

Audio KVM Extender The CE300 offers Auto Signal Compensation(ASC),and provides conevenient access to your system from a remote keyboard,monitor,and mouse console that can be up to 100m away using.The CE300 uses traditional PS/2 connectors for the console keyboard and mouse. The CE300 is also audio enabled. Fast,reliable,Cat 5 cable is used to make the remote connection. With a high end KVM Extender,sensitive system equipment can reside in a safe,secure,environment,and accessed from a console conveniently located where the work gets done. Features Uses Cat 5 cable to connect the local and remote units(up to 100m apart). Dual Console Operation-control your system form both the local and remote consoles(PS/2 keyboard,mouse, stereo speaker,stereo microphone and monitor). Supports Stereo Speaker and Stereo Microphone. Pushbutton selection -sequential selection between local and auto mode. Automatic Gain Control-automatically adjusts signal strength to compensate for distance. Built-in ASIC for greater reliability and compatibility. High video resolution, up to 1280x1024. Supports DDC2B for local monitor (display data channel for communication between graphic card and monitor). Supports VGA,SVGA,and Multisync Monitors. Firmware upgradable. OS Compatibility:DOS?WIN98?WIN ME?WIN 2K?WIN 2003?WIN XP and LINUX. Package Content 1x Audio KVM Extender (Local Unit) 1x Audio KVM Extender (Remote Unit) 1x CS Custom KVM Cable 1x Rack Mounting Kit 2x Power Adapters 1x Firmware Upgrade Cable 1x User Manual 1x Quick Start Guide Diagram + View enlargement Specification Connectors Console (Local) Keyboard 1 x Mini Din- 6 Female (Purple) Video 1 x HDB-15 Female (Blue) Mouse 1 x Mini Din- 6 Female (Green) Speaker 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Unit to Unit 1 x RJ45 Female (Black) Power 1 x DC Jack (Black) Computers (Local) Keyboard /Mouse 1 x SPHD-15 Female (Yellow) Video Speaker 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Console(Remote) Keyboard 1 x Mini Din- 6 Female (Purple) Video 1 x HDB-15 Female (Blue) Mouse 1 x Mini Din- 6 Female (Green) Speaker 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Unit to Unit 1 x RJ45 Female (Black) Power 1 x DC Jack (Black) Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black) LEDs (Local) Local 1 (Green) Remote 1 (Green) LEDs (Remote) Status 1 (Orange) On Line 1 (Green) Emulation Keyboard PS/2 Mouse Switches Selection Mode 1 x Pushbutton Video 1280 x 1024 Signal Range 100m (838,2 cm ( 330 inch )) Power Consumption DC5.3V, 2.5W (max) Environment Operating Temperature 0 - 50°C Storage Temperature -20 - 60°C Humidity 0~80% RH, NC Physical Properties Housing Metal Weight Local 0.38kg Remote 0.37kg Dimensions Local 13.90 x 8.80 x 3.80 cm Remote 13.90 x 8.80 x 3.80 cm

Packaging content
Manual
Ports & interfaces
PS/2 ports quantity	2
Technical details
Maximum transfer distance	100 m
Product colour	Blue
Compliance certificates	RoHS

---
