APC SUA5000RMI5U Smart-UPS 5000 VA 230 V Rack/Tower

Your rating:
Average rating
product review for APC SUA5000RMI5U Smart-UPS 5000 VA 230 V Rack/Tower
( 4.5 / 5 ) 57 ratings
APC SUA5000RMI5U
This image may differ from the desired article.
APC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5UAPC SUA5000RMI5U
9.082,00 EUR
( 10.807,58 EUR incl. VAT )
≈ £7,565.31  |  ≈ $9,962.95
Delivery time from supplier's stock (ca.) 26 workdaysinfo_outline
In Stock: >25 pieces
1x APC SUA5000RMI5U Smart-UPS 5000 VA 230 V Rack/Tower
Datasheet:file_download Download
Lieske Part No.:965571
Mfg Part No: SUA5000RMI5U
UPC/EAN: 0731304255321
Weight:126 kg
Type:SUA5000RMI5U
Graduated prices net
From piecesPrice per pieces
28.468,97 EUR
47.855,93 EUR
67.242,89 EUR
86.629,86 EUR

Product information for APC SUA5000RMI5U:

The APC Smart-UPS SUA5000RMI5U is a Line-Interactive UPS with an output capacity of 5 kVA and an output power of 4000 W. It provides a sinusoidal output current waveform, which is required for supplying sensitive IT and network equipment. The device is designed in a Rackmount/Tower form factor and occupies a rack capacity of 5U, allowing it to be used both in server racks and as a freestanding unit. The nominal output voltage is 230 V, and the output voltage is regulated within the range of 220 V to 240 V to ensure stable power supply. The input voltage ranges from 151 V to 302 V, enabling high tolerance to voltage fluctuations in the public grid. The Automatic Voltage Regulation ensures that connected devices are supplied with constant voltage even during minor grid voltage deviations. The efficiency of the device is 96 %, ensuring energy-efficient operation. The noise level is 53 dB, which is acceptable for professional use in offices or server rooms.

Applications

The Smart-UPS SUA5000RMI5U is designed for use in business-critical environments, particularly for servers, voice and data networks, Point-of-Sale systems, back-office hardware in retail and banking, and cash dispensers. The high real power and sinusoidal output waveform make it especially suitable for IT infrastructures requiring stable and disturbance-free power supply. The Hot-Swap Battery feature allows batteries to be replaced without interrupting power supply, increasing the availability of connected systems.

Features and Equipment in Detail

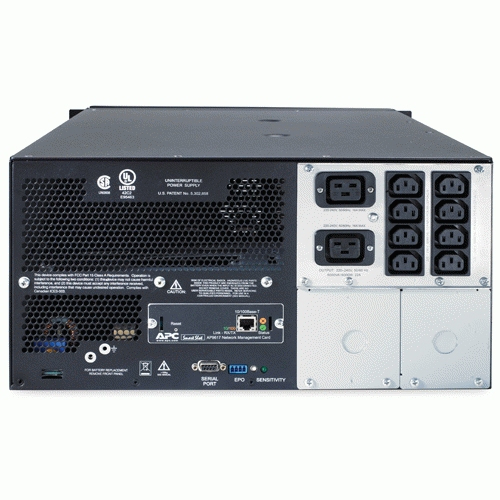

The device features 10 AC outlets, consisting of 8 C13 and 2 C19 connectors, suitable for powering various IT devices. The battery capacity is 1632 VAh, with a typical backup time of 9.4 minutes at full load and 26.7 minutes at half load. The battery recharge time is 3 hours. The automatic battery test regularly checks battery function to enable early detection of wear or defects. The cold start function allows the device to operate without grid connection, which is useful in emergencies or during installation. The auto-restart function ensures the device automatically resumes operation after a power interruption.

Technology Explained Simply

The Line-Interactive topology means that the UPS is supplied directly from the grid during normal operation, but immediately switches to internal battery power during voltage fluctuations or power outages. The sinusoidal output waveform is crucial for compatibility with sensitive devices such as servers or network switches, as it causes no interference or damage. The Automatic Voltage Regulation adjusts the output voltage to compensate for minor grid fluctuations without activating the battery. The Hot-Swap Battery feature allows batteries to be replaced without shutting down the UPS, which is important for continuous operational readiness.

Compatibility and Accessories

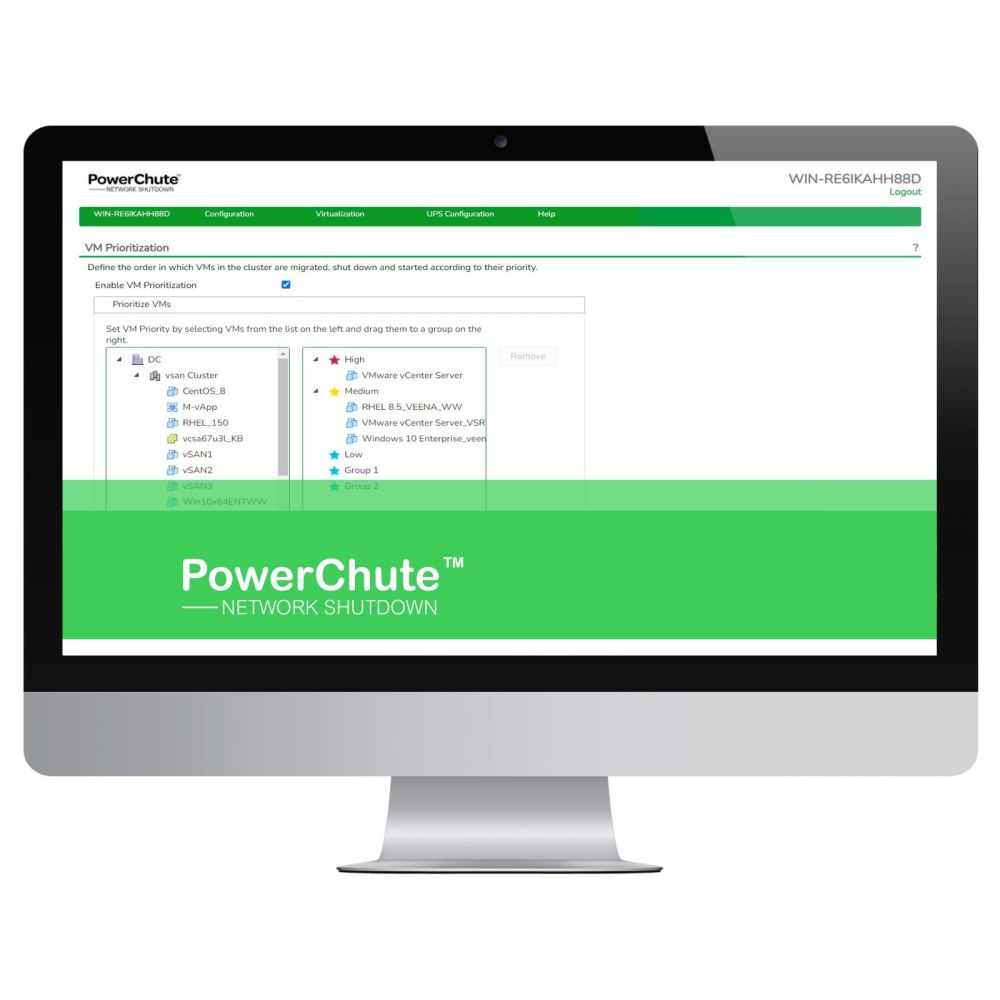

To extend functionality, the SmartSlot is available, into which optional management cards can be inserted. The included management card enables remote monitoring and control over the network. The PowerChute Network Shutdown software, which works with the management card, enables controlled shutdown of connected systems during power failure to prevent data loss and hardware damage. Suitable accessories include replacement batteries (e.g. RBC55) and rack PDUs (e.g. AP7922B, AP8853), which optimize power distribution in the rack.

Installation and Mounting

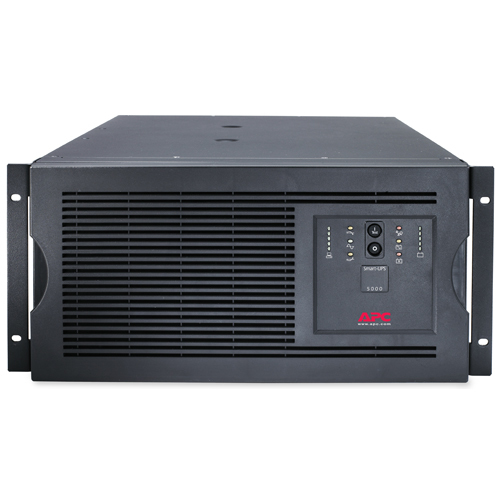

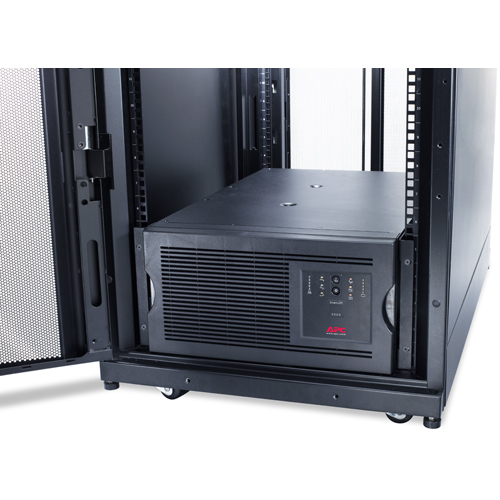

The Smart-UPS SUA5000RMI5U is designed for installation in 48,3 cm ( 19 inch ) racks and is delivered with a rack mounting kit enabling installation in a four-post rack. Mounting is performed using the included rack mounting brackets and screws. The device can also be operated as a freestanding unit (Tower). The operating temperature ranges from 0 °C to 40 °C, and the storage temperature from -15 °C to 45 °C. The relative humidity during operation is 0 to 95 %, non-condensing. The maximum operating altitude is 9000 m, and the storage altitude is 15000 m.

Operational Advantages

The Hot-Swap Battery feature reduces downtime, as batteries can be replaced without interrupting operation. The automatic voltage regulation and sinusoidal output waveform ensure high-quality power supply. The PowerChute software enables controlled shutdown of IT systems, preventing data loss. Remote monitoring over the network (SNMP) enables centralized management and diagnostics of the UPS. The 96 % efficiency reduces energy consumption during operation. The overpressure protection function protects the device against overloads. The LED indicator for battery replacement informs the operator about the battery condition.

Scope of Delivery

The device is delivered with a rack mounting kit, an RS-232 cable, a management card, an operating manual, a quick installation guide, and a software CD. The software CD contains the PowerChute Network Shutdown software and documentation. The management card enables network integration and remote monitoring. The delivery also includes the necessary mounting screws and brackets for rack installation.

Certifications

The Smart-UPS SUA5000RMI5U complies with standards EN 50091-1, EN 50091-2, CE, C-tick, GOST, GS Mark, VDE, REACH, PEP, EOLI, and is RoHS-compliant. These certifications guarantee the safety, reliability, and environmental compatibility of the device.

Battery and Lifespan

The battery lifespan is up to 5 years. The batteries are valve-regulated lead-acid (VRLA) types and are maintenance-free. The automatic battery test function regularly checks the battery condition to enable early detection of wear or defects. The Hot-Swap function allows batteries to be replaced without interrupting power supply.

Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity1632 VAh

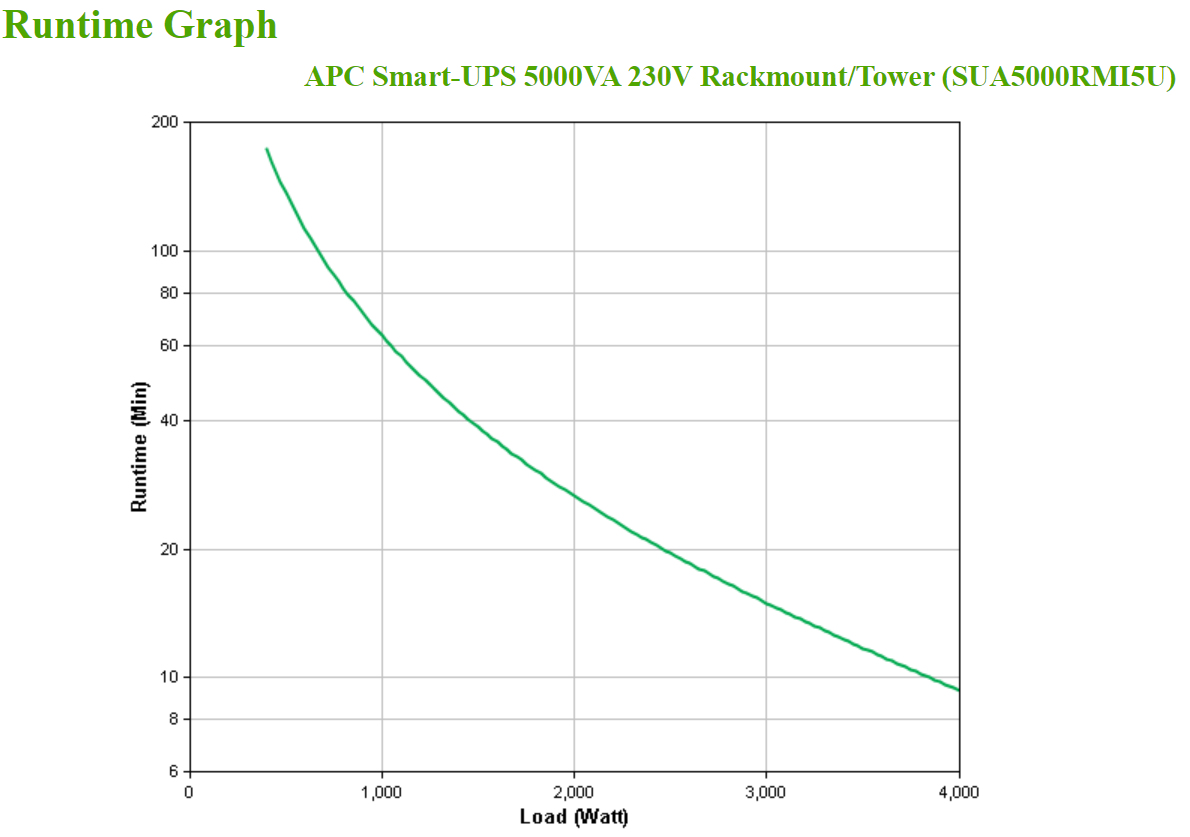

Typical backup time at full load9.4 min
Typical backup time at half load26.7 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Certificates
Compliance certificatesRoHS
CertificationC-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Design

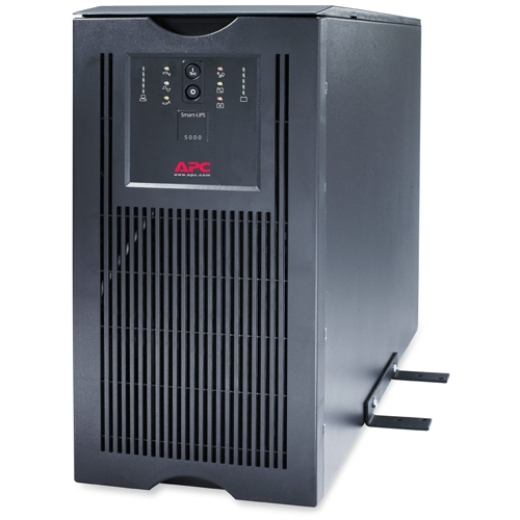

Form factorRackmount/Tower
Rack capacity5U
Product colourBlack
LED indicatorsBattery replacement
Features
UPS topologyLine-Interactive
Output power capacity5 kVA
Output power4000 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency regulation47 - 53 Hz
Surge energy rating480 J
Hold time (min)2 ms
Hold time (max)4 ms
Number of output phases1
Efficiency96%
Noise level53 dB
Automatic Voltage Regulation (AVR)Yes
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes
Logistics data
Products per pallet4 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)4487.43
Products per master (outer) case1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 9000 m
Non-operating altitude0 - 15000 m
Other features
Nominal output voltage230 V
Nominal input voltage230 V
Packaging contentWeb/SNMP Management Card
Packaging content
Cables includedRS-232
Rack mount kitYes
Management card includedYes
ManualYes
Quick installation guideYes
Packaging data
Package width610 mm
Package depth762 mm
Package height635 mm
Package weight106.8 kg
Software CDYes
Ports & interfaces
AC outlet typesC13 coupler, C19 coupler
Power plugHard Wire 3-wire
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers4
SmartSlotYes
SmartConnect portNo
Weight & dimensions
Width483 mm
Depth660 mm
Height222 mm
Weight97.7 kg
