APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19

Your rating:
Average rating
product review for APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19
( 4.3 / 5 ) 4 ratings
APC AP8958
This image may differ from the desired article.
APC AP8958APC AP8958
2.333,20 EUR
( 2.776,51 EUR incl. VAT )
≈ £1,943.56  |  ≈ $2,559.52
plus delivery charges: 55,00 €
Made to order · Expected to be available from 03.12.2026info_outline
1x APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19
Datasheet:file_download Download
Lieske Part No.:987470
Mfg Part No: AP8958
UPC/EAN: 0731304277101
Weight:4.82 kg
Type:AP8958
Graduated prices net
From piecesPrice per pieces
22.175,71 EUR
42.018,22 EUR
61.860,73 EUR
81.703,24 EUR

Product information for APC AP8958:

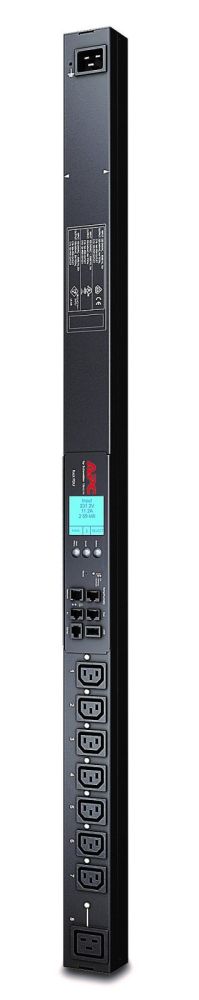

The APC Rack Power Distribution Unit (PDU) type AP8958 is a 0U switched PDU for use in 19-inch racks. It serves central power distribution and control in IT infrastructures and enables individual control and monitoring of eight AC outputs. The unit is designed for vertical mounting and operates at a nominal voltage of 230 V with a maximum current of 16 A. The total power is 3680 W, equivalent to a load capacity of 3680 VA. The PDU is equipped with seven C13 connectors and one C19 connector, making it suitable for a wide range of IT and network devices.

Applications

The PDU is designed for use in data centers, server rooms, and other IT environments where precise control and monitoring of power supply are required. It helps prevent issues such as unauthorized use of power outlets, power surges, overloads, and system crashes. Remote control of outputs allows reboot procedures to be performed and power supply to critical systems to be prioritized.

Functions and Equipment in Detail

The PDU offers comprehensive control of power supply. Each of the eight outputs can be individually switched on, switched off, cycled, or reset. Output control allows access to individual outputs to be locked, preventing unauthorized use. Adjustable delay times for switching on and off enable a defined sequence for powering on and off connected devices. This reduces power surges that could lead to overloads. The power supply is continuously monitored, measuring current, power, and voltage. User-defined alarms warn of potential overloads before failures occur.

Technology Explained Simply

The PDU is designed as a measuring device and captures real-time data on power consumption. Monitoring is performed both locally via a digital display and remotely via network protocols. Power measurement enables precise load distribution and helps extend the operational life of critical systems through prioritization. The unit is designed for a maximum total current draw of 16 A per phase, ensuring safe use in standardized IT environments. Vertical mounting and compact design (height 988 mm, width 56 mm, depth 46 mm) allow flexible placement in the rack.

Compatibility and Accessories

The PDU is equipped with C13 and C19 connectors, which are standard for most servers, network devices, and other IT equipment. Control is performed via secure web, SNMP, or Telnet interfaces. Integration with APC management platforms such as InfraStruxure Central, Capacity Manager, and Change Manager is possible, supporting centralized management of IT infrastructure. A port for temperature and humidity sensors is also available to capture additional environmental data.

Mounting and Installation

The PDU is designed for vertical mounting in 19-inch racks. Mounting requires no additional tools; the unit is simply inserted and secured in the rack. Installation requires no special prerequisites other than a suitable network connection and a 230 V power supply. Configuration is performed via network interfaces, with settings adjustable through web interface, SNMP, or Telnet.

Advantages in Operation

The PDU enables efficient load distribution and reduces the risk of power surges and overloads. Remote control of outputs supports maintenance and reboot procedures without requiring physical access to devices. Real-time monitoring of power parameters helps detect and prevent potential issues early. Integration with existing management systems facilitates centralized control and monitoring of IT infrastructure. The robust construction and compact form factor ensure a reliable and space-saving solution in rack systems.

Design
PDU typesMetered, Switched
Rack capacity0U
MountingVertical
Logistics data
Total carbon footprint (kg of CO2e)1302.31
Management features
MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Ports & interfaces
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage230 V
Maximum current16 A
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Weight & dimensions
Width56 mm
Depth46 mm
Height988 mm
Weight3.23 kg


Product data sheet
Datasheet for APC AP8958, EAN: 0731304277101

Questions & answers

What is the delivery time of APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19?

The article APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 22 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC AP8958 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19 always at the best possible price. We can give you a discount of 2% on APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of APC AP8958 0 U Rack-PDU with switching function, 7x IEC C13, 1x IEC C19 we can offer you a price of 2.175,71 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
