APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V

Your rating:
Average rating
product review for APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V
( 0 / 5 ) 0 ratings

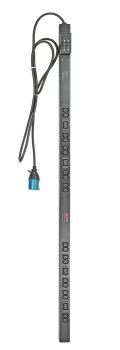

APC AP7553
This image may differ from the desired article.
791,35 EUR
( 941,71 EUR incl. VAT )
≈ £659.19  |  ≈ $868.11
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 19 workdaysinfo_outline
In Stock: >10 pieces
1x APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V
Datasheet:file_download Download
Lieske Part No.:169374
Mfg Part No: AP7553
UPC/EAN: 0731304225515
Weight:9.28 kg
Type:AP7553
Graduated prices net
From piecesPrice per pieces
3737,93 EUR
6684,52 EUR
9631,10 EUR
12577,69 EUR

Product information for APC AP7553:

The APC Rack PDU, type AP7553, is a Rack-PDU (Power Distribution Unit) in Basic design for power supply of rack-mounted systems. It is a single-phase PDU with 0U rack capacity, mounted vertically and thus does not occupy vertical space in the rack. The PDU is finished in black and features a cable length of 3050 m, indicating a very long power supply cable suitable for large installations or special installation scenarios.

Applications
This PDU is designed for power distribution in server racks and IT infrastructures, particularly in environments where simple, reliable power supply without additional control functions is sufficient. It is suitable for powering IT devices, network switches, servers, and other rack-mounted systems connected via standardized sockets. The vertical mounting allows flexible placement in the rack, especially in the rear area of NetShelter VX enclosures, with tool-free installation.

Functions and Equipment in Detail
The PDU features a total of 24 AC outlets, distributed as 20 IEC 320 C13 sockets and 4 IEC 320 C19 sockets. These socket types are standard in IT and server technology and enable connectivity to a wide range of devices. The input is via an IEC 60309 plug (32A), ensuring secure and robust power supply. The outputs deliver a nominal voltage of 230 V, matching the standard mains voltage in Europe.

Technology Explained Simply
The PDU is designed for a maximum load capacity of 7680 VA, equivalent to a maximum power of 7680 W. The maximum input current is 32 A per phase, enabling power supply for medium-sized IT loads. The operating temperature ranges from -25 °C to 65 °C, ensuring suitability for various environments, including climate-controlled server rooms and industrial facilities. The relative humidity during operation can reach up to 95 %, indicating high tolerance to humid environments.

Compatibility and Accessories
The PDU is compatible with rack systems supporting vertical mounting in the rear area, especially with NetShelter VX enclosures. The use of IEC 320 C13 and C19 sockets ensures connectivity to common IT devices. The PDU is part of the APC Basic Rack PDU family and can be used in combination with other APC rack systems to ensure consistent power supply in the infrastructure.

Mounting and Installation
Mounting is vertical and tool-free, simplifying installation in the rack and saving time. The PDU is designed for use in the rear area of rack enclosures, freeing up space in the front area for other devices. The cable length of 3050 m allows flexible positioning of the input plug, with the exact length varying depending on the application during operation.

Operational Advantages
The PDU provides reliable and simple power distribution without additional control functions. The tool-free mounting and vertical orientation simplify installation and maintenance. The high number of sockets (24) enables powering multiple devices from a single power connection, keeping cabling in the rack structured and clear. The robust construction and wide operating temperature range make the PDU suitable for various application scenarios.

Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
Features
Cable length3050 m
Operational conditions
Operating temperature (T-T)-25 - 65 °C
Storage temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Packaging data
Package weight6.48 kg
Package width152 mm
Package depth127 mm
Package height2134 mm
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
I/O ports(20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
Input connection typeIEC 309 32A
Output connections(20) IEC 320 C13 (4) IEC 320 C19
Power
Nominal input voltage230 V
Nominal output voltage230 V
Output voltage230 V
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power7680 W
Weight & dimensions
Width56 mm
Depth44 mm
Height1619 mm
Weight5.57 kg


Product data sheet
Datasheet for APC AP7553, EAN: 0731304225515

Questions & answers

What is the delivery time of APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V?

The article APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V is currently in stock

According to our experience the article is ready for dispatch within 19 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of APC AP7553 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V always at the best possible price. We can give you a discount of 2% on APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of APC AP7553 0 U Rack-PDU Basic 20xIEC C13 + 4xIEC C19 32A/230V we can offer you a price of 737,93 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
