APC Basic Rack PDU Rack AC 100-240 V input IEC 60320 C20 output connections 14x power IEC 60320 C13

Your rating:
Average rating
product review for APC Basic Rack PDU Rack AC 100-240 V input IEC 60320 C20 output connections 14x power IEC 60320 C13
( 4.8 / 5 ) 4 ratings

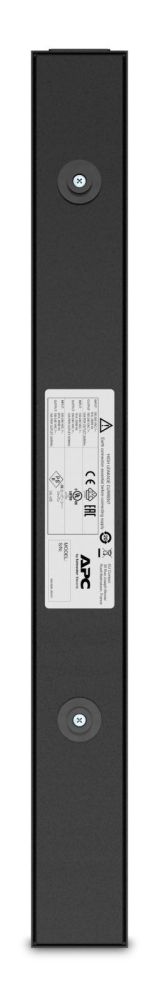

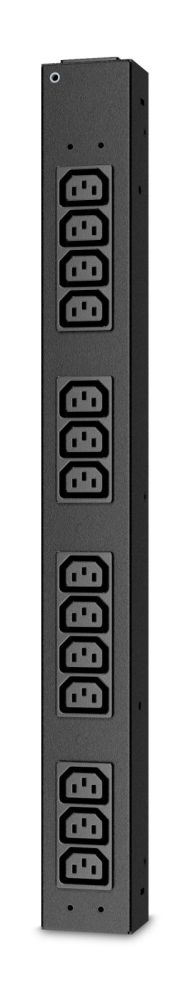

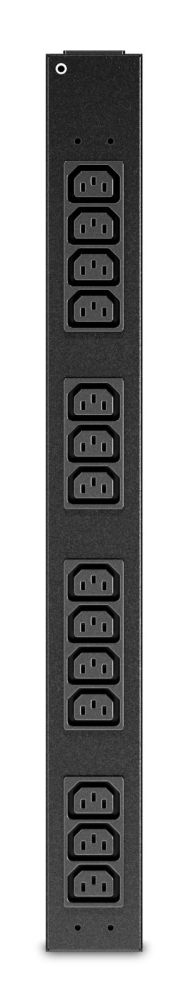

APC AP6003A
This image may differ from the desired article.
APC AP6003AAPC AP6003AAPC AP6003AAPC AP6003A
227,99 EUR
( 271,31 EUR incl. VAT )
≈ £189.92  |  ≈ $250.11
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x APC Basic Rack PDU Rack AC 100-240 V input IEC 60320 C20 output connections 14x power IEC 60320 C13
Datasheet:file_download Download
Lieske Part No.:1001595
Mfg Part No: AP6003A
UPC/EAN: 0731304327769
Weight:1.996 kg
Type:ACCS

Product information for APC AP6003A:

The APC Basic Rack PDU AP6003A is a power distribution unit for installation in server or network racks. It is designed for distributing electrical power to multiple devices within a rack and is intended for use in IT infrastructures, data centers, or server rooms. The device features a single-phase power input and is configured as a standard PDU, with a height specified as 0U/2U. Mounting can be done both horizontally and vertically, enabling flexible installation in various rack layouts. The product color is black, allowing for discreet integration into typical server environments.

Applications

The PDU is designed for use in professional IT environments where reliable power supply to multiple devices from a central input is required. It is particularly suitable for racks containing servers, network equipment, storage solutions, or other IT components that connect via standard C13 outlets. The operating temperature range of 0 to 50 °C and the storage temperature range of -15 to 65 °C allow use in a wide variety of environments, including rooms with controlled climate. The relative humidity during operation is 0 to 95 %, non-condensing, ensuring safe installation in standard server rooms. The maximum operating altitude is 3000 m above sea level, permitting use at higher elevations.

Functions and Features in Detail

The APC AP6003A features 14 AC outputs in the form of C13 connectors, designed for compatibility with standard IT devices. The nominal input voltage is 230 V, with the PDU supporting an input voltage range of 100 to 240 V AC. The input frequency is between 50 and 60 Hz, enabling global usability. The maximum current is 20 A, with a maximum total current draw per phase of 16 A. The load capacity is specified as 3680 VA, equivalent to a maximum power of 3680 W. The output voltage is also within the 100 to 240 V range, ensuring stable operation even with fluctuating line voltages.

Technology Explained Simply

The PDU functions as a power distributor, routing electrical power from a central source (e.g., a power supply or UPS) to multiple end devices. The use of C13 outlets ensures compatibility with most IT and network equipment. Single-phase technology is common for standard networks and is sufficient for most server and network environments. The maximum current per phase of 16 A (cULus) or 20 A (PSE) ensures adequate capacity for multiple devices. The dimensions are 523 mm (height) × 56 mm (width) × 47 mm (depth), representing a compact form factor for half-rack height. The weight is 1.88 kg, enabling easy handling and installation.

Compatibility and Accessories

The PDU is equipped with an IEC-320 C20 input, which connects to a separate power cord. The outputs are configured as C13 connectors, universally compatible with IT devices. The PDU is designed for use in racks with a height of 0U/2U, allowing installation in standard 19-inch racks. The certifications include cUL, UL, REACH, and RoHS, confirming compliance with international safety and environmental standards. The PDU is therefore suitable for use in many countries, particularly in regions recognizing UL and RoHS standards.

Installation and Mounting

Mounting is done via horizontal or vertical attachment within the rack. The 0U/2U height allows flexible placement, with the PDU either directly hung into the rack frame or mounted on the rear panel. Connection to the power supply is made via a separate power cord with a C20 plug, connected to the PDU. Installation requires no special tools, as mounting is done using standard screws. The PDU is designed for use in racks with a depth of at least 47 mm.

Operational Advantages

The APC AP6003A provides reliable power distribution for multiple devices from a single input. The 14 C13 outputs enable simultaneous power supply to multiple IT components, reducing the number of required power cords. The global voltage compatibility of 100 to 240 V AC and support for 50/60 Hz frequency allow use in various countries. The certifications such as UL, cUL, and RoHS guarantee safe and environmentally compliant operation. The compact design and the option for horizontal and vertical mounting increase flexibility during installation in existing rack systems. The PDU is thus a robust and universally applicable solution for power supply in IT infrastructures.

Certificates
Compliance certificatesRoHS
CertificationcUL, UL, REACH
Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U/2U
MountingHorizontal/Vertical
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Packaging data
Package weight2.55 kg
Package width123 mm
Package depth107 mm
Package height612 mm
Ports & interfaces
AC outlets quantity14 AC outlet(s)
Power plugC20 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C20
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current20 A
Nominal output voltage100-240 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Weight & dimensions
Width56 mm
Depth47 mm
Height523 mm
Weight1.88 kg


Product data sheet
Datasheet for APC AP6003A, EAN: 0731304327769
