ALLNET RA007-A8
Radxa e.g. with 2 WiFi 6 and BT5.2 wireless modules A8
|
-7% 11,82 EUR 12,74 EUR |
|
|
( 14,07 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1782254 |
|---|---|
| Mfg Part No: | RA007-A8 |
| UPC/EAN: | 4038816183927 |
| Weight: | 0.02 kg |
Product information for ALLNET RA007-A8:

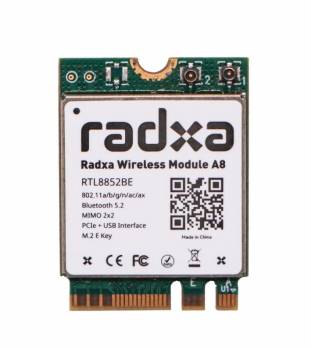

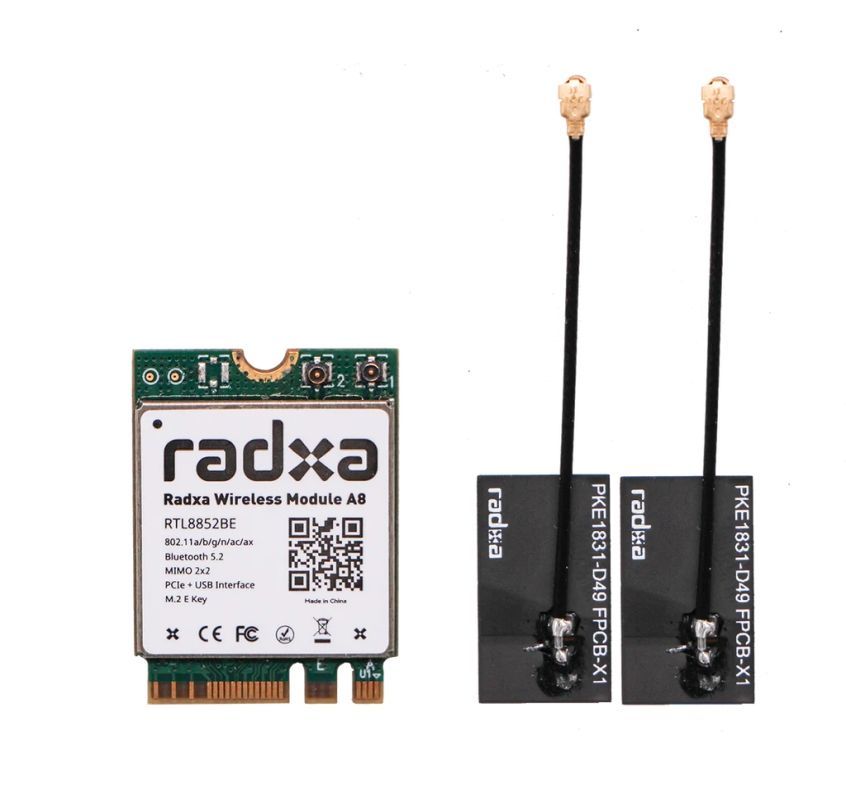

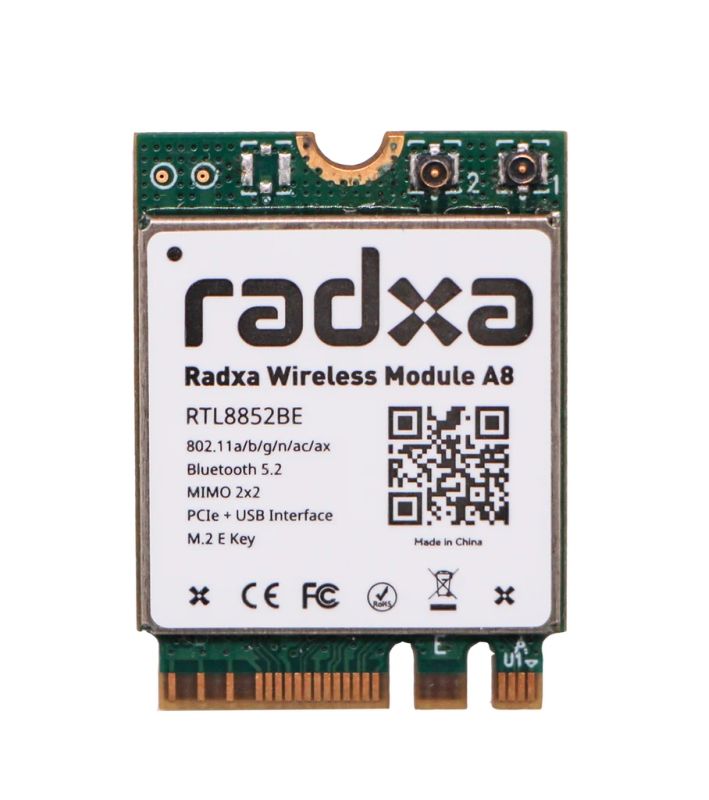

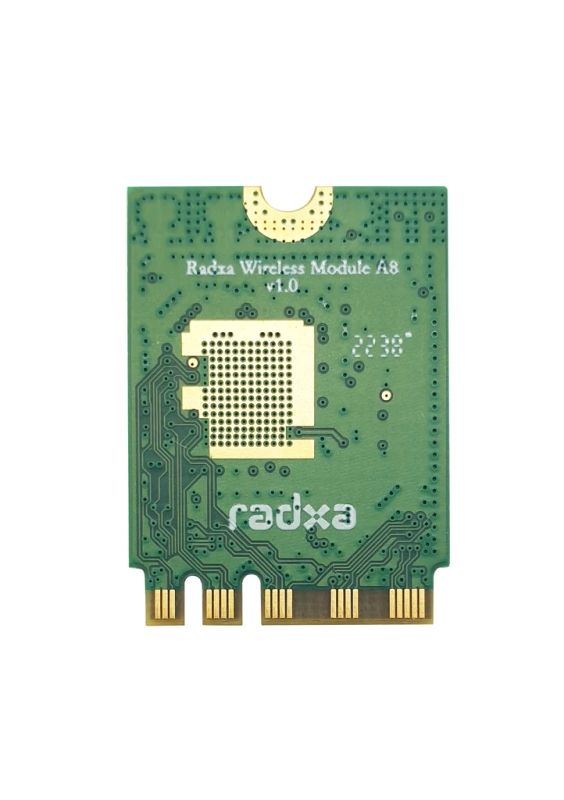

The RADXA M.2 WiFi 6 and BT5.2 radio module A8
Radxa Wireless Module A8, an M.2 WiFi 6 and BT5.2 combination module based on Realtek RTL8852BE
It has the following properties:
IEEE 802.11a/b/g/n /ac/ax compatible WLAN
DBBT5.0 (BT 5.2 compliant)
Complete 802.11n MIMO solution for 2.4GHz and 5Ghz bands
Maximum PHY data rate up to
286.8 Mbps at 20MHz bandwidth
573.5 Mbps at 40MHz bandwidth
1201Mbps at 80MHz bandwidth
Backward compatible with 802.11a/b/g devices operating at 802.11n data rates
Backward compatible with 802.11a/n/ac devices operating at 802.11ax data rates
Compliance with FIPS 140-2 implemented by the Windows operating system as host -Security requirements
Support 20/40/80MHz 5GHz
supports Wi-Fi Bluetooth coexistence
Supports low power Bluetooth
Supports Bluetooth 5 system (BT 5.2 logo compliant)
Compatible with Bluetooth v2.1+EDR
2x uFL port
Support for ROCK 3A and ROCK 5B
Radxa Wireless Module A8, an M.2 WiFi 6 and BT5.2 combination module based on Realtek RTL8852BE
It has the following properties:
IEEE 802.11a/b/g/n /ac/ax compatible WLAN
DBBT5.0 (BT 5.2 compliant)
Complete 802.11n MIMO solution for 2.4GHz and 5Ghz bands
Maximum PHY data rate up to
286.8 Mbps at 20MHz bandwidth
573.5 Mbps at 40MHz bandwidth
1201Mbps at 80MHz bandwidth
Backward compatible with 802.11a/b/g devices operating at 802.11n data rates
Backward compatible with 802.11a/n/ac devices operating at 802.11ax data rates
Compliance with FIPS 140-2 implemented by the Windows operating system as host -Security requirements
Support 20/40/80MHz 5GHz
supports Wi-Fi Bluetooth coexistence
Supports low power Bluetooth
Supports Bluetooth 5 system (BT 5.2 logo compliant)
Compatible with Bluetooth v2.1+EDR
2x uFL port
Support for ROCK 3A and ROCK 5B
