ALLNET RS119-D8P1
Radxa ROCK 5B RK3588 8GB LPDDR4

Your rating:
Average rating
Rating for ALLNET RS119-D8P1 Radxa ROCK 5B RK3588 8GB LPDDR4
( 0 / 5 ) 0 ratings
ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1ALLNET RS119-D8P1

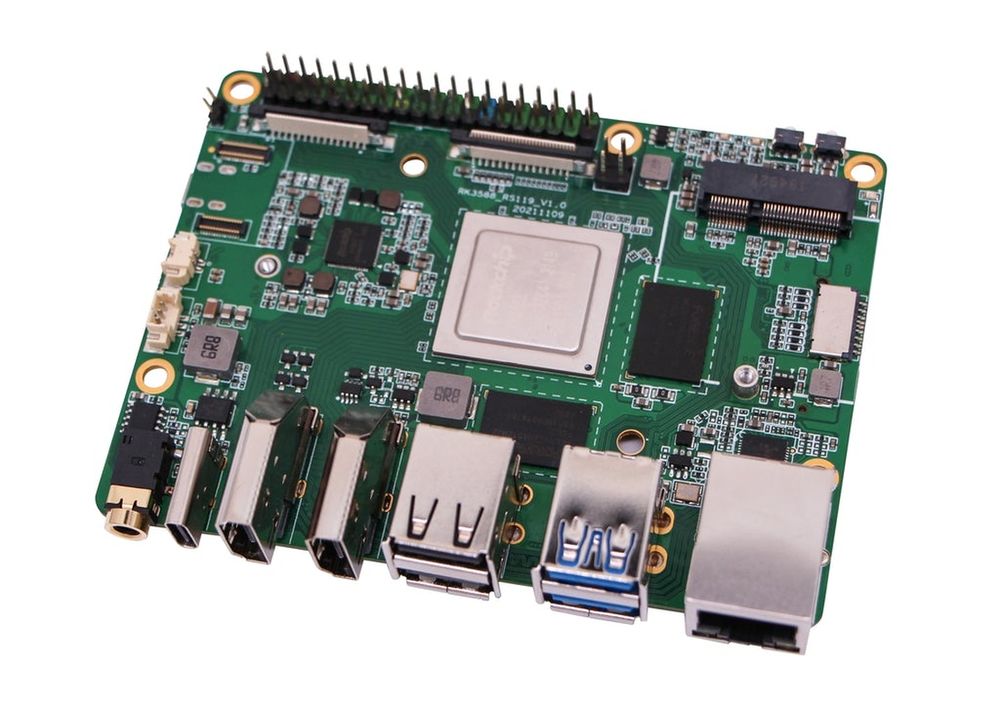

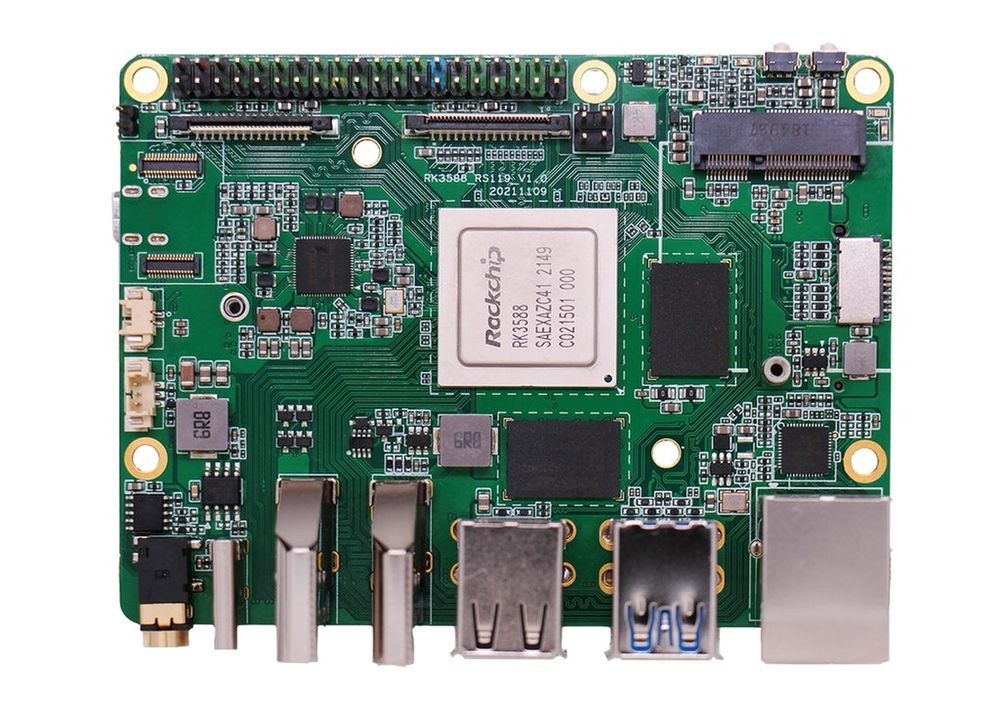

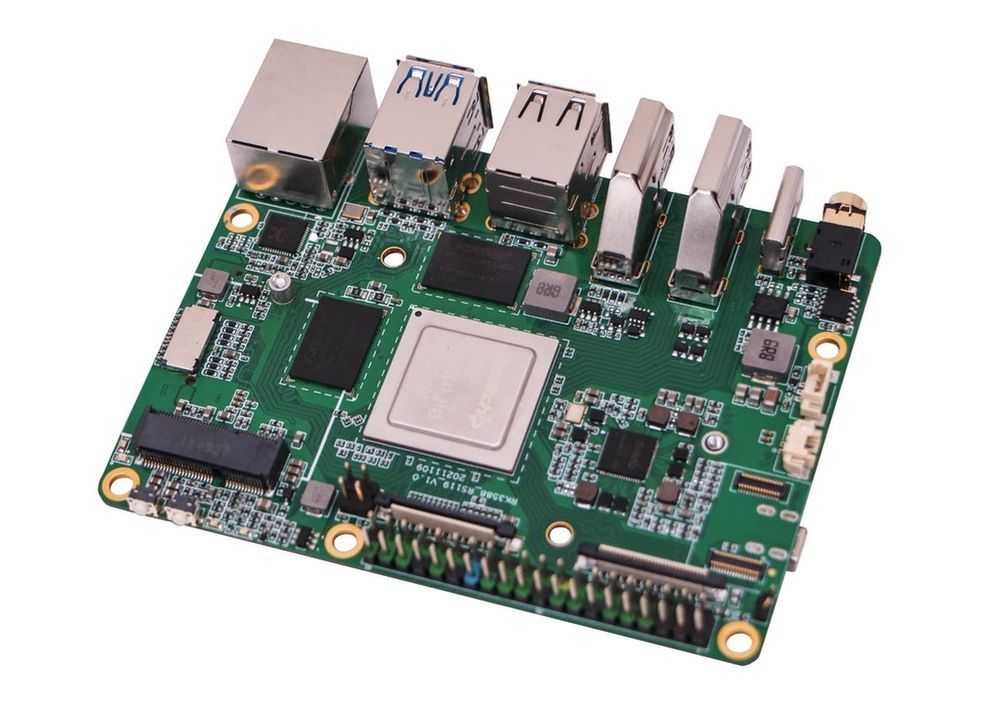

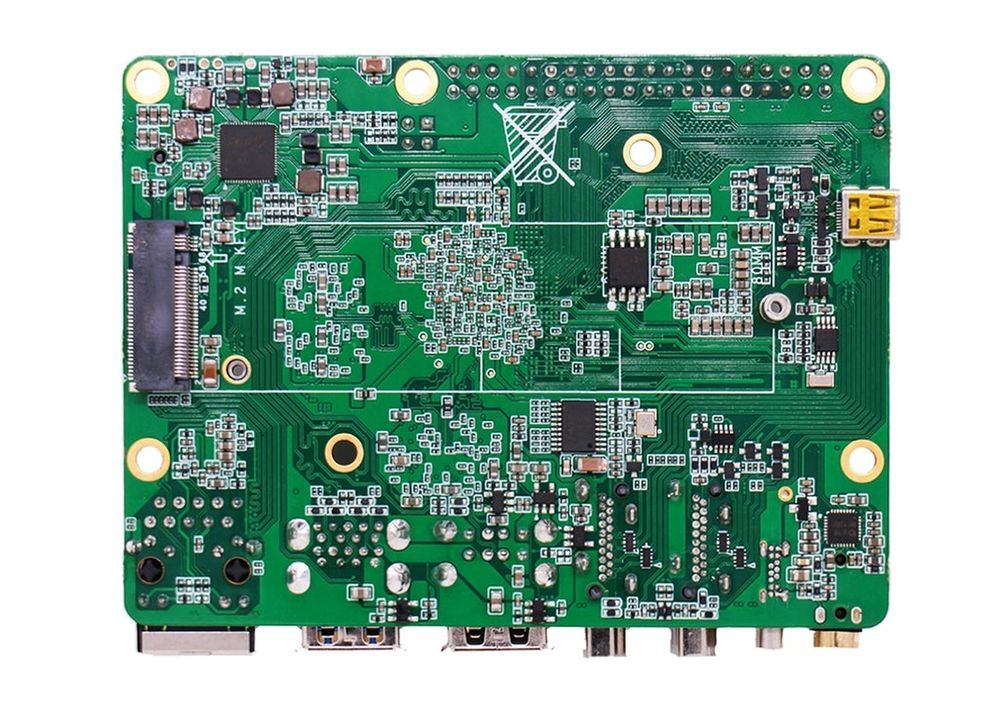

ALLNET RS119-D8P1
This image may differ from the desired article.
173,28 EUR
( 206,20 EUR incl. VAT )
plus delivery charges
2025-10-03Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x ALLNET RS119-D8P1 Radxa ROCK 5B RK3588 8GB LPDDR4
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1929093
Mfg Part No: RS119-D8P1
UPC/EAN: 4038816117229
Weight:0.12 kg
All products of ALLNET

Product information for ALLNET RS119-D8P1:

Rock5 Model B product details*
RK358864bit octa core processor
Quad Core A76 2.4GHz + Quad Core A55 1.8GHz
GPU
Mali G610MP4 GPU (up to 5 channel 4k UI)
8K 10bit decoder, 8K encoder
NPU
6T NPU
Memory LPDDR4
LPDDR4x with 4, 8 or 16GB
SPI Flash
32MB SPI flash soldered
Wifi/BT
WiFi 6E and BT5.2 support
eMMCmodule (removable)
Industrial level high performance eMMC storage, 16G/32G/64G/128G available
Micro SD card
uSD slot supports up to 128G uSD card
M.2 Interfaces
M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes
M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported
Display HDMI
Triple display support (with HDR)
2x HDMI 2.1 up to 8k@60FPS
1x USB-C with DP up to 8K@30FPS
HDMI in with up to 4K@60FPS
1x MIPI DSI
Peripherals
MIPI DSI 2 lanes via FPC connector
HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.
Audio 3.5mm jack with mic
HD codec that supports up to 24-bit/96kHz audio.
Camera MIPI CSI
MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
USB 3.0 HOST x3
1x USB-C
2x USB-A
Network
Wireless / Bluetooth
WiFi 6E and BT5.2
LAN
2.5GbE LAN with PoE support
additional HAT is required for powering via PoE
IO 40-pin expansion header:
  • 1 x UART
  • 2 x SPI bus
  • 2 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 1 x PWM
  • 1 x ADC
  • 6 x GPIO
  • 2 x 5V DC power in
  • 2 x 3.3V power pin
    • Others
    RTC battery connector for time backup
    Power USB PD (new generation QC/PD protocol IC)
    Support USB Type C PD 2.0, 9V/2A, 12V/2A
    Power Supply Qualcomm® Quick Charge™
    Support QC3 .0/2.0 adapter, 9V/2A, 12V/1.5A
    Size 100mm x 72mm (Pico ITX form factor)
    Essentials You NeedROCK5 Model B PD/QC compliant power adapter with USB-C port equal or larger than 15W Keyboard < Mouse Monitor with HDMI input
