Allnet ALL-SNB6622BDGrau 48,3 cm ( 19 inch )cabinet, 22U, B600 / T 600mm, glass door, light gray, SNB series content_copy

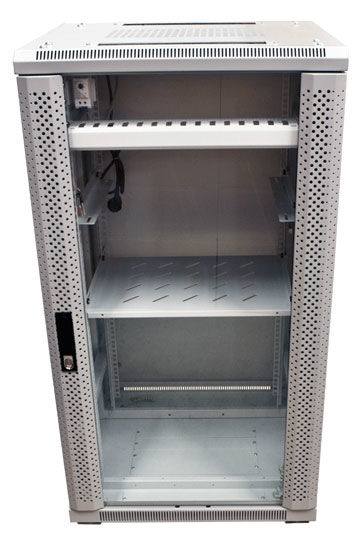

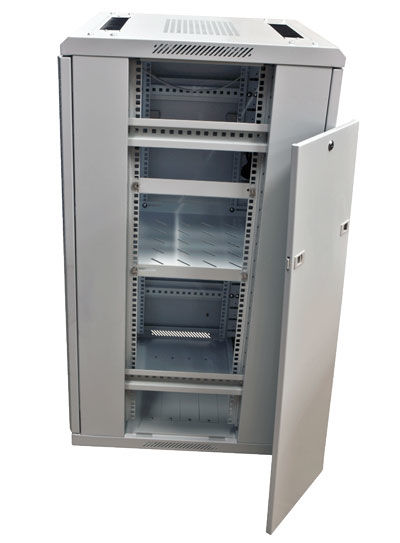

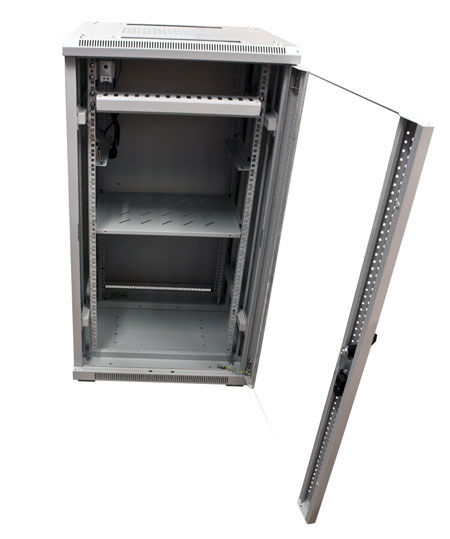

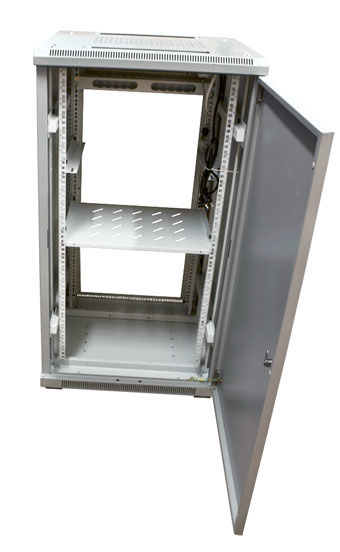

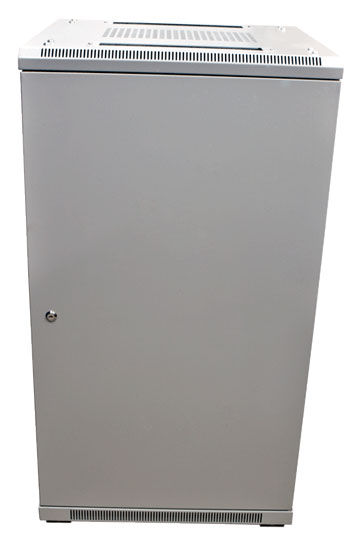

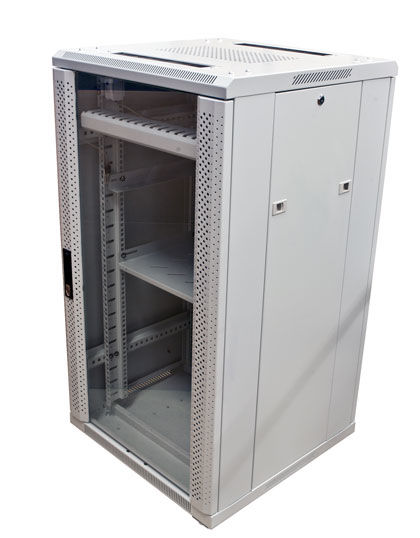

The Allnet 48,3 cm ( 19 inch )-stand enclosure of the SNB series, type ALL-SNB6622BDGrau, is a pre-assembled housing for use in IT and network infrastructures. With a height of 1110 mm, a width of 600 mm, and a depth of 610 mm, it offers 22 height units (HE) of usable space. The enclosure front is equipped with a glass door fitted with a lock, as are the solid metal rear door and the two removable side panels. The enclosure colour is light grey, comparable to RAL7035, making it visually compatible with standardised data centres and server rooms. The usable depth is 480 mm, with the patch area at the front measuring 75 mm. The enclosure is fully disassemblable and can therefore also be assembled in confined spaces or with limited transport volume.

Applications

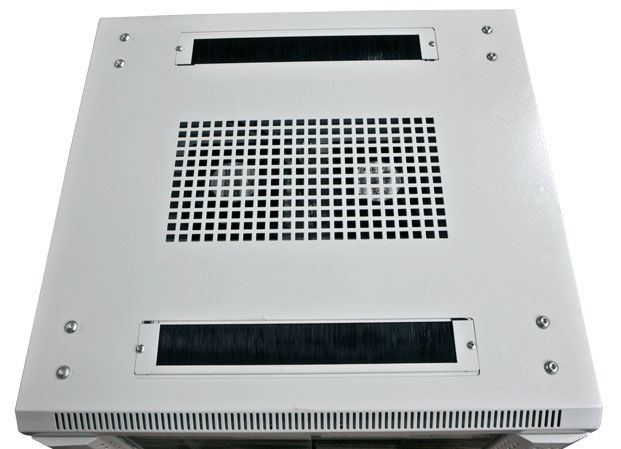

The enclosure is designed for use in IT infrastructures, particularly for installing network devices, servers, switches, routers, and other 48,3 cm ( 19 inch ) equipment. It is suitable for small to medium server rooms, IT departments, data centres, or office installations where structured and secure device distribution is required. The integrated cable management with brush strips at the top and bottom (front, centre, rear) enables orderly cabling and reduces the risk of cable damage. The adjustable feet (height 20–70 mm) ensure stable, level placement on uneven floors.

Functions and Equipment in Detail

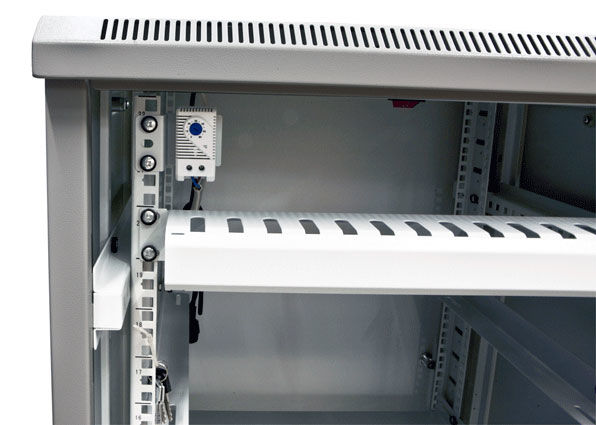

The enclosure features four 48,3 cm ( 19 inch )-hole raster profiles (front and rear), marked with height unit divisions to enable precise device mounting. The 48,3 cm ( 19 inch )-profile spacing is adjustable from 400 mm to 480 mm in 20 mm increments, allowing flexible adaptation to different device configurations. An intermediate shelf (depth 350 mm, width 470 mm, height 45 mm) and an L-angle pair (depth 350 mm, width 40 mm, height 40 mm) are integrated, with a usable width of 450 mm for both. These elements support mounting of devices with different dimensions. The cable management plate with cover (height 44 mm, width 482 mm, depth 68 mm) ensures structured cable routing. Two fans with thermostat (220 V) provide automatically regulated cooling of the enclosure interior. The doors are reversible (left/right), enabling flexible installation at different locations.

Technology Explained Simply

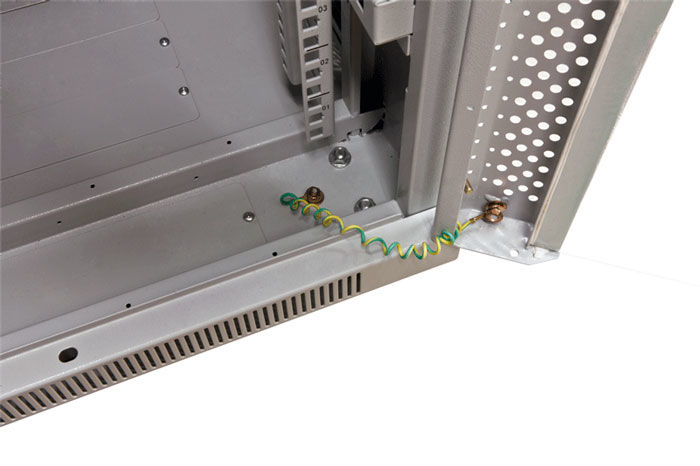

The earthing bolts M6 on doors and side panels are connected to earthing cables to ensure safe electrical earthing of the enclosure and devices mounted inside. This is important for safety and interference-free operation of IT systems. The IP20 protection rating means the enclosure is protected against finger contact and solid foreign objects, but not against water or dust — thus intended for indoor use only. The maximum load capacity is 500 kg, enabling stable mounting even with heavy device configurations.

Compatibility and Accessories

Included are replacement keys for the glass door, shelf inserts in various versions (e.g. fixed, T200 mm, 1 HE), cable ties (e.g. L200 x B3.6 mm, transparent or black, UV-resistant), hook-and-loop tape (25 m, 20 mm wide, black), power strips (e.g. 7x or 9x sockets, CEE7, with overload protection), cable clamps, blanking plates (1 HE or 2 HE), circuit breaker strips (T61 mm, 3 HE), caster sets (75 mm, replacement) and accessory-compatible plinths (W600/D600 mm, light grey). These elements support individual adaptation of the enclosure to specific requirements.

Assembly and Installation

The enclosure is pre-assembled but fully disassemblable, enabling flexible installation at various locations. Assembly is done via the 4x hole raster profiles, secured with screws and cage nuts (20x included in delivery). The adjustable feet and caster set facilitate positioning. Cable management is achieved via brush strips at the top and bottom, with the cable cover neatly concealing the cabling. The doors are fitted with locks, enabling secure access control.

Operational Advantages

The enclosure provides a structured and secure mounting environment for IT devices. The integrated cooling via fans with thermostat ensures constant internal temperature. Earthing protection and IP20 rating enhance operational safety. The adjustable profiles and flexible cable management allow adaptation to different device configurations. The caster set simplifies positioning, and the removable side panels enable easy maintenance and inspection of devices. The pre-assembled version reduces assembly time and installation effort.

Technical data
19/10"/DIN-rail	19"
Colours	Light grey
Width	600 mm
Door type	Glass door
Depth	600 mm
Height units	22 HE
Cabinet type	Floor-standing cabinet
Height	1110 mm

---
