Allnet ALL-S0002118 48,3 cm ( 19 inch )cabinet, accessory Socket, B600 / T 600mm, light gray, for SNB series content_copy

The product ALL-S0002118 from Allnet is a 48,3 cm ( 19 inch ) accessory plinth, specifically designed for the SNB series of enclosures. It serves as a stable base for securing and lowering the enclosure body, ensuring safe and level installation on uneven or raised surfaces. The plinth is finished in light grey, matching the colour tone similar to RAL7035, and provides an aesthetic fit with the enclosure models of the SNB series. With a height of 150 mm, a width of 600 mm, and a depth of 600 mm, it is designed for standard 48,3 cm ( 19 inch ) enclosure configurations.

Applications

The plinth is used in IT infrastructures where a stable and height-adjustable base for 48,3 cm ( 19 inch ) enclosures is required. It is particularly suitable for rooms with uneven flooring, such as server rooms, data centres, or technical rooms in buildings, where precise alignment of the enclosure is important. Using the plinth allows for improved air circulation beneath the enclosure and protects the floor from direct contact with the enclosure frame.

Features and Equipment in Detail

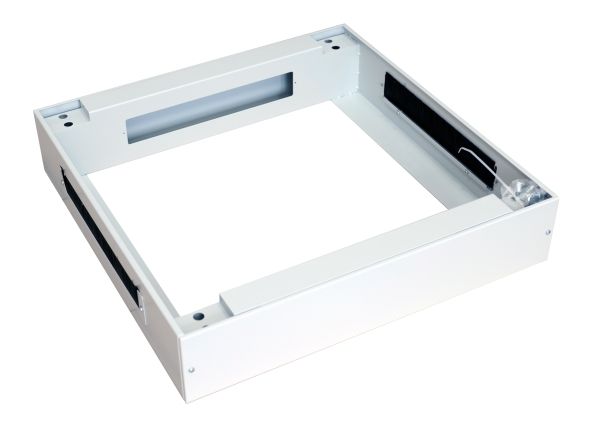

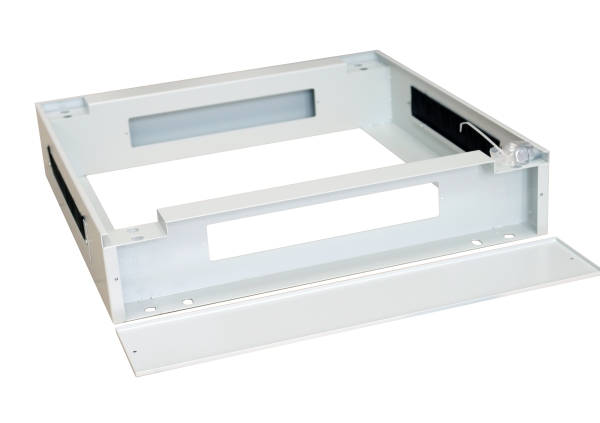

A central feature of the plinth is the integrated cable entry from all four sides. At the front and rear, cable entry is achieved by removing the designated panels, enabling flexible and neat cabling. On the side panels, a brush strip is installed, ensuring dust- and dirt-free cable routing without requiring cables to pass through open openings. This design supports orderly cable management and reduces the risk of interference from foreign objects or dust.

Technology Explained Simply

The plinth is made from robust material suitable for technical environments. The height of 150 mm provides sufficient clearance from the floor to enable effective ventilation while ensuring secure installation. The dimensions of 600 mm width and 600 mm depth correspond to standard sizes for 48,3 cm ( 19 inch ) enclosure accessories, allowing direct mounting under the enclosure without additional modifications. The light grey finish (similar to RAL7035) ensures visual harmony with the enclosure housings of the SNB series.

Compatibility and Accessories

The plinth is specifically developed for the SNB series from Allnet and matches the dimensions and mounting requirements of these enclosure models. It is not intended as universal accessory for other manufacturers, but as a precise replacement or supplementary module for the company’s own enclosure products. Combination with other accessories from the SNB series, such as floor plates or mounting elements, is possible, provided the dimensions match.

Installation and Mounting

Installation is performed by direct fixation under the 48,3 cm ( 19 inch ) enclosure of the SNB series. The designated mounting points and dimensions of the plinth allow for easy and secure installation. The cable openings on the sides and front/rear require removal of the panels, which can be done using common tools such as a screwdriver. The brush strips on the sides are pre-installed and require no additional installation.

Operational Advantages

Using the plinth improves the stability of the enclosure and reduces the risk of vibrations or shifting. The integrated cable entry ensures structured and neat cabling, facilitating maintenance and inspection of the installation. The brush strips on the sides prevent dust and dirt from entering, positively influencing the lifespan of installed devices. The light grey finish ensures a uniform visual appearance of the IT infrastructure.

Technical data
Colours	Light grey
19" rack accessories	Base

---
