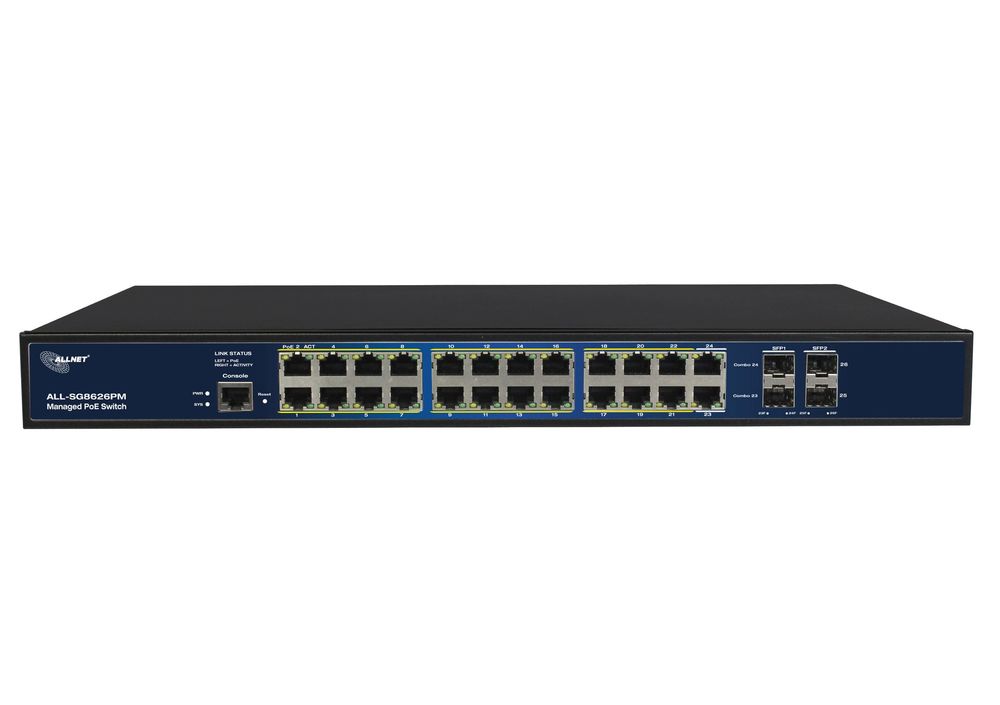

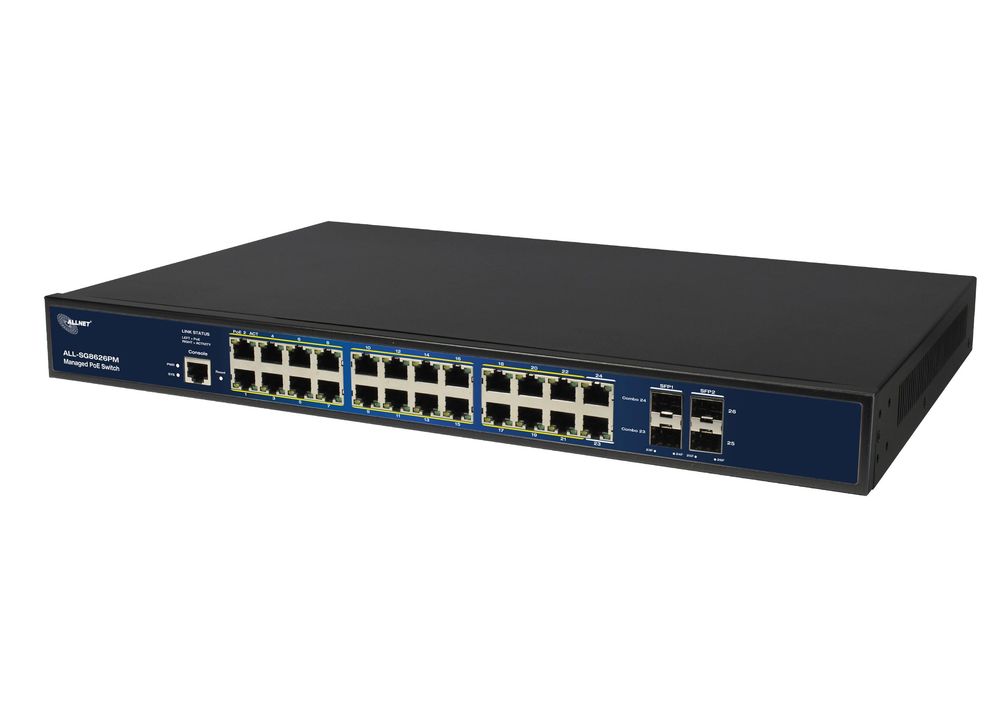

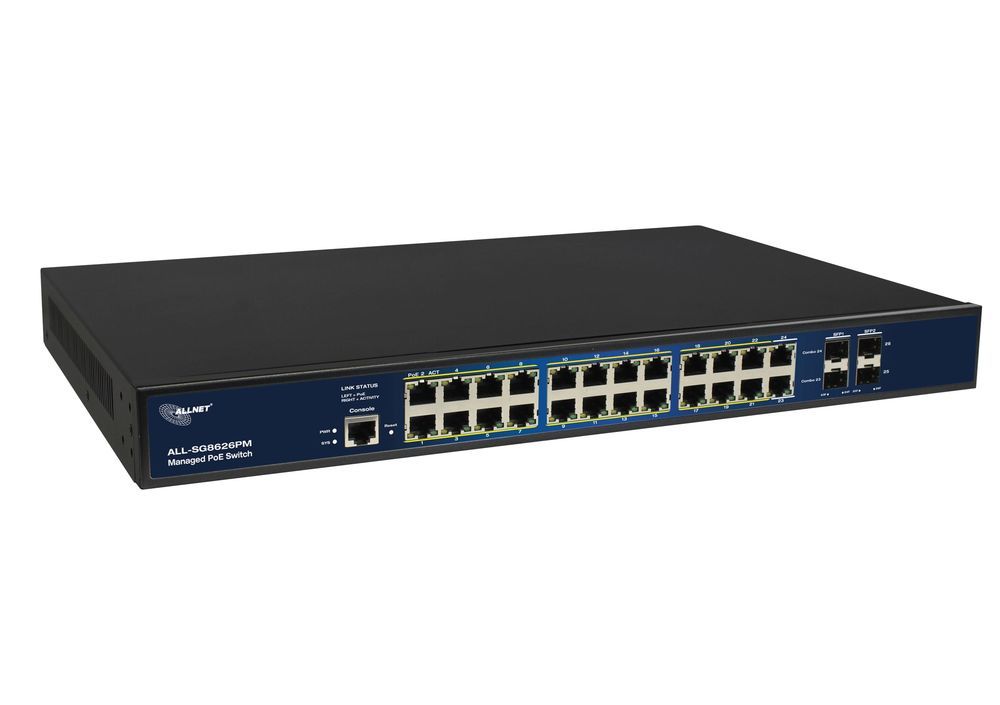

ALLNET Switch fully managed 24 Port Gigabit 390W / 24x PoE+ / 4x SFP / Fanless / 48,3 cm ( 19 inch ) / ALL-SG8626PM

ALLNET Switch fully managed 24 Port Gigabit 390W / 24x PoE+ / 4x SFP / Fanless / 48,3 cm ( 19 inch ) / ALL-SG8626PM" Cost-effective 24 Port Smart Managed Gigabit Layer-2 Switch +4x SFP MiniGbic slots without fan for desktop and 19 rack installation
Highlights: 24 Port Gigabit Layer2+ Switch Architecture Port 23/24 Combo Ports for TP or SFP (1G) and Port 25/26 SFP (1G) Slots Supports various PoE management functions, including PoE Shedule, PoE PD Alive, etc. Supported SFP DDM
PoE scheduling function for energy saving
To protect the environment, the ALL-SG8626PM switch Ethernet PoE can effectively control power supply in addition to its ability to deliver high wattage. The PoE scheduling feature helps to enable or disable PoE power for each PoE port during specific time intervals and is a powerful feature that helps SMBs or enterprises save electricity and money.
Scheduled PD Reboot
The ALL-SG8626PM intelligent PoE switch allows each of the connected PoE IP cameras or PoE wireless access points to be rebooted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.
Redundant ring with fast recovery for critical network applications
The ALL-SG8626PM supports redundant ring technology and has strong, fast self-recovery capability to prevent interruptions and external interference. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and a redundant power system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a certain simple ring network, the data connection recovery time can be up to 20 ms.
1588 timing protocol for industrial computer networks
The ALL-SG8626PM is ideal for telecommunications and Carrier Ethernet applications, supporting MEF service delivery and timing-over-packet solutions for IEEE 1588 and synchronous Ether
Strong Layer 2 capabilities
The layer 2 Ethernet switch ALL-SG8626PM can support advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS , bandwidth control, IGMP snooping and MLD snooping can be programmed. By aggregating the supporting ports, the ALL-SG8626PM enables the operation of a high-speed trunk group that has multiple ports and also supports fail-over.
Efficient and diverse management methods
For efficient management, the ALL-SG8626PM is equipped with console, web and SNMP management interfaces.
With the integrated web-based management interface, it offers a user-friendly, platform-independent management and configuration option.
For text-based management, access is possible via Telnet and the console port.
For standards-based monitoring and management software, it provides an SNMPv3 connection that encrypts packet contents during each session for secure remote management.
Intelligent PoE Switch with SFP-DDM Function
ALL-SG8626PM supports the SFP-DDM (Digital Diagnostic Monitor) function, which enables the network administrator to easily monitor real-time parameters of the SFP transceivers, such as: B. optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.
Technical data: Model ALL-SG8626PM Copper Ports 22-10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports Combo Interfaces 2x 100/1000BASE-X SFP interface shared with port-23 and port-24
Supports 100/1000Mbps dual mode and DDM Fiber Ports 2-100/1000BASE-X SFP interfaces, supports 100/1000Mbps dual mode PoE Ports 1~24-802.3af/802.3at PoE Injector Ports Console Ports 1 x RS-232-to-RJ45 serial port ( 115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 52 Gbps/non-blocking Throughput 38.69Mpps @64 bytes Address Table 8K entries Share Data Buffer 4 Mb Jumbo Frame 9600 Bytes SDRAM 1Gb Flash Memory 128Mb Flow Control IEEE 802.3x pause frame for full-duplex

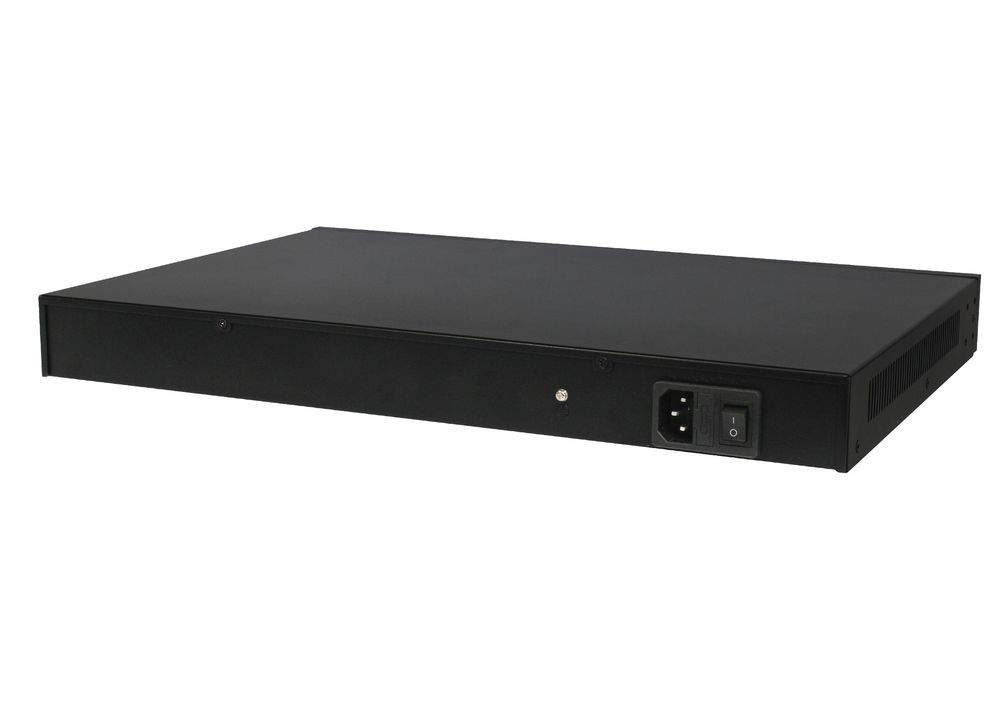

Back pressure for half-duplex Reset Button >2 sec.: Factory default and reset Power Supply 100~240V AC, 50/60Hz, 4A (max.) Power Consumption Max. 400 watts/1122 BTU PoE Standards IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type Per Port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at) LED Indicators Power: Green
Solid on- power work normal, off- power disconnected
System: Green
Blink -work normally, solid on- soft work abnormal, fast Blink – soft upgrade
PoE: Yellow
Solid on - PoE work normally, Off- PoE doesn't work, Blink - PoE overload
10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green) Blink - port connected with data transmission Solid on-port connected without data transmission
100/1000Mbps SFP Interfaces (Port 22 to Port 24): Green
Blink - port connected with data transmission Solid on-port connected without data transmission EMC Surge Immunity:
4KV Per: IEC61000-4-5
ESD Protection:
ESD Level 4 Per: IEC61000-4-2
EFT Level 4 Per: IEC61000-4-4 Layer2 Functions Port configuration Auto-negotiation
Flow Control
Port Mirror: TX/RX/BOTH Many-to-1 monitor
CPU Mirror
Traffic statistics Link Aggregation Static link aggregation
LACP (Dynamic Trunk/Static Trunk)
Algorith based on Source/Destination MAC
Algorithm based on Source/Destination IP MAC Table Aging Time
Static MAC address
Dynamic MAC address management VLAN 4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling
Private VLAN (Protected port)
GARP/GVRP ACL 256ACLs
L2, L3 e L4
Time-based ACL
IP ACL
MAC ACL
MAC-IP ACL
User-Defined ACL
ICMPv6 Spanning tree 802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter Ring Protection Dual Firmware
LLDP
Configuration Export/Import
CDP Aware
OAM (IEEE802.3ah )
CFM (IEEE802.1ag)
sFlow Synchronization, IEEE1588 Support IEEE1588v2 transparent clock Other Features DNS Client
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Option 66
DHCP Option 67
DHCP Option 82
NTP/SNTP Client
UPNP
UDLD PoE management Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check
PoE schedule
Soft-reboot PoE Non-stop Maintenance Cable Diagnostics
Ping
SFP DDM (Digital Diagnostics Monitoring)
Thermal protection
System log ( Local and Remote)
Memory and CPU Monitoring Layer 3 functions Static Routing IPv4 Unicast: Static Routing(Software Base)
IPv6 Unicast: Static Routing(Software Base) IPV6 IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Telnet(v6)
Http/Https
Interface IPV6
ACL IPV6 Dimension 440x290x44.5 mm Weight 4.5 kg Working Temperature -10 C to 45 C Storage Temperature -20 C to 70 C MTBF 50,000 hrs
