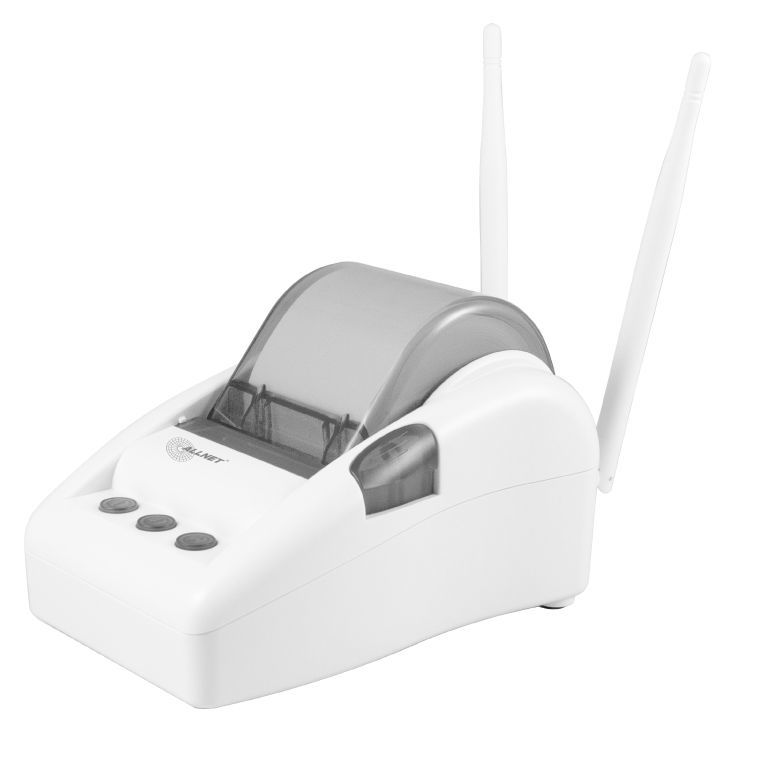

ALLNET ALL-HS02530 ALL02530HS / 300Mbit Wireless N Hot Spot Gateway / Printer

ALLNET ALL02530HS / 300Mbit Wireless N Hot Spot Gateway / Printer
Highlights: Hotspot Gateway with built-in thermal printer
Compatible with IEE802.11n / b / g, wireless 2T2R 2.4GHz high-speed network at up to 300Mbps
Simultaneously supports up to 30 devices and up to 256 local accounts
To be able to connect via ALL0174 to a LAN interface to other access points to extend the signal Expandable.
With today's BYOD Trend is a professional wireless service a powerful argument for the professional customer care.
Most guests and visitors need a Wi-Fi access for their work, for research or communications. Therefore offers the ALL-HS02530 a stable and secure hotspot solution that is perfect for cafes, airports, lounges or shops, enabling a flexible and customizable billing.
The user-friendly design allows for easy use of the gateway and provides users with a safe and comfortable internet access. The user data can be transferred in seconds even via QR code and thus offer maximum comfort.
Supports WPA / WPA2 encryption
Access control, Layer 2 isolation and SSL login page, for increased safety
AAA control and Billing Support
Supports network access control services, including authentication, authorization, and accounting (AAA)
for Internet users and 10 billing profiles
VPN passthrough
Make use of your VPN or Secure Client software to connect to the VPN server of their company
IP Plug and Play Internet Access
No configuration required! Connect your PC, laptop or smartphone to the network, the configuration
takes place automatically.
Legal Security
The ALL-HS02530 supports the ability to store the user data on a syslog server or NAS system with alternative Syslogfunktion. Thus, the operator has the security if necessary to maintain accurate records for logging in case of misuse. Here is recommended: The operator wrote down the ticket ID Nr.an which host he issued the ticket. The ticket ID is stored in the syslog server and on demand with the Session Trace Function which has been visited IP address.

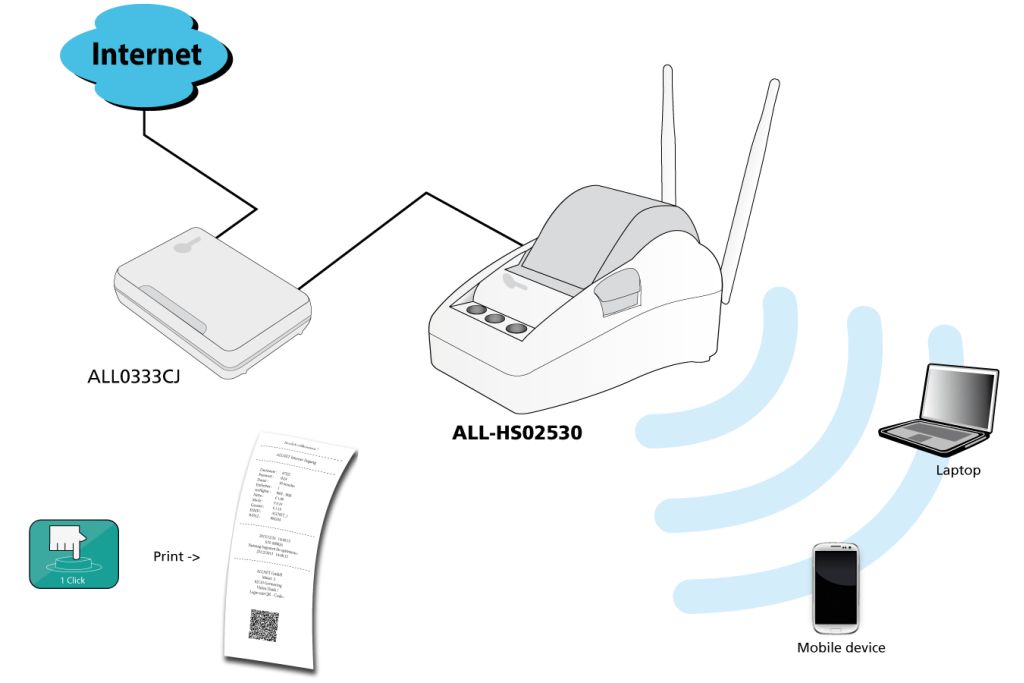

The ALL-HS02530 can be used as a standalone authentication gateway to access the Internet by guests or
Catching visitors. The ALL-HS02530 offers Web-based authentication and a management tool and
Marketing tools such as walled gardens, an internal portal page or an external portal pages forwarding. In addition, stands
Bandwidth and invoice management for visitors who want to use special QoS options.
Often provide smaller locations to only one set of user data that will be used by all guests at the same time. The offers
no security and allows a simple misuse of the Internet line. A secure user data management is
without the proper tools only with great effort possible because individual user data is created manually and
must be managed. The ALL-HS02530 enables automatic generation of the login information and makes it even
at your fingertips. For easy and secure accounting, the printed data let guests
clearly assigned and have a limited useful life.
In addition, we have a login page on which the user can register to as an unambiguous assignment and
to enable legal protection. Depending on the legal requirements can be in this way, all relevant
Save data. In addition, the ALL-HS02530 also offer real-time information and an evaluation of the current session
Information and thus always a possibility of control.
The ALL-HS02530 allows thanks to its plug and play capability immediate use on the network and prints custom
Access of a button. This enables a secure Internet access and offers with various safety and
Administration features a comfortable management and billing of temporary Internet access.
SOFTWARE
Network Specification
IEEE802.3 10BaseT Ethernet
IEEE802.3u 100BaseTX Fast Ethernet
IEEE802.11n / b / g
Radio
IEEE802.11n
4 ESSID
Frequency band
2.4 GHz Frequency Band
Simultaneous Clients
30 expandable via USB LAN interface option
Network
IP Plug and Play (iPnP)
HTTP Proxy Support
SMTP Server Redirection
DHCP server (RFC 2131) / DHCP Relay (RFC 1542)
Static IP / DHCP / PPPoE / PPTP WAN Client
NAT (RFC 1631); IP routing; NTP Support
Local Account: 256
Max Session Number up to 16384
Coding
WEP 64 / 128bit, WPA-PSK TKIP, WPA2-PSK (AES) WPA / WPA2 mix mode
Authentication
Built in Authentication
Radius Authentication / Accounting
Web-based Authentication / Account Manager / Authorization
User Agreement
Accounting
Accounting without PC operating
Credit Card Support
10 Customizable billing profiles
Prepaid Billing Mechanism
Time-Base billing (by minute, hour, day and week) Account Log Max. 1000
Security and Firewall
Layer 2 Isolation
SSL Login Page / SSL Administration VPN Pass Through (IPSec / PPTP / L2TP) Customize SSL Certificate
Pass through Destination IP / URL
Pass through source IP / MAC Filtering Restricted Destination IP / VPN PPTP Client URL
Management
Remote browser-based Configuration and Management Authorized Remote Management (Access
Control List) Firmware Upgrade (RFC 1350) via HTTP / TFTP Scheduled Firmware Upgrade
Dynamic DNS
Real-time Current User List / DHCP Client List / Session List / Account List
Syslog
Bandwidth / Session Control per user
Session Trace
Secure Remote via PPTP VPN
SNMP v1 / v2c (ReadOnly and OID 500) Ping Command
SSL Certificate Upload
Marketing Cooperation
Advertisement URL link
Walled garden
Customize Login Page, Logo, information windows, account
Print out, Credit Card, UserAgreement
Portal Page
HARDWARE
Power requirement
External Power Adaptor
Input: 100-240 VAC, 50/60 Hz
Output: 12V, 1.5Amp
Input / Output
One RJ-45 connector for 10 / 100BaseTX WAN / WLAN Ethernet port with Auto cross-over
One Micro USB Connector (F) for USB to Ethernet ALL0174 LAN Option
Reset button
WAN
Yellow light: a port has established a valid 10 / 100Mbps network connection.
Blinking Yellow: 10 / 100Mbps traffic is traversing the port.
UPLINK
Green light: The Wireless Subscriber Gateway has estab- lished a valid wireless connection.
Green light: The wireless connection is active.
measurements and weight
(L): 109 mm / (W): 155 mm / (H): 90 mm
Weight: about 340g (net)
Printer tray
Push button: push to open printer cover
Tear bar: cuts receipt paper
Button A: When flashing printer cover is opened
Paper roll housing: Put paper roll here
Paper Type
(W): 58 (+ 1 / -1) mm / (L): 50meters (max) / Thickness: 65um
Outside Diameter: 63 (+ 2 / -2) mm
Inside diameter: 12 (+ 0.5 / -0.5) mm
Weight: 120g
Part: 108937 BON-50m
Environmental conditions
Operating temperature: 0 ° C to 50 ° C
Storage temperature: -10 ° C to 60 ° C
Humidity: 10% ~ 90% non-condensing
10% ~ 80% condensing
Mark
CE
