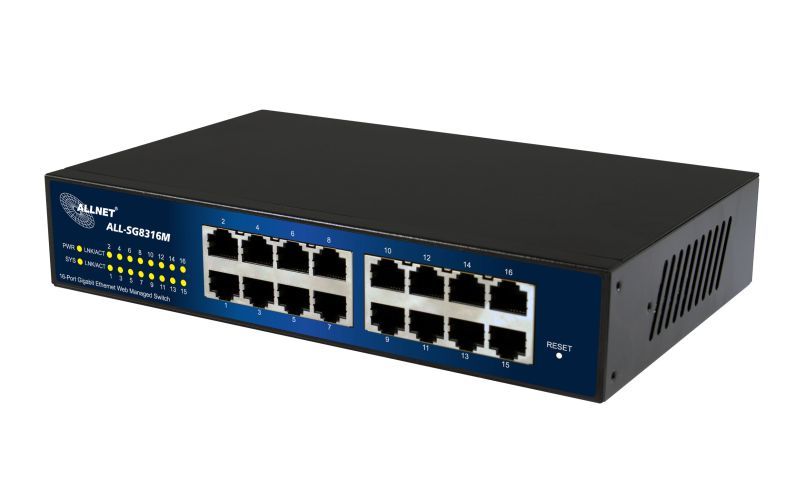

ALLNET ALL-SG8316M / 16 Port Gigabit Smart Managed, fanless, SNMP

ALLNET ALL-SG8316M / 16 Port Gigabit Smart Managed, fanless, SNMP
Cost-effective 16 port Managed Gigabit Layer 2 switch with no fan for desktop and 48,3 cm ( 19 inch )rack installation
Highlights: 16 Port Gigabit non-blocking switch architecture
Supports NWay protocol for speed (10/100 / 1000Mbps) and duplex mode (half / full) auto-detection
Supports back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet
VLAN "64 Static / Port-Based / Tagged Based
Link Aggregation (LACP IEEE802.3ad & Static Trunk)
IGMP Snooping (v1 / v2 / v3)
QoS (Port Based, Flow, 802.1p, IP TOS, IP DSCP)
Storm Control (Broadcast, Multicast, Unicast)
Total fanless, no annoying noises ... more

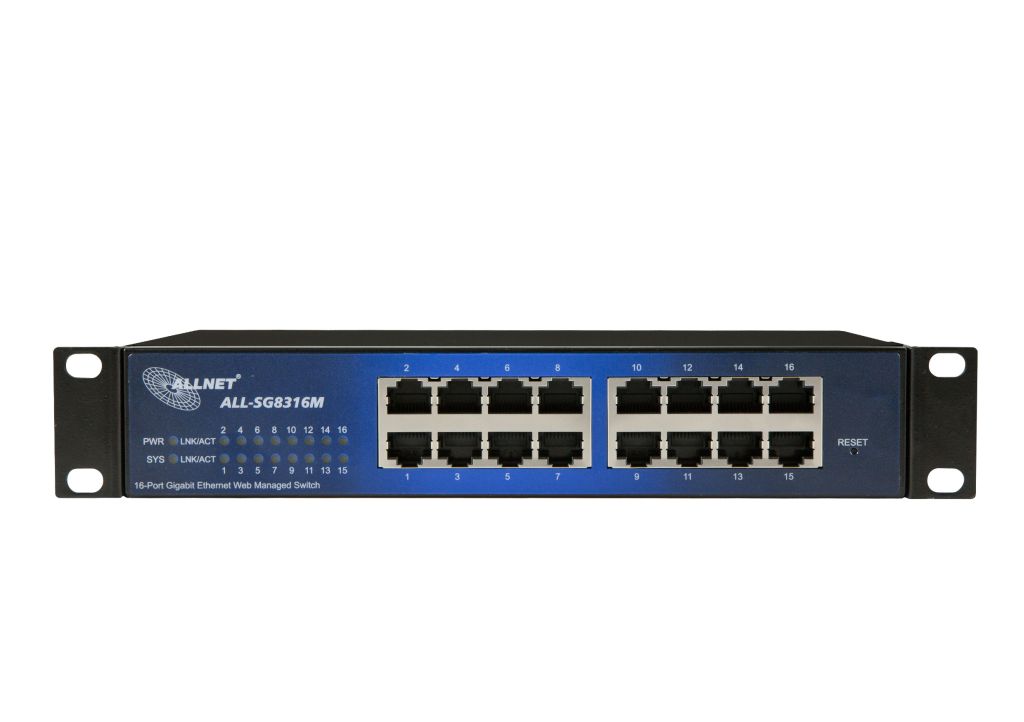

25.4cm (10 inch) / 48.26cm (19 inch angle) or wall / table mounting possible

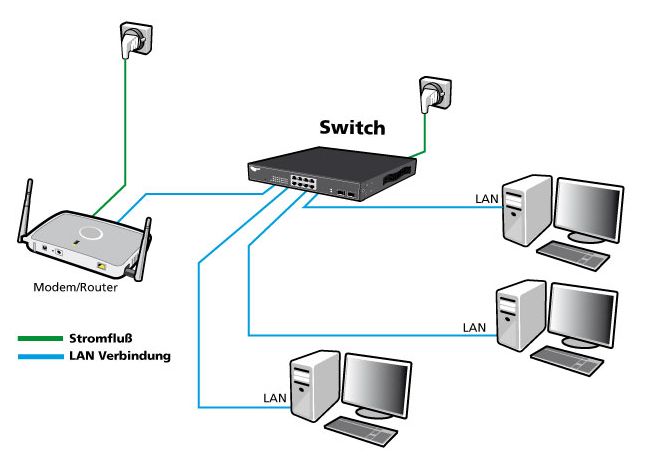

The new ALLNET ALL-SG8316M switch provides an ideal basis for small and medium workgroups with high network and data traffic and enables fast data transfer in Netzwerk.Mit total of 16 Gigabit ports are backward compatible, the connected computers and servers
reliable and powerful interconnected.
By the fanless design of the ALL-SG8316M is also ideal in the office environment can be used, since no disturbing noises are generated. The switch is smart manageable and therefore supports all necessary standards such as QoS, VLAN, Storm Control and IGMP Snooping. This ensures the highest performance and security in your network.

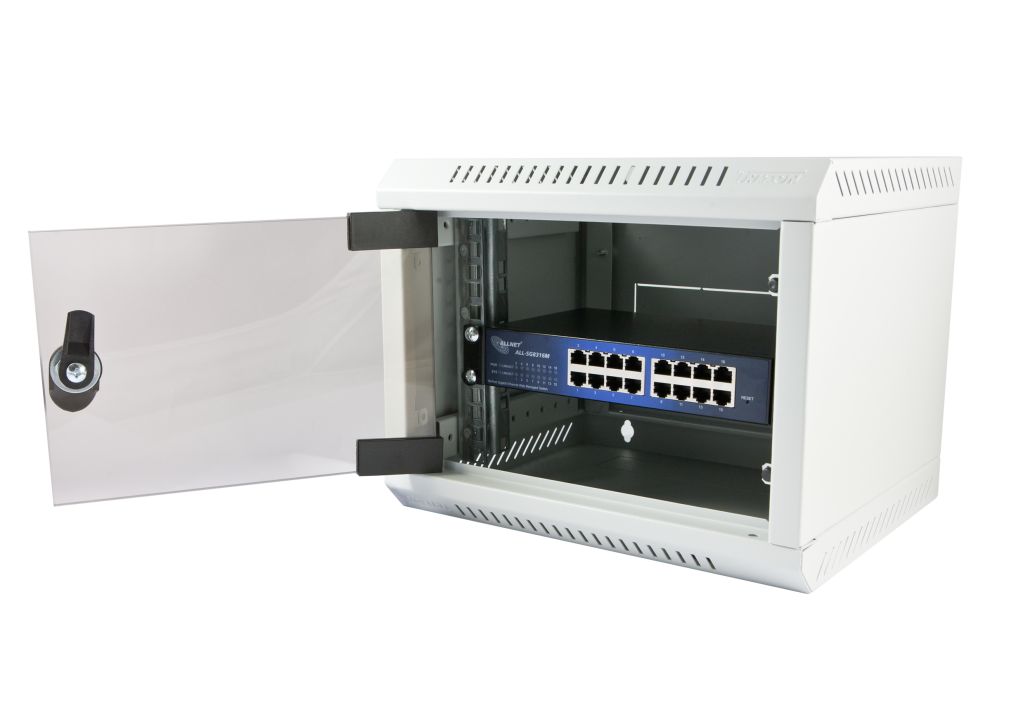

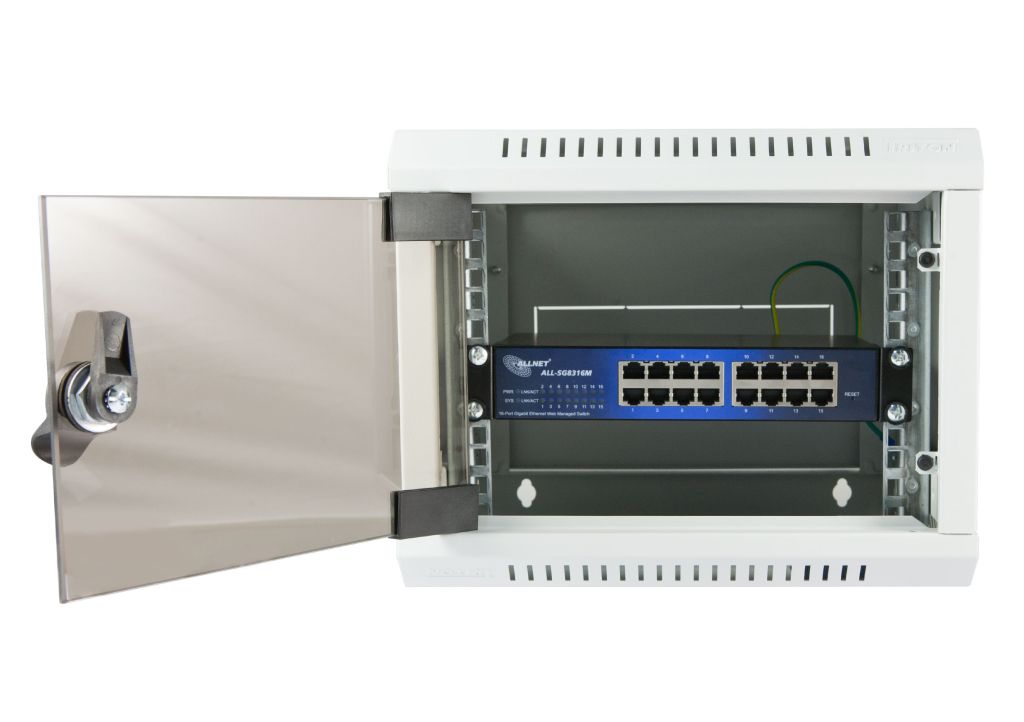

The robust metal housing is suitable for mounting in a 48,3 cm ( 19 inch )cabinet, as well as for wall mounting.
Specifications: Element
Specification
Switch operation:
Layer 2 switch, smart, Store and Foreward, auto-negotiation
Switch type:
stand alone
Switching ports:
16x RJ45 10/100 / 1000BaseT (X)
Expansion Slots:
no
Uplink:
On all ports possible (auto MDI / MDI-X)
Cascadable:
Uplink
Full Duplex Mode:
Yes
Data throughput:
Conduction velocity
Buffer memory:
524,8K Bytes
Jumbo Frame:
10K bytes
Switch Fabric:
32Gbps
Address Management:
Self-learning
MAC address table:
8000
Filtering / Forwarding:
Conduction velocity
LED indicators:
Power
Link
Activity
Power supply:
100 - 240V AC, internal power supply
Power consumption:
15 watts maximum
Supported standards:
IEEE802.3 10BaseT
IEEE802.3u 100BaseTX
IEEE802.ab 1000BaseT
IEEE802.3ad Link Aggregation
IEEE802.1AB Link Discovery Protocol (LLDP)
IEEE802.3x full-duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service, Priority Protocols
IEEE802.1Q VLAN Tagged Based
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Spanning Tree (RSTP)
Layer2 functions:
Flow Control (Full-Duplex & Half-Duplex)
Spanning Tree (STP & IEEE802.1w IEEE802.1d RSTP, Auto Edge Port, Self Loop Detection)
VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based)
Voice VLAN (OUI Mode)
Link Aggregation (LACP IEEE802.3ad, Static Trunk, 8x max groups, 8 ports / groups, traffic load balancing)
IGMP Snooping (256 multicast groups, IGMP v1 / v2 / v3
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
QoS features:
8 PriorityQueue
Rate Limit (Port Based Ingress / Egress)
Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid)
Class of Service (Port-based, flow-based, 802.1p, IP TOS, IP DSCP)
Security:
Storm Control (Broadcast, Multicast Unknown, Unknown Unicast)
HTTPS and SSL 2.0
Account Manager (Multiple Account, Multi-Level Security)
Management VLAN,
Port isolation
DoS Prevention
IPv6:
IPv6 Application (HTTP / HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6)
IPv6 Host (Static Address Length, Default Gateway, Neighbor Discovery (ND), Duplicate Address Detection, ICMPv6)
Management:

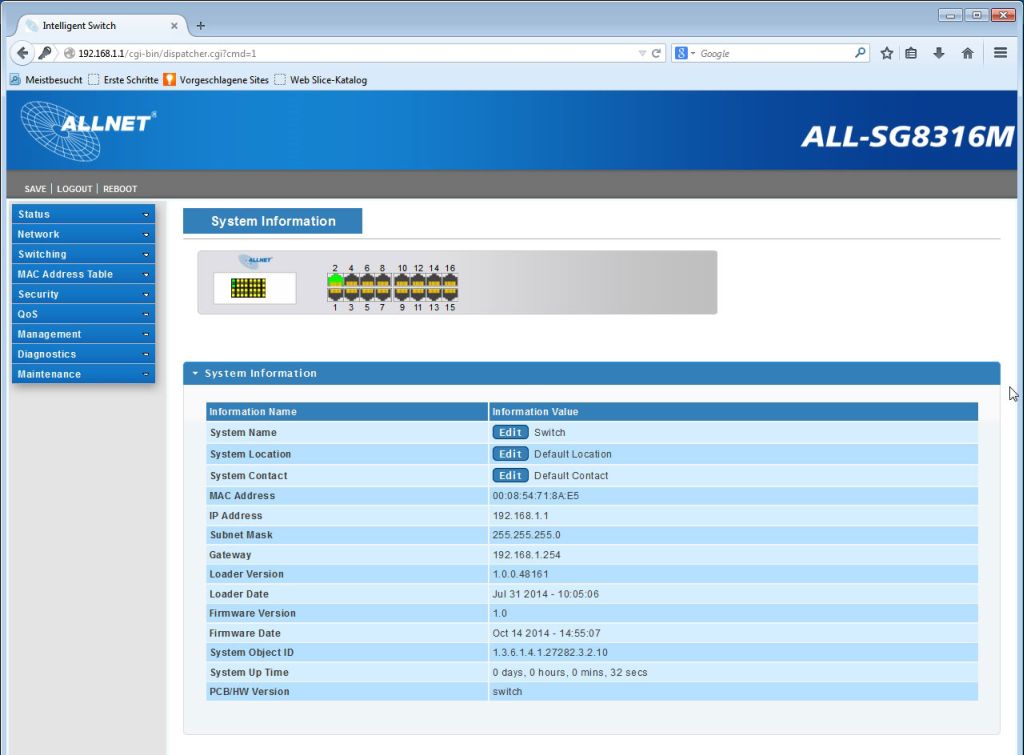

Web GUI (HTTP, HTTPS)
Command Line Interface (CLI Console, RFC854)
SNMP (v1 / v2)
File management (Firmware Upgrade, Configuration Download
DHCP Client
DNS Client
Mirroring (Port-based (many to one)
Syslog (RFC3164, LocalRAM, Local Flash, remote server)
Time Setting (Local, SNTP)
Cable Diagnostics (Cable Test)
Port Utiliation
Reset Button
EEE (802.3az)
Housing:
19- Metal housing, mounting angle enclosed,
Dimensions:
Width / depth / height: 216 x 133 x 42 mm
Surroundings:
Temperature Operation: 0 ~ 55 ° C
Operating Humidity: 10% ~ 90%
Storage temperature: -20 ~ 90 ° C
Humidity Storage: 5% ~ 90%
Labelling:
EMC / FCC, CE Class B; Safety / LVD EN60950-1
