Triton 25,4 cm ( 10 inch )Wall Mount Cabinet, 6U, 1-piece, light gray, content_copy

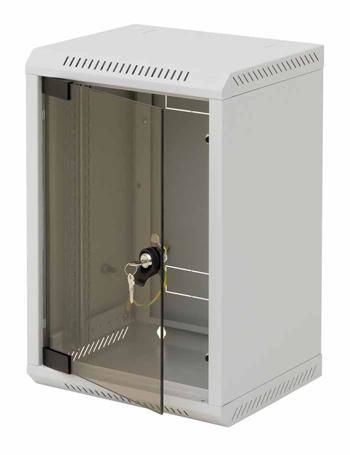

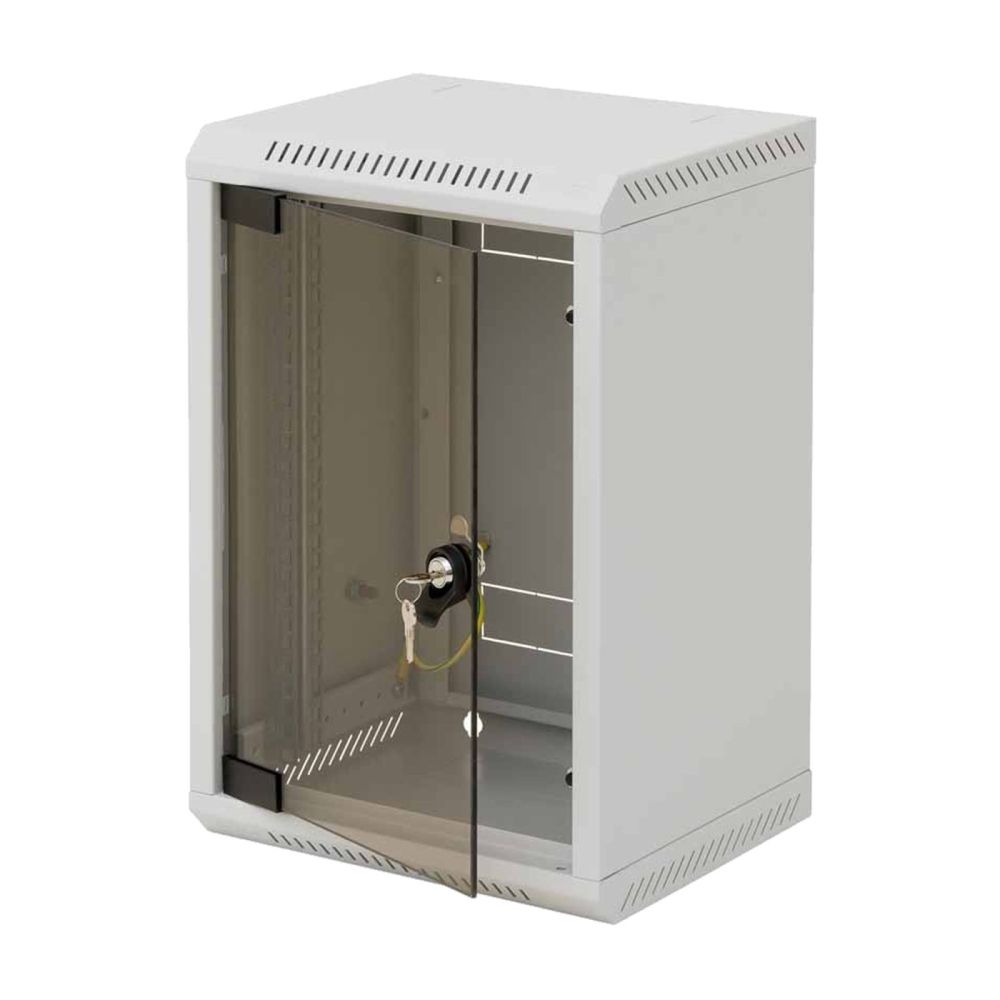

The Triton wall-mounted enclosure RBA-06-AS3-CAX-C1 is a 10-inch wall distributor with a height of 6 U, specifically designed for use in office environments. It is intended for the installation of data and telecommunication systems as well as distribution systems and is mounted directly on the wall. The enclosure is single-piece and pre-assembled, which accelerates installation. It features a robust welded construction made of steel deep-drawn sheet metal and a full glass door made of 5 mm thick tempered safety glass, providing clear visibility of installed components. The enclosure colour is Light Grey (RAL7035), offering a neutral and professional appearance. The external dimensions are 337 mm (height) × 310 mm (width) × 260 mm (depth), with a usable depth for device installation of 180 mm.

Applications
This wall-mounted enclosure is ideal for small projects such as home networks or networks in small businesses (SOHO). It complements classical 19-inch distributors and provides a compact solution for wall mounting in offices or similar indoor spaces. The protection rating IP30 ensures protection against solid foreign objects and splashing water; however, the device is not intended for outdoor use or damp rooms. The operating conditions are limited to dry, dust-free indoor environments to ensure the functionality and service life of the enclosure and installed components.

Functions and Equipment in Detail
The enclosure includes two adjustable vertical rack rails, which are fixed at predefined positions on the frame, enabling flexible mounting of 10-inch components. The doors can be opened up to nearly 180°, facilitating access to the devices. The door hinges are removable, allowing the door to be repositioned as needed. The maximum permissible load on the doors is 10 kg. In the base of the enclosure, there is an M8 screw serving as the main earthing point, and all removable parts are connected with earthing cables, which must remain properly secured throughout the entire service life. The cable entries in the rear wall, as well as in the roof and base, are equipped with removable blanking plates to enable flexible cable routing.

Technology Explained Simply
The construction from steel deep-drawn sheet metal and welding technology ensures high mechanical stability. The use of tempered safety glass (5 mm) for the door not only provides clear visibility but also increases safety against breakage. The rack rails are designed for mounting 10-inch devices and allow precise positioning. The earthing connection is an integral part of the enclosure to minimise electromagnetic interference and hazards from electrical voltages. The minimum coating thickness of 65 micrometres ensures sufficient material thickness for mechanical load capacity.

Compatibility and Accessories
The enclosure is designed for 10-inch components and can be supplemented with various accessories, such as mounting kits with screws and cage nuts, cable management plates, blanking plates, shelf dividers, or socket strips. Compatible patch panels, such as the Keystone module carrier for 12x TP module (1 U), can also be integrated. Combining it with a Smart-Managed Switch (e.g. ALL-SG8316M) enables a powerful network environment. Installation requires a wall with sufficient load-bearing capacity, such as brick or concrete, ensuring even load distribution.

Mounting and Installation
Mounting is done on the wall using screws, anchors, and washers included in the package. The spacing for mounting is indicated in the distribution diagram with the value "R". The delivery includes 2 door keys, 4 wood screws (6x50), 4 washers (6.6), 4 anchors (10), and 8 cage nuts (M6). Installation requires no additional tools other than a screwdriver. The earthing cables must remain properly connected throughout the entire service life.

Operational Advantages
The enclosure offers a compact, robust, and flexible solution for wall mounting of network and communication components. The adjustable rack rails and removable blanking plates enable adaptable cable routing. The full glass door ensures good visibility of installed devices, while the earthing connection enhances safety. The use of recyclable materials supports environmentally friendly disposal after decommissioning.

Technical data
Colour	Grey (RAL7035)
Height unit	6U
Weight	6.300kg
Length packaging	0.360m
Width packaging	0.290m
Packaging volume	0.0365m³
Height packaging	0.350m

---
