Triton 25,4 cm ( 10 inch )Wall Cabinets, accessory Cable management panel, 1U, Lichtgr content_copy

The Triton cable management panel RAC-VP-X02-C1 is a 25,4 cm ( 10 inch ) accessory for 19-inch wall-mounted enclosures, designed for structured cable routing and organization within a rack system. It supports better cable management and facilitates maintenance as well as ventilation of devices in the enclosure. The panel is finished in Grey (RAL7035) and corresponds to the height unit 1HE, making it suitable for standard 19-inch rack systems. The construction from sheet steel ensures robust mounting, while the integrated plastic cable entry grommets enable damage-free cable routing.

Applications
This cable management panel is used in IT infrastructures, server rooms, network and communication installations where proper cable management is required. It is particularly suitable for 25,4 cm ( 10 inch ) rack enclosures used in compact installations or where space is limited. The structured cable routing improves clarity and simplifies maintenance and expansion of the system.

Functions and Equipment in Detail

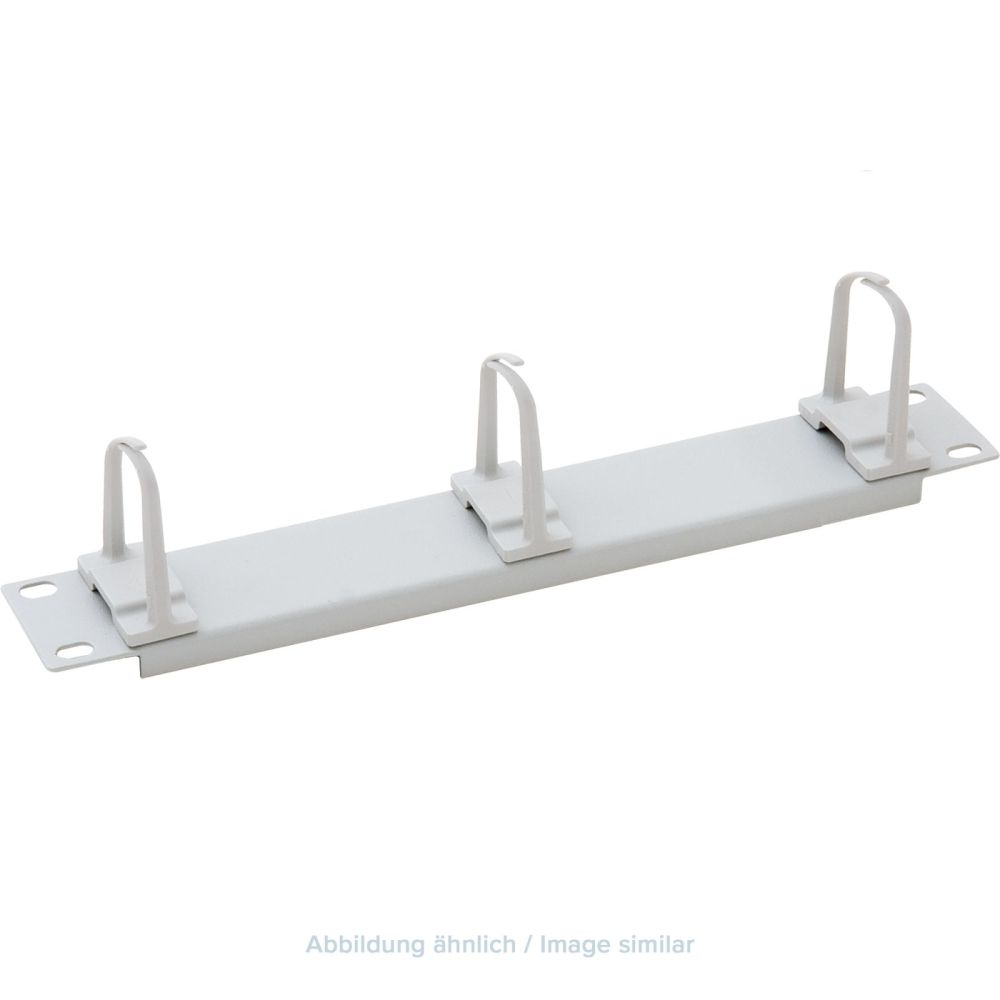

The panel features three fixed cable management brackets that allow for organized cable routing. These brackets are made of plastic and protect cables from mechanical damage. The panel itself is made of sheet steel and provides a stable base for mounting. The Light Grey (RAL7035) color matches standard rack components visually. Mounting is done via the 25,4 cm ( 10 inch ) rackmount system, with the required mounting elements included in the delivery scope.

Technology Explained Simply
The cable management brackets are positioned to allow cables to be routed at different heights and directions, enabling flexible arrangement. The plastic cable entry grommets prevent cables from being damaged when routed through the panel, especially at sharp edges. The 25,4 cm ( 10 inch ) format corresponds to a width of 25.4 cm, matching the standard for many wall-mounted enclosures. The height of 1HE (rack unit) equals 4.445 cm and is thus compatible with standard rack systems. Mounting is done using M6 screws, plastic washers, and M6 cage nuts, all included in the delivery scope.

Compatibility and Accessories
The panel is specifically designed for 25,4 cm ( 10 inch ) rack enclosures and fits into standard 19-inch systems. It can be combined with additional accessories such as cable ties to further structure the cabling. Suitable accessories include, for example, cable ties with marking surface, which can be used for labeling and securing cables. Combining with such elements supports a professional and maintenance-friendly installation.

Mounting and Installation
Mounting is done using the included mounting elements: 4x M6x10 screws, 4x plastic washers, and 4x M6 cage nuts. These are inserted into the designated mounting holes of the panel and fastened at the corresponding mounting points in the rack. Installation requires no additional tools beyond a screwdriver or suitable wrench. Positioning in the rack is done at the desired height, with the 1HE height enabling placement within the enclosure.

Operational Advantages
Using the cable management panel improves cable clarity, simplifying maintenance and fault diagnosis. Structured cable routing reduces the risk of tangling and damage. The integrated brackets allow flexible cable arrangement, ensuring proper cabling even during later expansions or modifications. The robust construction from sheet steel ensures long service life and secure mounting in the rack system.

Technical data
Colour	Grey (RAL7035)
Height unit	1U
Type	Cable management panel
Weight	0.180kg
Height packaging	0.020m
Packaging volume	0.0002m³
Length packaging	0.045m
Width packaging	0.255m
Installation system	10" rackmount

---
