ALLNET point-to-point coax 8 port master chassis/amplifier EOC 200 plus EOC G.hn WIFI flush-mounted box/through-box ALL-GHN108S-200-UP-Dose

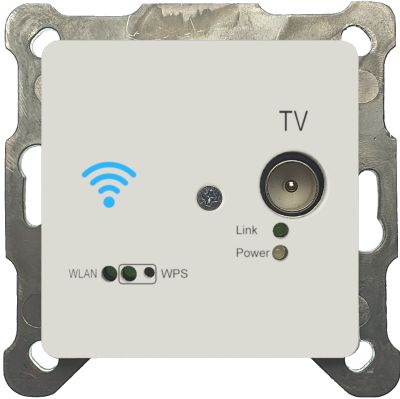

in existing coaxial cable is used for the simultaneous transmission of DVB-C and network data. The EOC WLAN flush-mounted socket is a C through-socket with integrated 2.4 GHz WLAN (Wi-Fi 4 2x2 802.11n) and has 2 antennas (2T2R).
The coaxial socket provides a broadband cable signal (108 - 860 MHz) and can be used with a commercially available receiver.
The TV signal is output via the coaxial socket, the network data via WLAN.
The individual flush-mounted sockets/G.hn modules are networked automatically.
The EOC WLAN is operated via remote power supply by an ALL-GHN108M-Coax-200 amplifier. It can then supply 4 subsequent EOC 200s.
The EOC WLAN can be installed in a single flush-mounted socket or in a multiple flush-mounted socket.
Each EOC WLAN can exchange data with any other flush-mounted socket.
Recommended application:
Building upgrade with Gigabit with existing coaxial cabling and small budget Home users Small company networks Hotels Hospitals Health resorts Retirement homes Old building renovation Coax DVB-C single socket for series distribution Installation in single and multiple sockets Frequency range: 2 – 199 MHz Network standard: G.Hn Gross data rate: 2000 Mbps Net data rate: 1700 Mbps Through loss: 300 – 860 MHz: -2 dB (16 db directional coupler) Through loss: 300 – 860 MHz: -3 dB (10 db directional coupler) Directional coupler: 10 db or 16 dB Hardware encryption: AES 128-bit Quality of Service: VLAN/TOS/Packet Classifier Remote maintenance: TR-069 Remote Management (optional) Only suitable for DVB-C cabling
Not suitable for satellite cabling
Technical Data: Software: openWRT 21.02.0 CPU: MIPS24KEc 580 MHz RAM: 64 MB RAM Flash: 32 MB Crypto: AES 128/256 Wi-Fi4: Data rate 2x 150 Mbit/s (gross) 2x2 802.11n Freqency: 2.4 GHz Antenna: 2T2R
