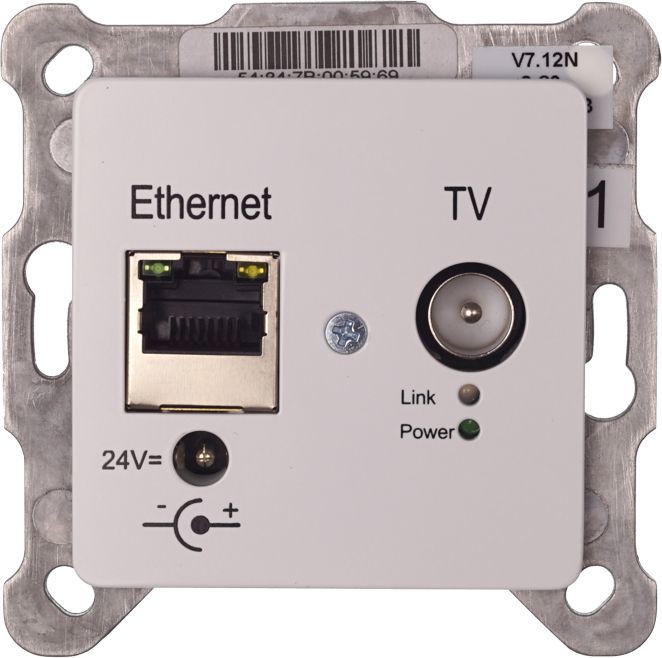

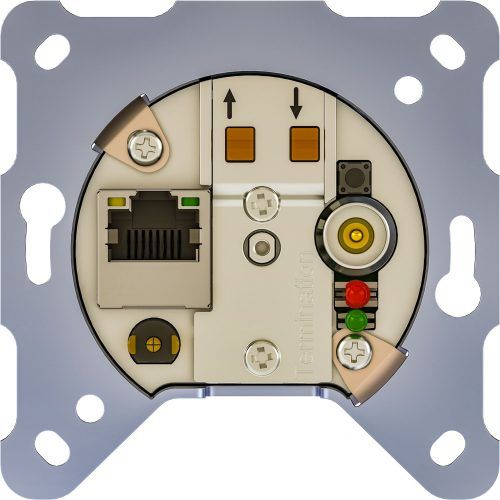

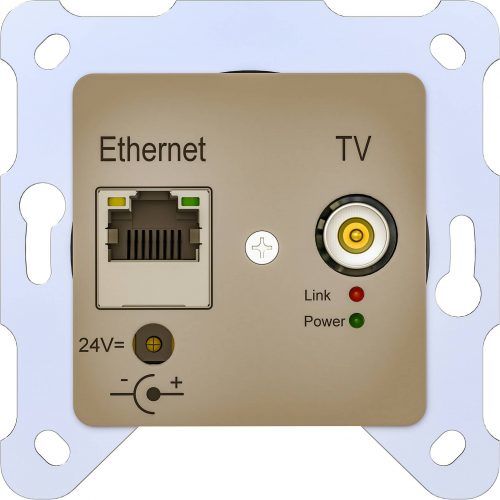

The EOC 200 flush-mounted socket is a C-through socket with an integrated GBit LAN interface. An existing coaxial cable is used for the simultaneous transmission of DVB-C and network data. Internet/network data can be used via the GBit Ethernet connection. The coaxial socket provides a broadband cable signal (240 to 860 MHz) and can be used with a standard receiver. The TV signal is output via the coaxial socket, and the network data via the RJ45 socket. The individual flush-mounted sockets/G.hn modules are networked automatically. The EOC 200 can be operated via remote power supply using an ALL-GHN108M-Coax-200 or with a 24V/1A power supply unit. 4 subsequent EOC 200s can be supplied with power. (Art. 221626 ALL-GHN108S-200-UP-Dose or Art. 221627 ALL-GHN108S-200-WIFI) The EOC 200 can be installed in a single flush-mounted box or in a multiple flush-mounted box. (Art. 221626 ALL-GHN108S-200-UP-Dose or Art. 221627 ALL-GHN108S-200-WIFI) Each EOC 200 can exchange data with any other flush-mounted box. (Art. 221626 ALL-GHN108S-200-UP-Dose or Art. 221627 ALL-GHN108S-200-WIFI) Cabling/connection of the EOC flush-mounted boxes to the ALL-GHN108M-Coax-200 Recommended application: Building upgrade with Gigabit with existing coaxial cabling and small budget: Home users Small company networks Hotels Hospitals Health resorts Retirement homes Renovation of old buildings Comparison of transmission standards Standard G.Hn over COAX WLAN Powerline DOCSIS 3.0/3.1 over Coax net data rate 1.5 Gbit 240 Mbit – WiFi 4²
600 Mbit - Wi-Fi 5²
800 Mbit - Wi-Fi 6² 400 Mbit Powerline AV1200²
400 Mbit Powerline AV2000² 1600 Mbit/s download³
240 Mbit/s upload³ Acquisition costs medium Wi-Fi4 devices cheap
Wi-Fi5 devices medium
Wi-Fi6 devices expensive AV1200 devices cheap
AV2000 devices medium high
requires DOCSIS - CMTS server Power consumption up to 3W/Gbit >6 W/Gbit
access point included up to 6 W/Gbit >8 W/Gbit
server included Susceptibility to interference not susceptible to interference due to many users due to electrical consumers not susceptible to interference Wiretapping security yes WPA3 yes
WPA2 no yes yes Visual effect small
disappears in the wall medium
Router stands in the room large
protrudes from the socket medium
Modem stands in the room ² Source:
³ Source: Technical data: DVB-C single socket for series distribution Installation in single and multiple sockets Frequency range: 2 – 199 MHz Network standard: G.Hn Gross data rate: 2000 Mbps Net data rate: 1700 Mbps Through loss: 300 – 860 MHz: -2 dB (16 db directional coupler) Through loss: 300 – 860 MHz: -3 dB (10 db directional coupler) Directional coupler: 16 dB (other values on request) Hardware encryption: AES 128-bit Quality of Service: VLAN/TOS/Packet Classifier Remote maintenance: TR-069 Remote Management (optional) Only suitable for DVB-C cabling
Not suitable for satellite cabling Only suitable for DVB-C cabling
Not suitable for satellite cabling Power consumption EOC 200 Net data rate Power consumption 50 Mbit/s 2.06 watts 100 Mbit/s 2.27 watts 200 Mbit/s 2.47 watts 300 Mbit/s 2.68 watts 400 Mbit/s 2.81 watts 500 Mbit/s 2.90 watts 800 Mbit/s 3.09 watts 1000 Mbit/s 3.15 watts
