Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector

Your rating:
Average rating
product review for Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector
( 5 / 5 ) 1 ratings

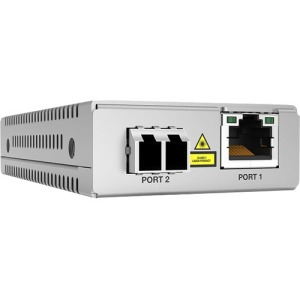

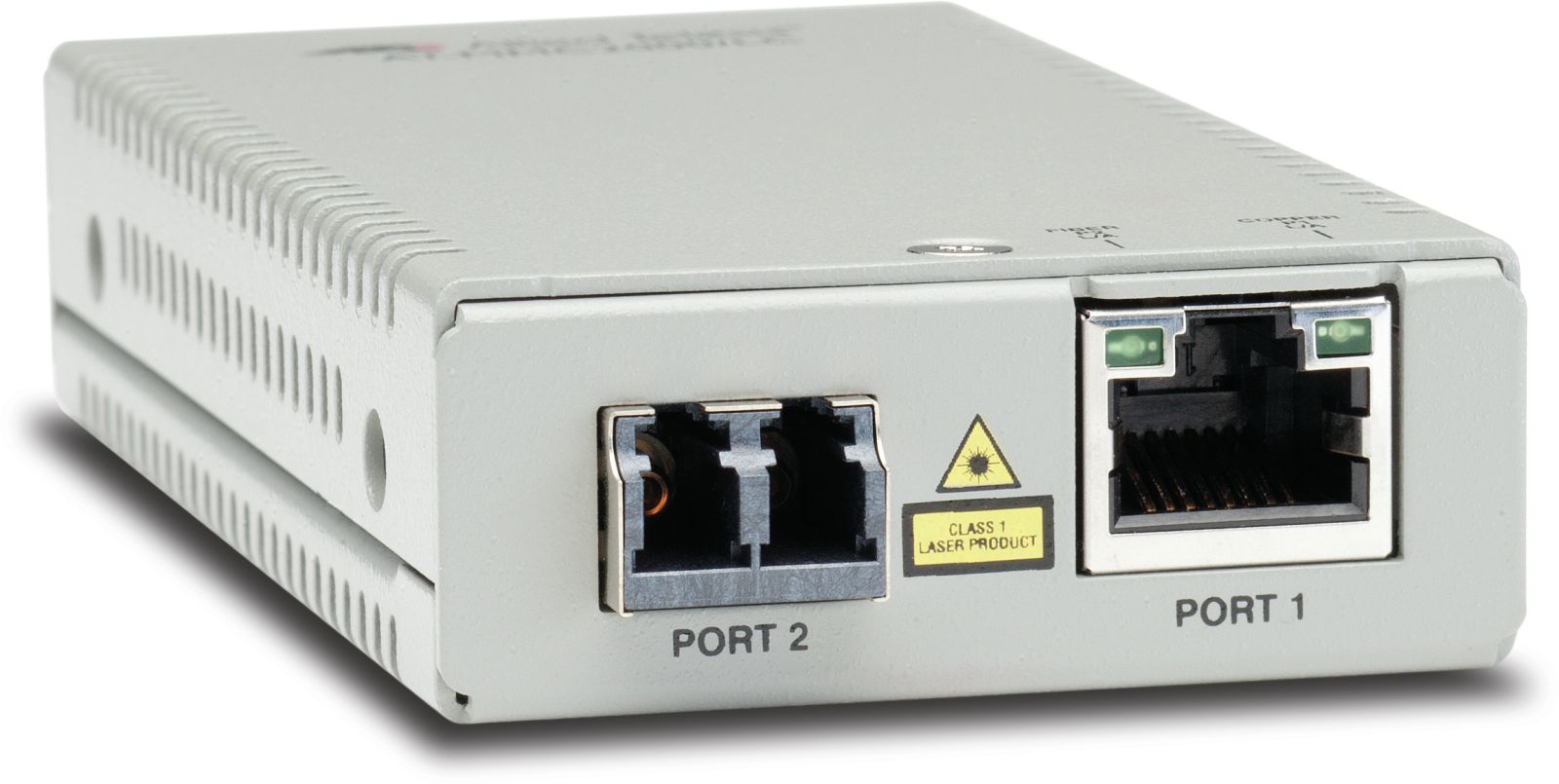

Allied Telesis AT-MMC2000/LC-960
This image may differ from the desired article.
Allied Telesis AT-MMC2000/LC-960Allied Telesis AT-MMC2000/LC-960
305,61 EUR
( 363,68 EUR incl. VAT )
≈ £255.80  |  ≈ $335.87
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >10 pieces
1x Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector
Datasheet:file_download Download
Lieske Part No.:1542391
Mfg Part No: AT-MMC2000/LC-960
UPC/EAN: 0767035218670
Weight:0.505 kg
Type:PERP

Product information for Allied Telesis AT-MMC2000/LC-960:

The Allied Telesis AT-MMC2000/LC-960 is a media converter of the MMC2000 series, specifically designed for use in industrial networks. It is used to convert Ethernet signals over copper cables (10/100/1000Base-T) into light signals for multi-mode fibre cables in the 1000Base-SX standard. This enables extension of the transmission distance over longer ranges, with a maximum reach of up to 2000 metres. The device is compact and suitable for use in Gigabit Ethernet networks, where flexible connection between copper and fibre cables is required.

Applications

The converter is suitable for industrial applications where stable and reliable data transmission over long distances is required. Typical use cases include networking of machines in production facilities, connecting network segments in large halls, or integrating monitoring systems connected to the central network via fibre cables. Support for VLANs in accordance with IEEE 802.1Q enables structured network organisation, improving network security and management.

Functions and Features in Detail

The device features an Ethernet LAN port (RJ-45) on the input side, which receives 10/100/1000Base-T signals. On the output side, two fibre ports with LC connectors are integrated, designed for transmission over multi-mode fibre cables. Supported fibre diameters are 50/125 µm and 62.5/125 µm. The wavelength is 1310 nm, typical for 1000Base-SX technology. The transmit power ranges from -20 dBmW (min) to -14 dBmW (max), while the receive sensitivity is up to -32 dBmW. These values ensure reliable signal transmission over the entire range.

Technology Explained Simply

The converter operates in full-duplex mode, meaning data can be transmitted simultaneously in both directions without impairing transmission. Support for jumbo frames allows transmission of larger data packets, increasing network efficiency, especially in applications with high data traffic. LED indicators for activity and link status enable quick visual inspection of the operating state. Power supply is via a DC connector at 12 V with a current consumption of 0.14 A, with a total power consumption of 1.7 W in standard operation.

Compatibility and Accessories

The converter is compatible with standard Ethernet networks and supports common Ethernet data transfer rates of 10, 100, and 1000 Mbit/s. Use of multi-mode fibre cables with LC connectors is required to achieve full functionality. The devices are designed for use in environments with an operating temperature of 0 to 50 °C and relative humidity of 5 to 95 %. Storage is possible at temperatures from -30 to 70 °C and the same humidity level. The maximum operating altitude is 3048 m, suitable for use in high mountain regions.

Mounting and Installation

The device is not built-in but is designed as a standalone module. Installation is performed via integrated connectors: RJ-45 for the copper cable and LC connectors for the fibre cable. Power supply is via the DC connector. The delivery includes user manual, operating instructions, and quick installation guide, supporting setup and configuration. The compact design with dimensions 54.9 mm (width) × 101.6 mm (depth) × 21.8 mm (height) and a weight of 170 g allows flexible placement, e.g. in enclosures or on walls.

Operational Advantages

Using the Allied Telesis AT-MMC2000/LC-960 enables cost-efficient extension of existing networks without requiring a complete reconfiguration. The combination of copper and fibre cables offers flexibility in network design. Support for VLANs and jumbo frames improves network performance and security. The PoE function reduces the need for additional power supply units, simplifying installation and reducing maintenance costs. The robust construction and certification according to FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI as well as CE, EN55024, EN61000-3-2, EN61000-3-3 ensure compliance with applicable electromagnetic compatibility and safety standards.

Certificates
SafetyFCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
CertificationCE, EN55024, EN61000-3-2, EN61000-3-3
Features
LED indicatorsActivity, Link
Product colourGrey
InternalNo
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface10Base-T, 100Base-T, 1000Base-T
Converter output interface1000Base-SX
Networking standardsIEEE 802.1Q
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Fiber ethernet cabling technology1000BASE‑SX
Duplex systemFull
Jumbo frames supportYes
VLAN supportYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging content
User guideYes
ManualYes
Quick installation guideYes
Performance
Maximum transfer distance2000 m
Wavelength1310 nm
Fiber mode structureMulti-mode
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Tx power (min)-20 dBmW
Tx power (max)-14 dBmW
Rx power (min)-32 dBmW
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity2
Fiber optic connectorLC
DC-in jackYes
Power
Input voltage12 V
Input current0.14 A
Power consumption (typical)1.7 W
Power over Ethernet (PoE)Yes
Weight & dimensions
Width54.9 mm
Depth101.6 mm
Height21.8 mm
Weight170 g


Product data sheet
Datasheet for Allied Telesis AT-MMC2000/LC-960, EAN: 0767035218670

Questions & answers

What is the delivery time of Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector ?

The article Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-MMC2000/LC-960 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-MMC2000/LC-960 ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM LC connector if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
