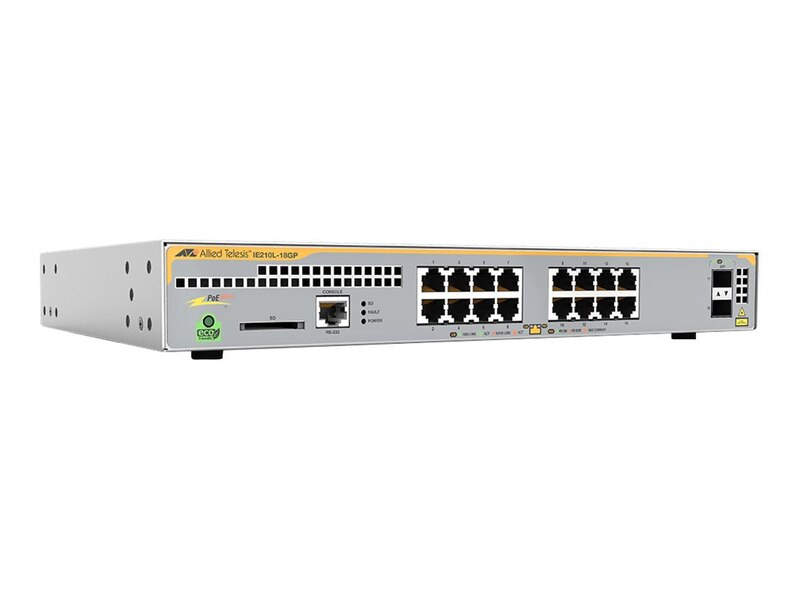

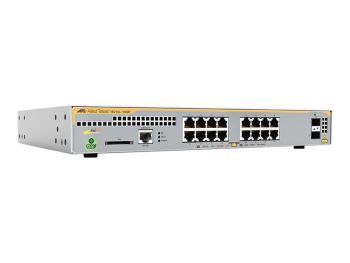

Allied Telesis AT-IE210L-18GP-60 ALLIED Industrial managed PoE+ switch 16x 10/100/1000TX PoE+ ports and 2x 100/1000X SFP
|
2.143,17 EUR |
|
|
( 2.550,37 EUR incl. VAT ) ≈ £1,817.41 | ≈ $2,402.49 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1372728 |
|---|---|
| Mfg Part No: | AT-IE210L-18GP-60 |
| UPC/EAN: | 0767035214474 |
| Weight: | 5.1 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-IE210L-18GP-60:
| Certificates | |
| Certification | UL, cUL, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.8 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 56 µs |
| Latency (1 Gbps) | 7.9 µs |
| Latency (10 Gbps) | 3.4 µs |
| Number of queues | 8 |
| Jumbo frames | 10000 |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-2 (harmonic), EN61000-3-3 (flicker) |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| MIB support | Comprehensive SNMP |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 512 entries |
| Multicast Listener Discovery (MLD) snooping | MLDv1 and v2 |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Virtual LAN features | Policy-based VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLANs | 2048 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 169 BTU/h |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4.35 kg |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 33 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.2 A |
| Power consumption (max) | 21 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 247 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x, Network Access Control (NAC), RADIUS |
| MAC address entries | Blackhole MAC address entries |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-IE210L-18GP-60 ALLIED Industrial managed PoE+ switch 16x 10/100/1000TX PoE+ ports and 2x 100/1000X SFP?
The article Allied Telesis AT-IE210L-18GP-60 ALLIED Industrial managed PoE+ switch 16x 10/100/1000TX PoE+ ports and 2x 100/1000X SFP is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-IE210L-18GP-60 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-IE210L-18GP-60 ALLIED Industrial managed PoE+ switch 16x 10/100/1000TX PoE+ ports and 2x 100/1000X SFP always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-IE210L-18GP-60 ALLIED Industrial managed PoE+ switch 16x 10/100/1000TX PoE+ ports and 2x 100/1000X SFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
