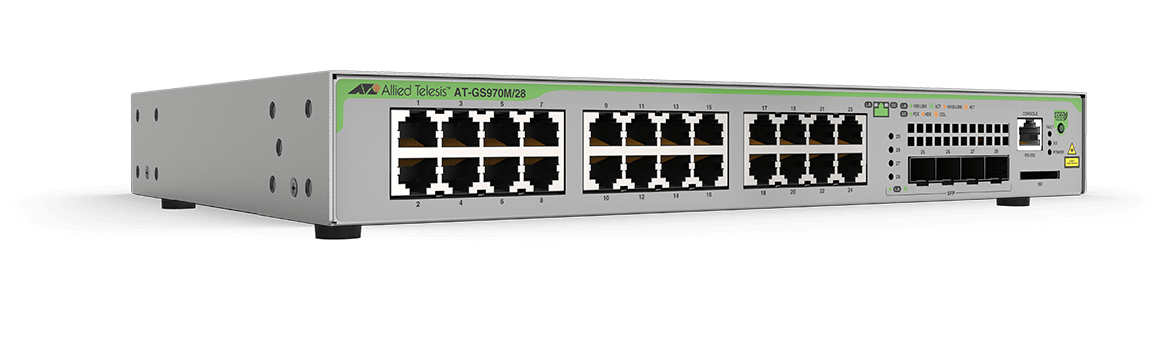

Allied Telesis AT-GS970M/28PS-50 ALLIED 24x 10/100/1000T POE+ ports 4x combo ports 370W POE capacity Fixed one AC power supply EU Power Cord
|
958,62 EUR |
|
|
( 1.140,76 EUR incl. VAT ) ≈ £812.91 | ≈ $1,074.61 plus delivery charges: 83,00 € |
|
| Made to order · Expected to be available from 01.11.2026info_outline | |
| Lieske Part No.: | 1075287 |
|---|---|
| Mfg Part No: | AT-GS970M/28PS-50 |
| UPC/EAN: | 0767035211374 |
| Weight: | 6.34 kg |
| Type: | CPNT |
Product information for Allied Telesis AT-GS970M/28PS-50:
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 8.6 µs |
| Latency (1 Gbps) | 4.3 µs |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 89 BTU/h |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4 kg |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Noise level | 34 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
Questions & answers
What is the delivery time of Allied Telesis AT-GS970M/28PS-50 ALLIED 24x 10/100/1000T POE+ ports 4x combo ports 370W POE capacity Fixed one AC power supply EU Power Cord?
The article Allied Telesis AT-GS970M/28PS-50 ALLIED 24x 10/100/1000T POE+ ports 4x combo ports 370W POE capacity Fixed one AC power supply EU Power Cord is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allied Telesis AT-GS970M/28PS-50 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allied Telesis AT-GS970M/28PS-50 ALLIED 24x 10/100/1000T POE+ ports 4x combo ports 370W POE capacity Fixed one AC power supply EU Power Cord always at the best possible price. We can give you a discount of 2% on Allied Telesis AT-GS970M/28PS-50 ALLIED 24x 10/100/1000T POE+ ports 4x combo ports 370W POE capacity Fixed one AC power supply EU Power Cord if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
