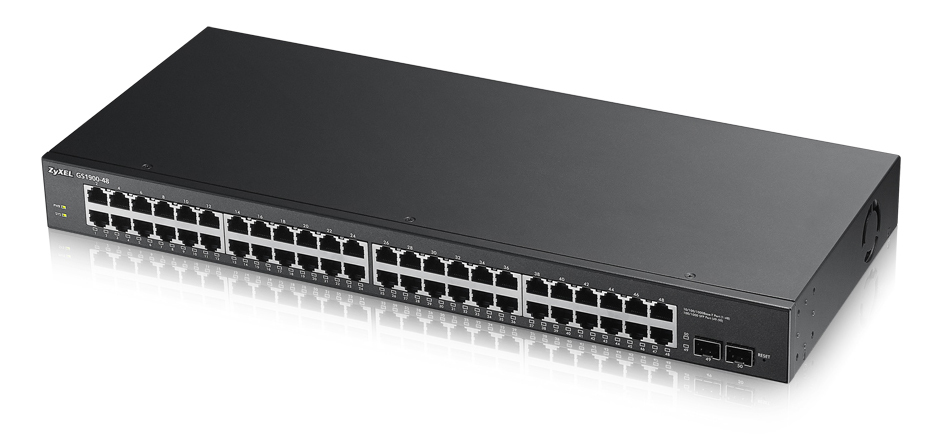

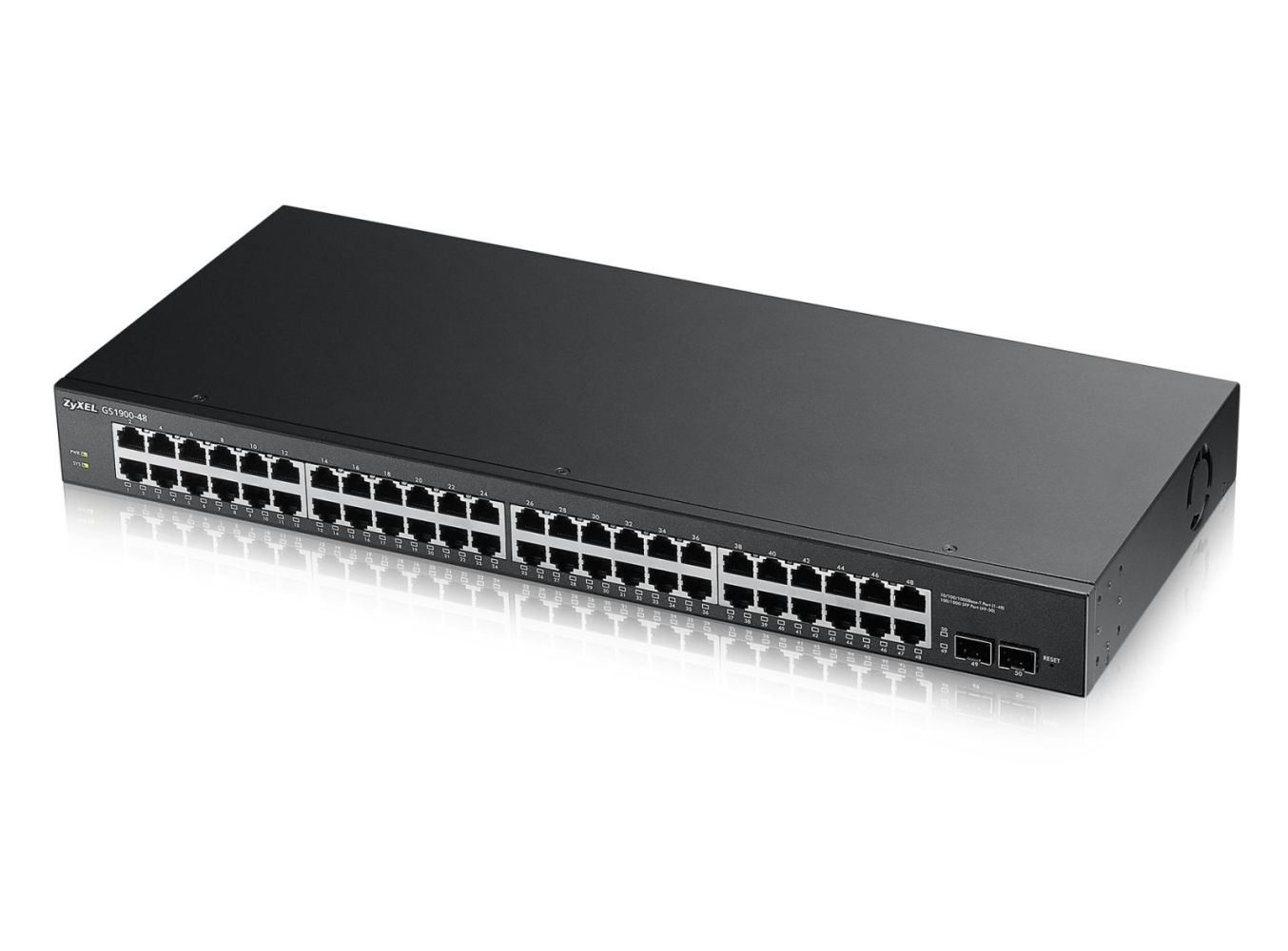

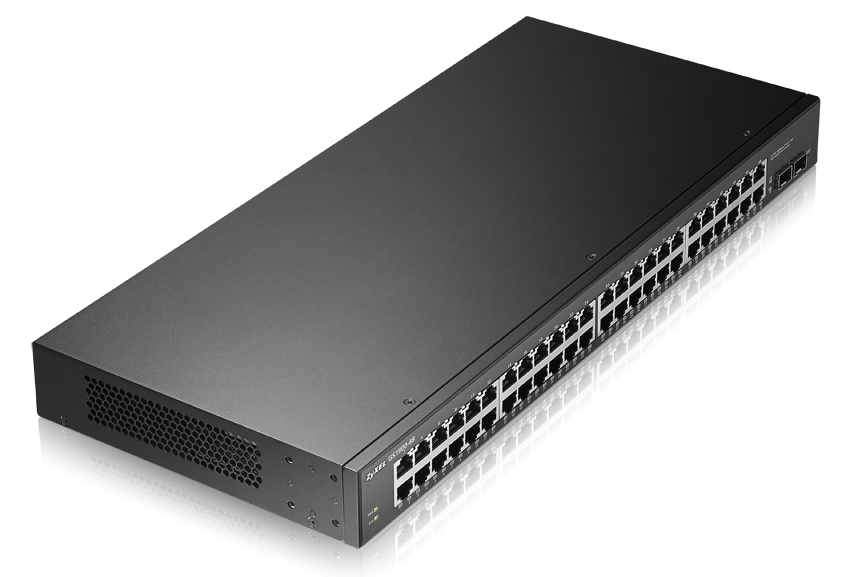

Zyxel Smart Switch 48x Port GbE L2, rackmount content_copy

The Zyxel GS1900 Gigabit Switch Series is ideal for small businesses that want to separate traffic on their growing network but don't have a team of IT experts. These switches with their sophisticated functions offer more flexibility and control options. With built-in support for VLANs, enhanced quality of service (QoS), IGMP snooping, link aggregation (LAG), IPv6 and DoS defense, these switches conveniently separate and prioritize wired and wireless traffic while enabling guest network access and providing full control about the bandwidth between the ports. An easy-to-use setup wizard lets you complete these tasks, making setup and management a breeze.

Highlights

• Smart Managed Ethernet Switch with GbE Uplink
• 48x Gigabit Ethernet port
• 2x Gigabit SFP port
• Smart fan design for almost silent operation
• Simple browser-based switch management, with quick and easy setup wizard
• Switch capacity: 100 Gbit/s
• Suitable for 19 inch rack mounting

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 100 GBit/s (Gbps)

Shipping

• WEEE: 40153029

Ports

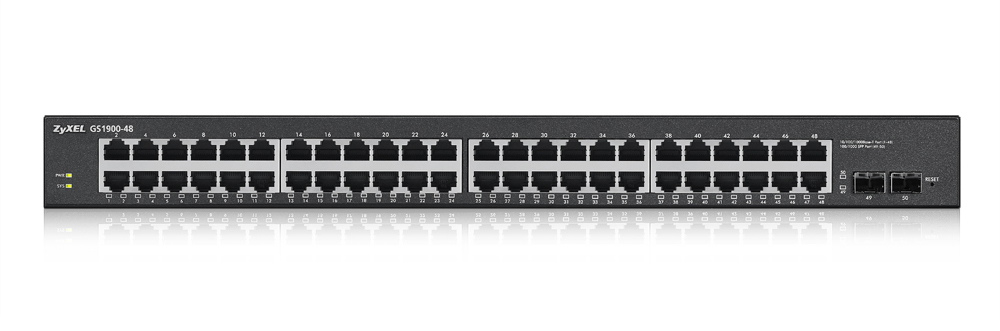

• Total number of copper ports: 48
• Total number of fiber optic ports: 2
• Bandwidth: 10/100/1000 MBit/s
• Main port type: Copper
• Number of RJ45 ports (1G): 48
• Number of SFP ports (1G): 2

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 200 mm
• Width: 440 mm
• Weight: 2.9 kg

Scope of delivery

• Zyxel GS1900-48 V2
• Power cable
• Rack mounting kit

Data transmission
Switching capacity	100 Gbit/s
Throughput	74 Mpps
MAC address table	8000 entries
Design
Product colour	Black
Rack mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch layer	L2
Network
Networking standards	IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	126 BTU/h
Packaging data
Package width	509 mm
Package depth	292 mm
Package height	93 mm
Package weight	4.3 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2

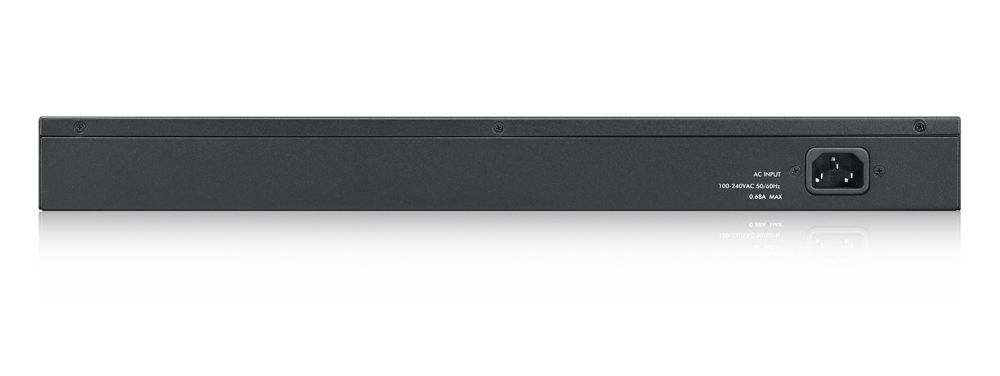

Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width	440 mm
Depth	200 mm
Height	44 mm
Weight	29 kg

---
