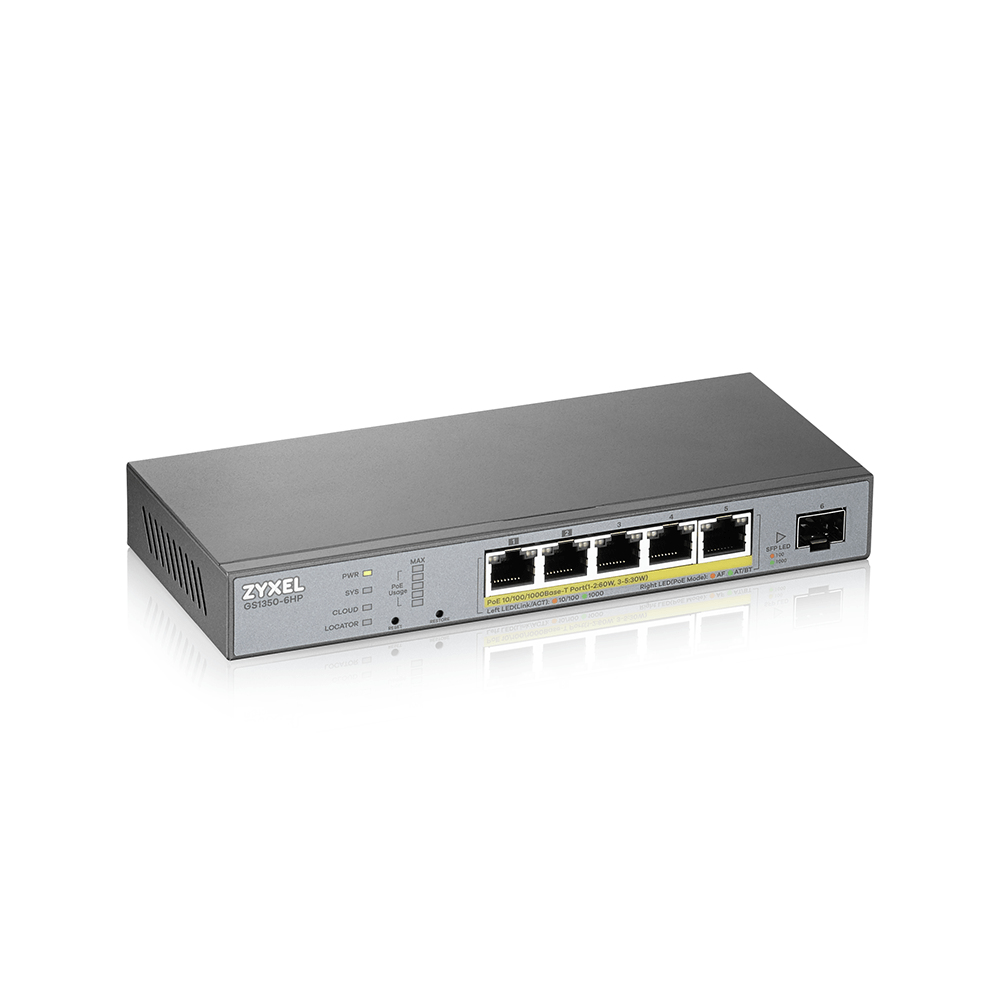

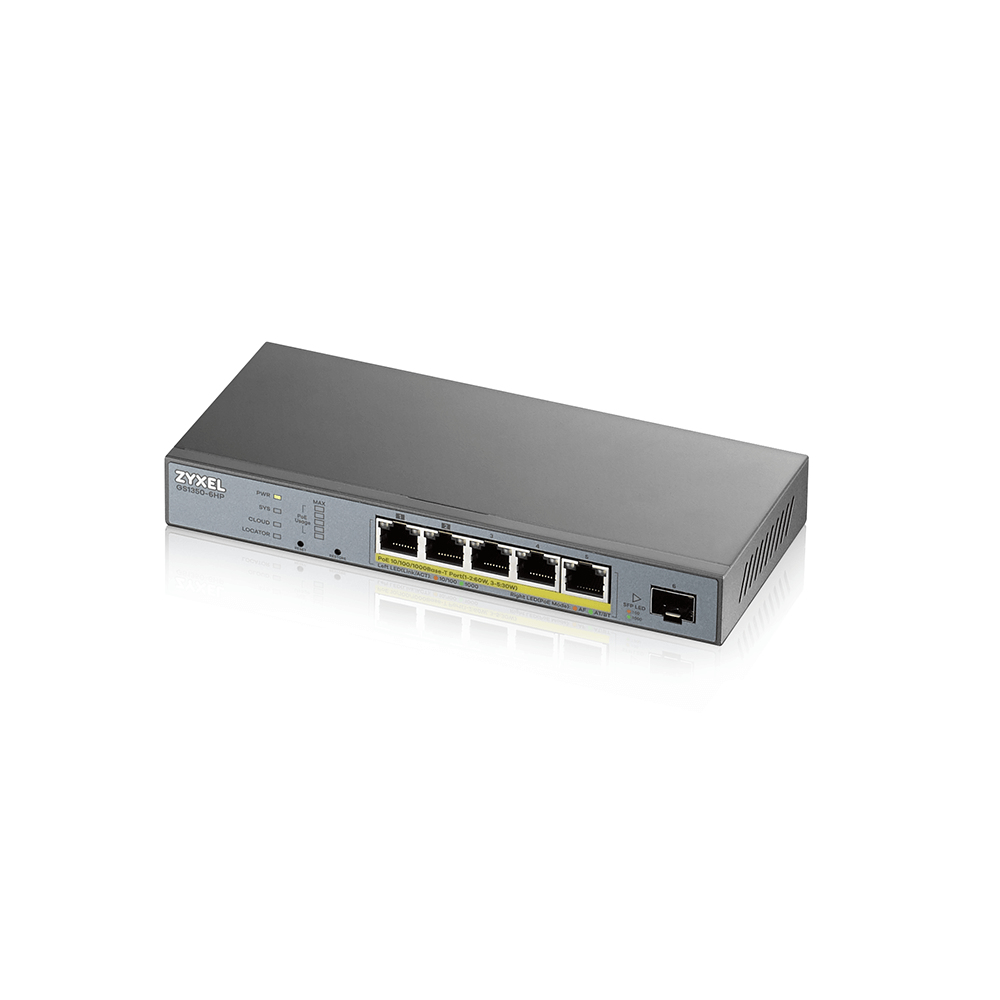

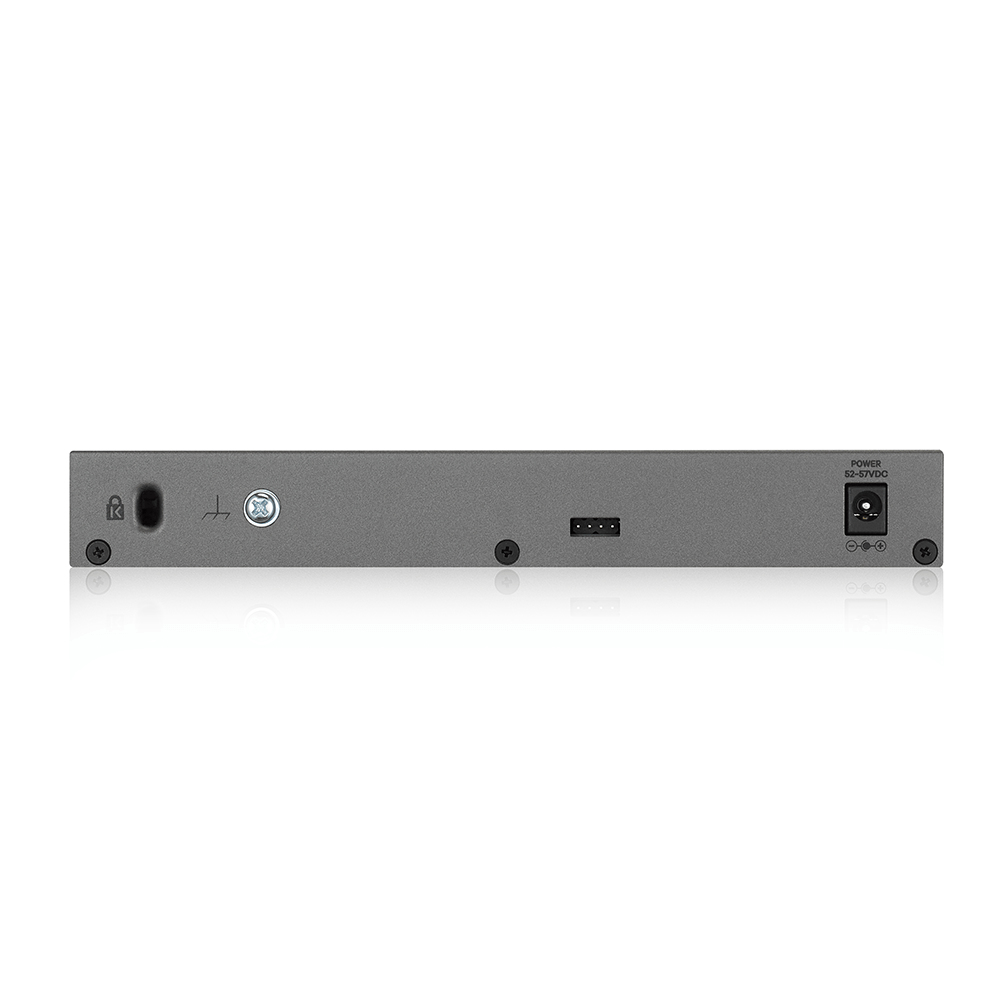

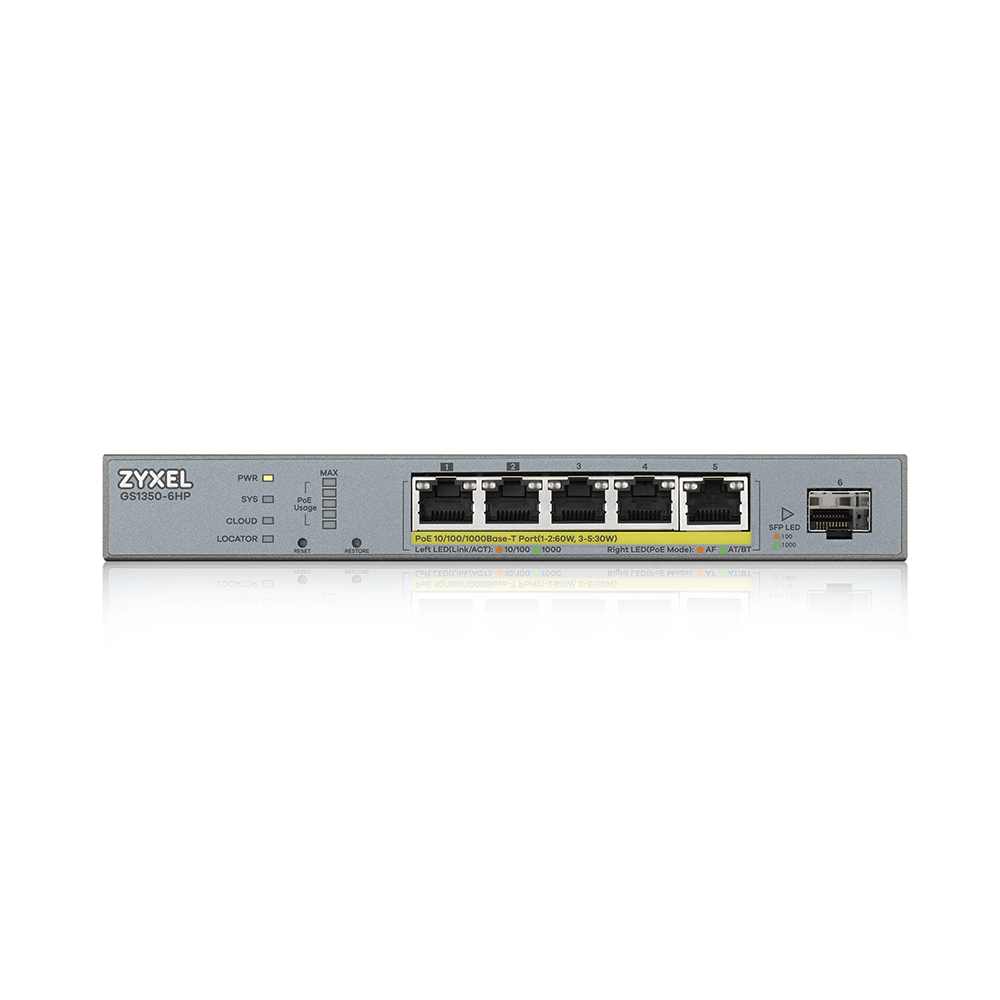

ZYXEL GS1350-6HP 6 Port managed CCTV PoE Switch long range 60W 802.3BT
|
127,62 EUR |
|
|
( 151,87 EUR incl. VAT ) ≈ £106.82 | ≈ $142.30 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1518856 |
| Mfg Part No: | GS1350-6HP-EU0101F |
| UPC/EAN: | 4718937604487 |
| Weight: | 1.197 kg |
Product information for Zyxel GS1350-6HP-EU0101F:
Zyxel stellt den brandneuen Smart-Managed Switch GS1350 für Überwachungsanwendungen vor, der speziell für CCTV entwickelt wurde.
Traditionell liefert der PoE-Switch Strom und Daten innerhalb einer Entfernung von 100 Metern. Die GS1350-Serie erfüllt die Anforderung, IP-Kameras oder PDs (Powered Devices) über das vorhandene Cat 5e-Kabel an entfernten Stellen einzusetzen. Durch die Aktivierung des Modus für erweiterte Reichweite können Implementierungen in bis zu 250 m Entfernung sofort erreicht werden. Sparen Sie sich Geld und Mühe mit nur einem PoE-Switch.
Traditionell liefert der PoE-Switch Strom und Daten innerhalb einer Entfernung von 100 Metern. Die GS1350-Serie erfüllt die Anforderung, IP-Kameras oder PDs (Powered Devices) über das vorhandene Cat 5e-Kabel an entfernten Stellen einzusetzen. Durch die Aktivierung des Modus für erweiterte Reichweite können Implementierungen in bis zu 250 m Entfernung sofort erreicht werden. Sparen Sie sich Geld und Mühe mit nur einem PoE-Switch.
Highlights
- Unmanaged PoE Switch mit GbE Uplink
- Lüfterlos
- 5x 100/1000 Mbps Ports, alle 5 sind PoE-Ports
- 1x Gigabit SFP Port
- Total PoE budget: 60 Watt
- Switch-Kapazität: 12 Gbps
- Wäremableitung: 245.52 BTU/hr
- Bis zu 8 KV ESD (elektrostatische Entladung) und bis zu 4 KV Überspannungsschutz
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Versand
- WEEE: 40153029
Grundeigenschaften
- Farbe: Grau
- Höhe: 26 mm
- Länge/Tiefe: 84 mm
- Breite: 193 mm
- Gewicht: 0.41 kg
Lieferumfang
- Zyxel GS1350-6HP
- Netzteil
- Wandhalterung
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.9 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.525 MB |
| Design | |
| Product colour | Grey |
| LED indicators | |
| Wall mountable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| MIB support | RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113 |
| Web-based management | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN |
| Number of VLANs | 256 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 245.52 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Mean time between failures (MTBF) | 2021885.87 h |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Power | |
| DC input voltage | 52 - 57 V |
| Power consumption (max) | 72 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Security algorithms | SNMP, SNMPv3, SSH, SSL/TLS |
| Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
| IGMP snooping | |
| IGMP proxy | |
| MAC address filtering | |
| Loop protection | |
| Weight & dimensions | |
| Width | 193 mm |
| Depth | 84 mm |
| Height | 26 mm |
| Weight | 410 g |
