VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line
|
12,06 EUR |
|||||||||||
|
incl. 1,85 EUR copper surcharge ( 14,35 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 317112 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G444096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G444096:
Application:
Halogen-free power cables with improved fire performance are used wherever special protection against fire and fire damage for people and property is required and high safety requirements must be met. The cables can be laid indoors, in air or concrete; direct laying in the ground or water is not permitted. However, laying in a pipe is permitted if precautions are taken to ensure that no water collects in the pipe. These cables are suitable for connecting devices of protection class II. When laying, care must be taken to protect the cables from external influences and mechanical damage. The cable has passed the functional integrity test according to DIN 4102 Part 12 (E30) for all standard support systems (cable trays and ladders, ceiling installation) and is therefore suitable for use in fire alarm systems, systems for alerting and giving instructions to people, emergency lighting and other backup lighting in accordance with VDE 108. The test certificate from an official materials testing institute can be provided on request. When planning cable systems with functional integrity, it must be noted that the conductor resistance at a temperature of 800 °C (final temperature for E30 testing) is approximately 4 times higher than at 20 °C.Structure:

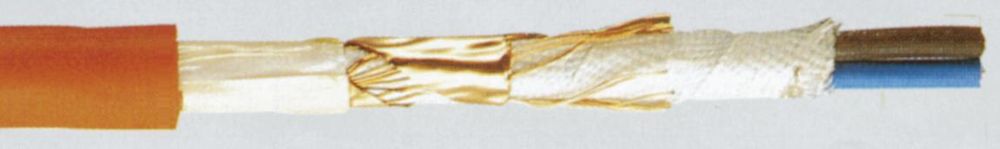

Conductor: bare copper conductor, single or multi-wire
Core insulation: cross-linked halogen-free, ceramizable 2-layer insulation HXI2,
core marking in accordance with VDE 0293-308
Common core sheath
Concentric conductor consisting of bare copper wires with opposing
holding spiral made of copper tape
PP tape
Outer sheath: halogen-free polymer mixture, orange
Technical data:
Nominal voltage: 300/500 V
Test voltage: 2000 V
Temperature range: +5 °C - +70 °C (when laying)
-30 °C - +70 °C (after laying)
Bending radius: 12 x cable diameter
Tests:
Flame retardancy: in accordance with EN 50266-2-4, IEC 60332-3 Cat.C
Insulation integrity FE 180: in accordance with VDE 0472 T. 814
Functional integrity E 90: in accordance with VDE 4102-12
Properties:
halogen-free,
fire-retardant,
minimal smoke development
, no corrosive gases.
Type: NHXCH-E90 4 X 4,0/ 4
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line?
The article VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel G444096 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line always at the best possible price. We can give you a discount of 2% on VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line we can offer you a price of 11,45 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel G444096 NHXCH E90 4x4, 0/4, 0 mm ², halogen-free sheath line via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
