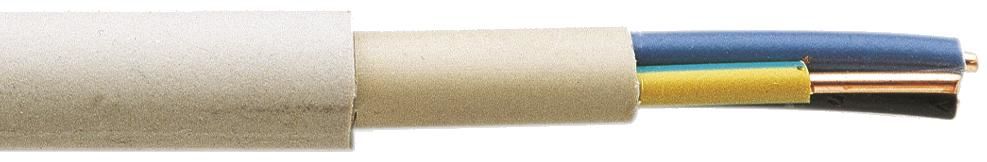

VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable
|
18,51 EUR |
|||||||||||
|
incl. 6,17 EUR copper surcharge ( 22,03 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 288587 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 222612 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 222612:
according to VDE 0250 part 204
Application:
For installations in the home, in industry, in the open, in dry and wet areas, on, in and under plaster, in masonry and in concrete (except vibrated or compressed concrete). For outdoor use, the cable must be protected from direct sunlight.
Building:
Conductor: bare copper wire
- 10 mm ² solid
> 10 mm ² stranded
Insulation: PVC according to VDE 0207 part 4
Marking: according to VDE 0293
Filling compound
Sheath: Grey PVC
Specifications:
Rated voltage: 300/500 V
Test voltage: 2000 V
Temperature
range: +5 ° C +70 ° C (during installation)
-40 ° C +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 4 x cable diameter
(Fixed installation)
* Ajar VDE
Cable NYM-J
according to VDE 0250 part 204
Application:
For installations in the home, in industry, in the open, in dry
and wet locations, on, in and under plaster, in masonry and concrete
(Except vibrated or compressed concrete). For outdoor applications
tion must protect the line from direct sunlight are
the.
Building:
Conductor: bare copper wire- 10 mm ² solid
> 10 mm ² stranded
Insulation: PVC according to VDE 0207 part 4
Marking: according to VDE 0293 core covering
Sheath: Grey PVC
Specifications:
Rated voltage: 300/500 VTest voltage: 2000 V
Temperature range: +5 ° C +70 ° C (during installation)
-40 ° C +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 4 x cable diameter
(Fixed installation)
* VDE - based
Number of cores x cross-section mm ²: 5 x 16.0 TR
Weight (kg / m%): 124.9
Outer diameter approx: 24.4
Copper content (kg / m%): 76.8
Type: NYM-J 5X16 TR
Quantity: 1 MTR
Type: NYM-J 5X16 TR
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable?
The article VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 222612 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 meters of VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable we can offer you a price of 18,14 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 222612 NYM-J 5x16 sqmm RM, PVC insulated sheathed cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
