Ubiquiti U Fiber, 8-port GPON OLT
|
1.263,65 EUR 1.309,60 EUR |
|
|
( 1.503,74 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1023652 |
|---|---|
| Mfg Part No: | UF-OLT |
| Weight: | 6.75 kg |

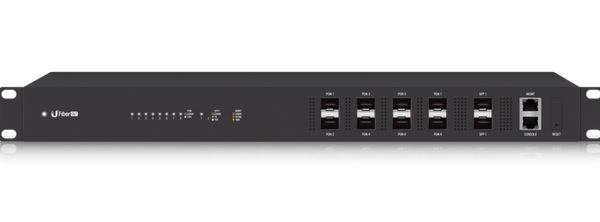

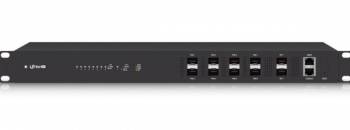

Product information for Ubiquiti UF-OLT:
Eight-port GPON Optical Line Terminal (OLT) to manage fiber optic Internet services for up to 1,024 clients (128 per port). GPON. 2.488 Gbps down/1.244 Gbps stream capacity
1024 client capacity (8 ports)
(2) 10G SFP+ uplink ports
1U rack mount
Power redundancy support Technical specifications Mechanical Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72 inches) Weight Without mounting brackets: 4.4 kg (9.70 lb)
With mounting brackets: 4.5 kg (9.91 lb) Hardware Processor MIPS 1004Kc 880 MHz dual-core Data Port Interfaces (8) GPON ports (2.488 Gbps TX/1.244 Gbps RX per port)
(2) 1G/10G SFP+ ports Serial console port interfaces (1) RJ45 Ethernet port
(1) RJ45 Serial Port Max Power Consumption 40W (without SFP transceiver) Power Method 110-240VAC Modular Power Supply Power Supply (1) Hot-swappable AC/DC 100W power supply (included) Supported voltage range AC -Input: 100 to 240 VAC Button Reset System Memory 512MB DDR3, 512MB NAND LEDs
System
PON data ports
SFP+ data ports
RJ45 port (MGMT).
Status Link
/
Activity Link / Activity Link / Activity Link
/ Activity GPON SFP OLT Transceiver
(UF-GP-B+) Single Fiber, SM SC/UPC, 20km,
1490nm TX/1310nm RX,
ITU-T G984.2 Class B+ Rack Mount Yes Operating Temperature - 10 to 45°C (14 to 113°F) Operating Humidity 10 - 90% non-condensing Certifications CE, FCC, IC
1024 client capacity (8 ports)
(2) 10G SFP+ uplink ports
1U rack mount
Power redundancy support Technical specifications Mechanical Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72 inches) Weight Without mounting brackets: 4.4 kg (9.70 lb)
With mounting brackets: 4.5 kg (9.91 lb) Hardware Processor MIPS 1004Kc 880 MHz dual-core Data Port Interfaces (8) GPON ports (2.488 Gbps TX/1.244 Gbps RX per port)
(2) 1G/10G SFP+ ports Serial console port interfaces (1) RJ45 Ethernet port
(1) RJ45 Serial Port Max Power Consumption 40W (without SFP transceiver) Power Method 110-240VAC Modular Power Supply Power Supply (1) Hot-swappable AC/DC 100W power supply (included) Supported voltage range AC -Input: 100 to 240 VAC Button Reset System Memory 512MB DDR3, 512MB NAND LEDs
System
PON data ports
SFP+ data ports
RJ45 port (MGMT).
Status Link
/
Activity Link / Activity Link / Activity Link
/ Activity GPON SFP OLT Transceiver
(UF-GP-B+) Single Fiber, SM SC/UPC, 20km,
1490nm TX/1310nm RX,
ITU-T G984.2 Class B+ Rack Mount Yes Operating Temperature - 10 to 45°C (14 to 113°F) Operating Humidity 10 - 90% non-condensing Certifications CE, FCC, IC
Questions & answers
What is the delivery time of Ubiquiti U Fiber, 8-port GPON OLT?
The article Ubiquiti U Fiber, 8-port GPON OLT is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UF-OLT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti U Fiber, 8-port GPON OLT always at the best possible price. We can give you a discount of 2% on Ubiquiti U Fiber, 8-port GPON OLT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
