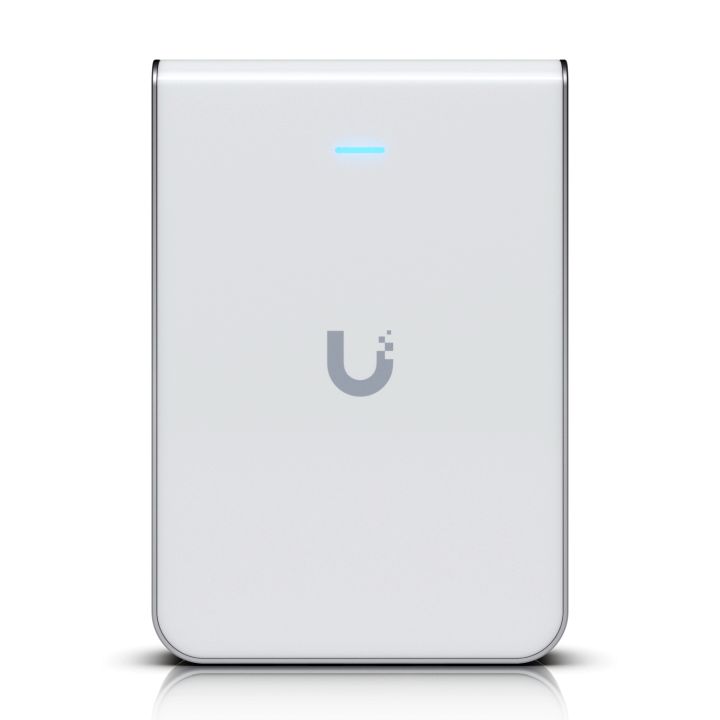

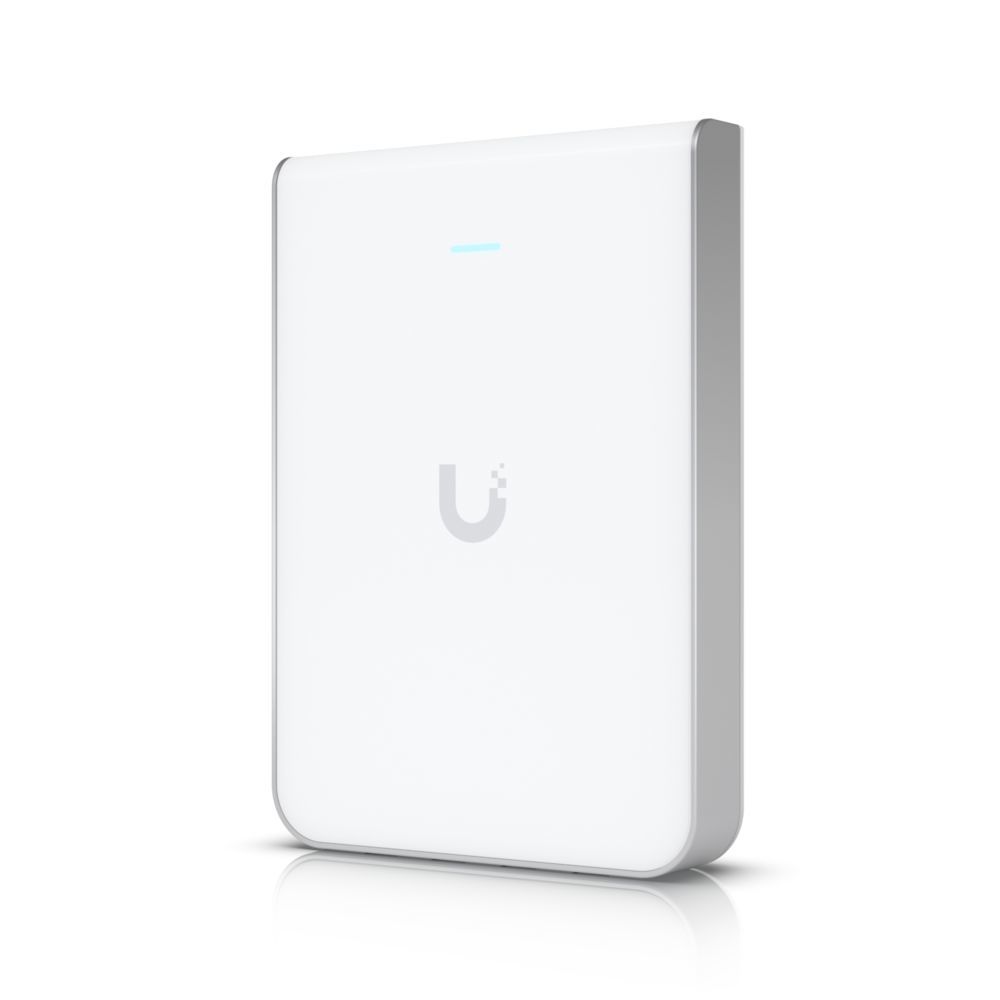

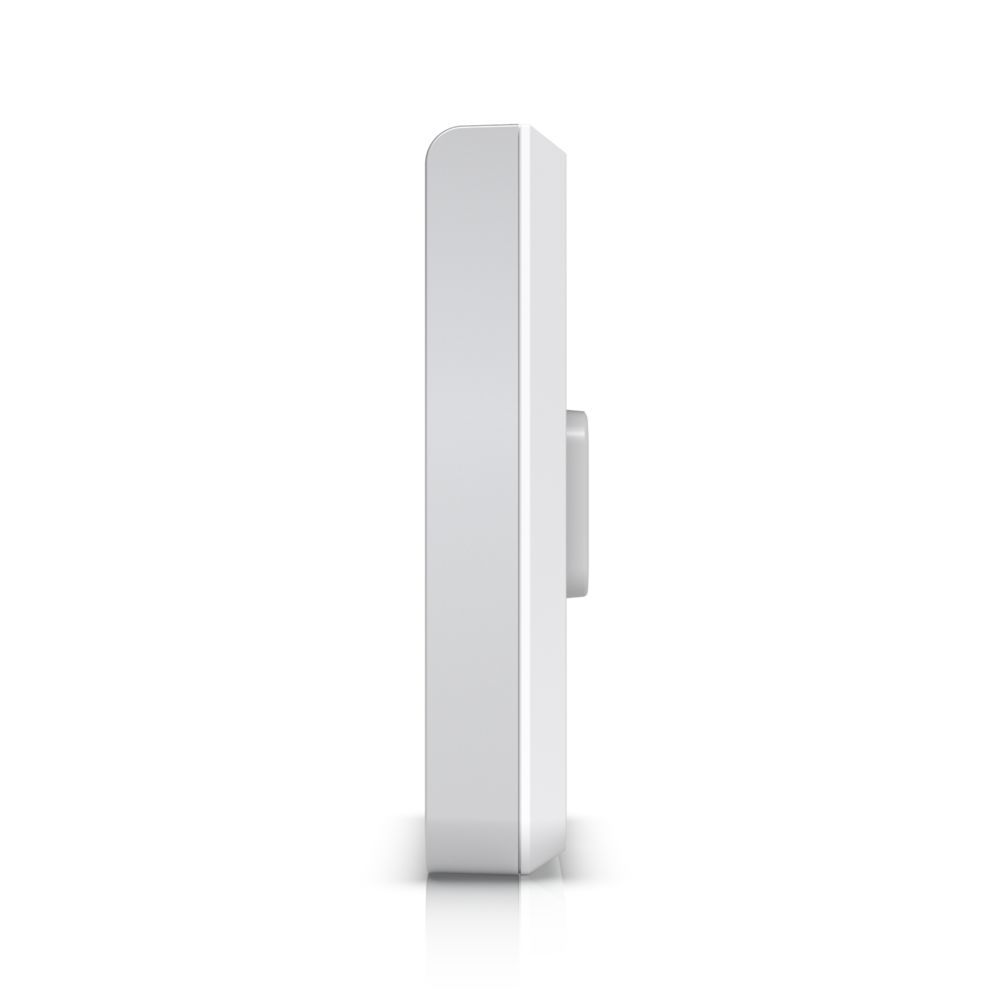

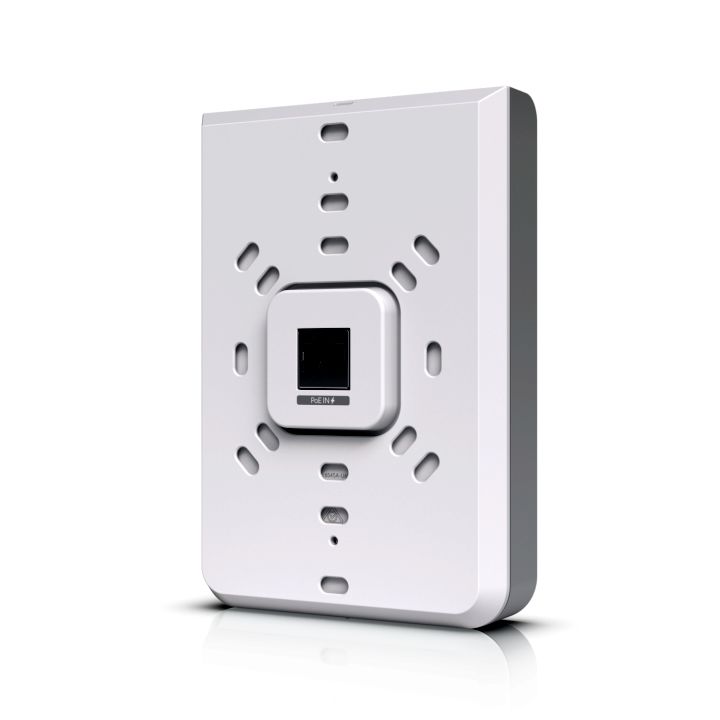

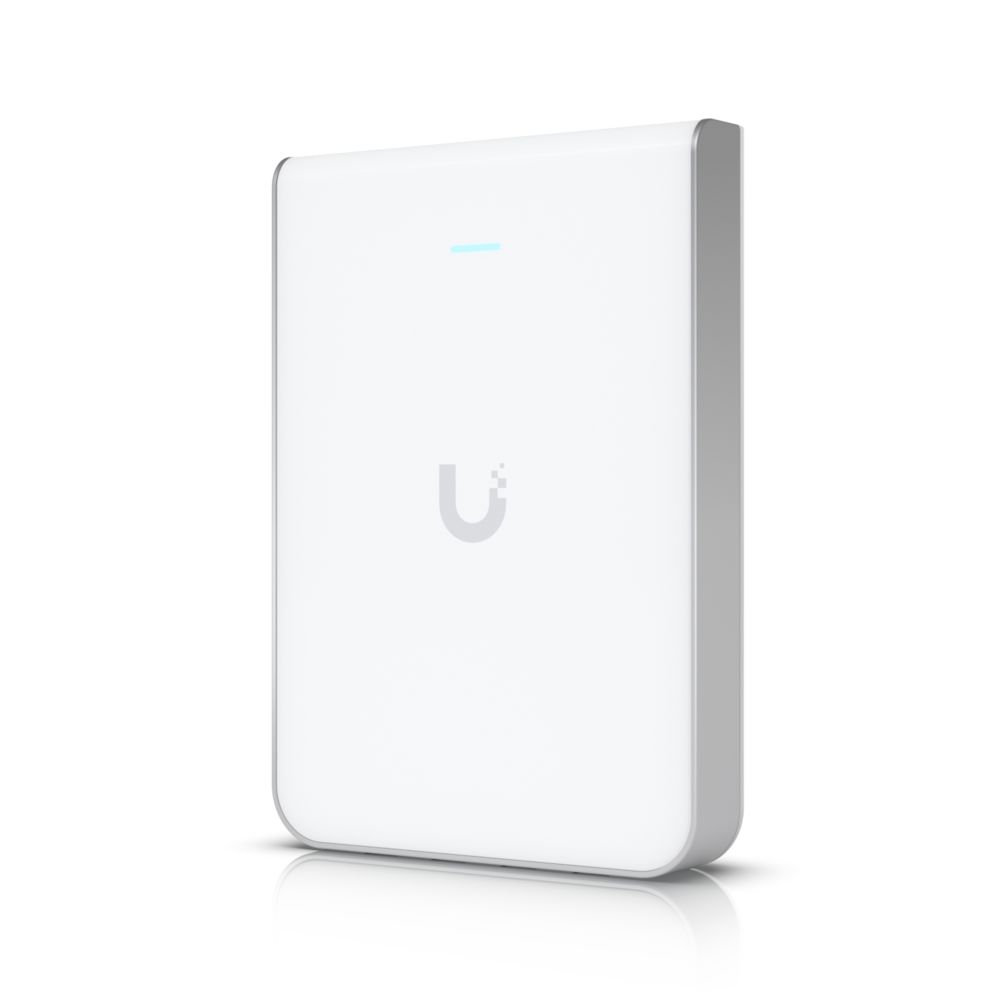

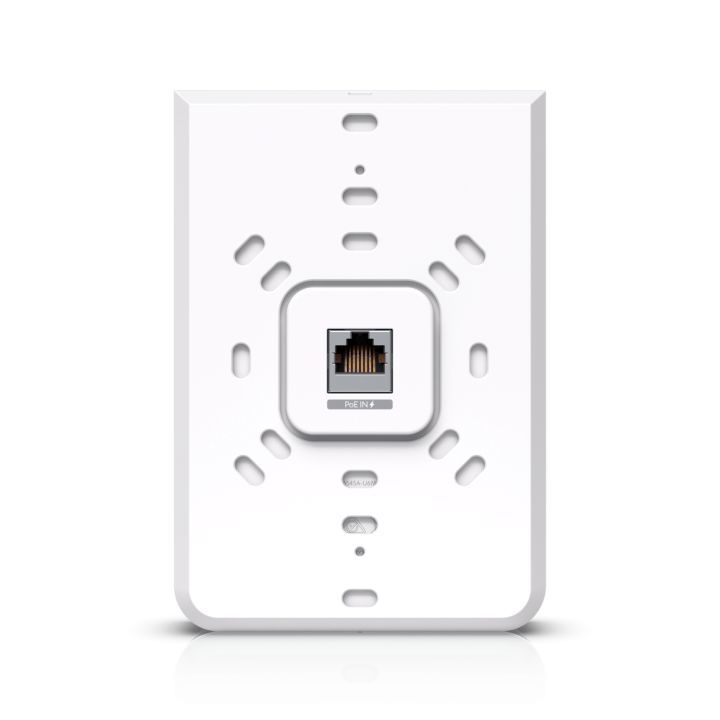

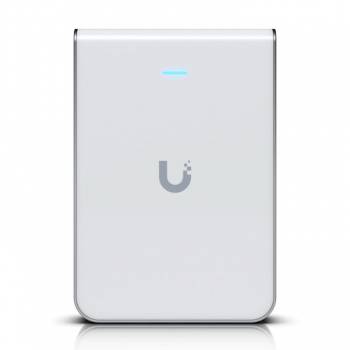

Ubiquiti Unifi Access Point In-Wall/ WIFI 6 / Indoor / 4x4 MU-MIMO / U6-IW
|
166,55 EUR 172,61 EUR |
|
|
( 198,19 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1705928 |
|---|---|
| Mfg Part No: | U6-IW |
| Weight: | 0.46 kg |
Further Access Points from UbiquitiFurther products in category Access Points
All products of Ubiquiti
Product information for Ubiquiti U6-IW:
Wall-mounted WiFi 6 access point with integrated PoE switch. 115 m² (1,250 ft²) coverage
Over 300 connected devices
WiFi6 (4x4 MIMO)
Powered via PoE*
Technical specifications Mechanical Dimensions 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 3,3 cm ( 1,3 inch )) Weight 460 g (1.01 pounds) Housing materials Plastic, aluminum Mounting material Aluminum Hardware Network interface (1) Data input: 1GbE RJ45 port

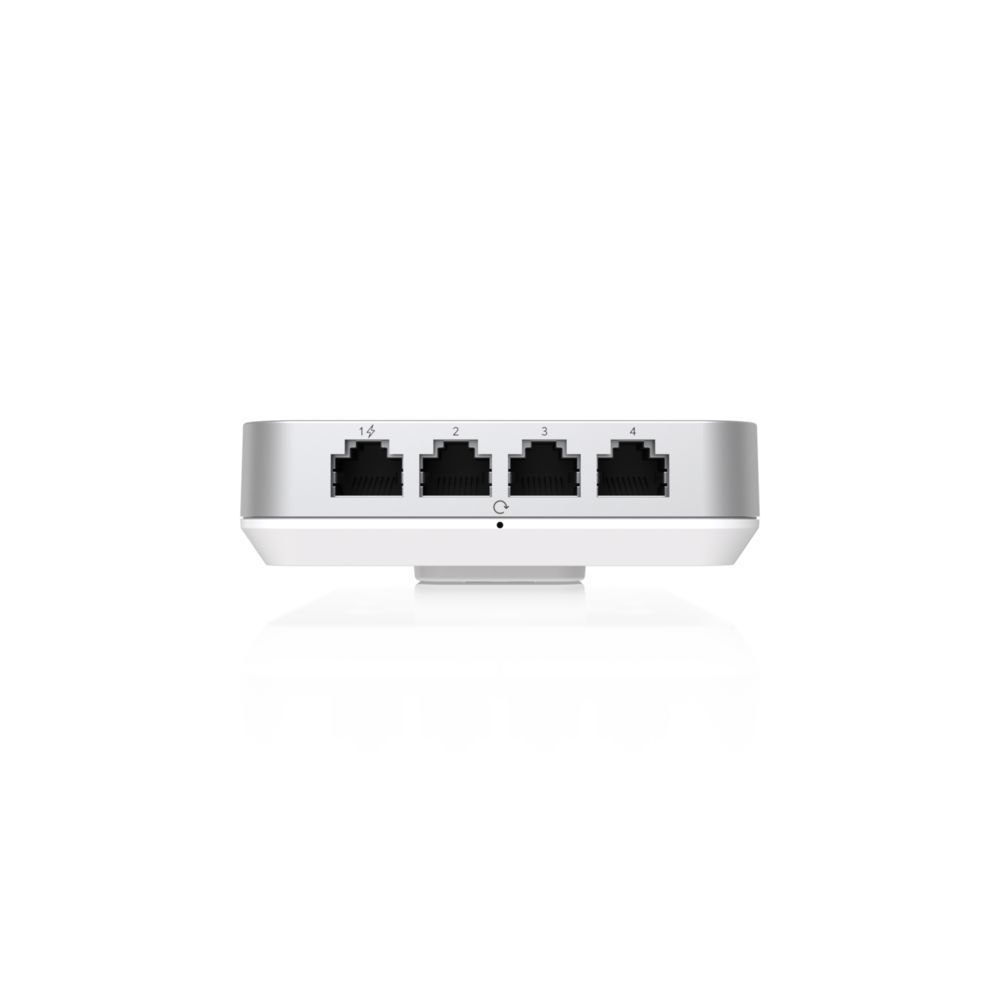

(4) Data output: 1GbE RJ45 ports Management interface Ethernet
-Bluetooth PoE interface (1) PoE input (PoE output not used)
(1) PoE output (PoE+ switch required) Power method PoE power supply UniFi PoE switch
48 V, 0.5 A PoE adapter (optional) Max. power consumption Without PoE output: 13.5 W Maximum PoE wattage per port according to PSE 15.4 W*
*Requires a PoE+ switch Voltage range PoE mode 44-57 V DC Max. transmit power
2.4 GHz
5 GHz
22 dBm
26 dBm MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps Antenna gain
2.4 GHz
5 GHz
5 dBi
5.9 dBi LED White Blue Button Factory reset Operating temperature -30 to 60°C (-22 to 140°F) Operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software WLAN standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS rate limiting per user Guest traffic isolation Supported Concurrent clients 300+ DFS without waiting time Yes*
*Will be available with upcoming firmware Versions supported. Supported data rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11n (WiFi 4) 6.5 Mbit/s to 600 Mbit/s (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbit/s to 3.4 Gbit /s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbit/s to 4.8 Gbit/s (MCS0 - MCS11 NSS1/2/ 3/4, HE 20/40/80/160) Application requirements UniFi network version 6.4.52 and higher
Over 300 connected devices
WiFi6 (4x4 MIMO)
Powered via PoE*
Technical specifications Mechanical Dimensions 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 3,3 cm ( 1,3 inch )) Weight 460 g (1.01 pounds) Housing materials Plastic, aluminum Mounting material Aluminum Hardware Network interface (1) Data input: 1GbE RJ45 port
(4) Data output: 1GbE RJ45 ports Management interface Ethernet
-Bluetooth PoE interface (1) PoE input (PoE output not used)
(1) PoE output (PoE+ switch required) Power method PoE power supply UniFi PoE switch
48 V, 0.5 A PoE adapter (optional) Max. power consumption Without PoE output: 13.5 W Maximum PoE wattage per port according to PSE 15.4 W*
*Requires a PoE+ switch Voltage range PoE mode 44-57 V DC Max. transmit power
2.4 GHz
5 GHz
22 dBm
26 dBm MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps Antenna gain
2.4 GHz
5 GHz
5 dBi
5.9 dBi LED White Blue Button Factory reset Operating temperature -30 to 60°C (-22 to 140°F) Operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software WLAN standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS rate limiting per user Guest traffic isolation Supported Concurrent clients 300+ DFS without waiting time Yes*
*Will be available with upcoming firmware Versions supported. Supported data rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11n (WiFi 4) 6.5 Mbit/s to 600 Mbit/s (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbit/s to 3.4 Gbit /s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbit/s to 4.8 Gbit/s (MCS0 - MCS11 NSS1/2/ 3/4, HE 20/40/80/160) Application requirements UniFi network version 6.4.52 and higher
