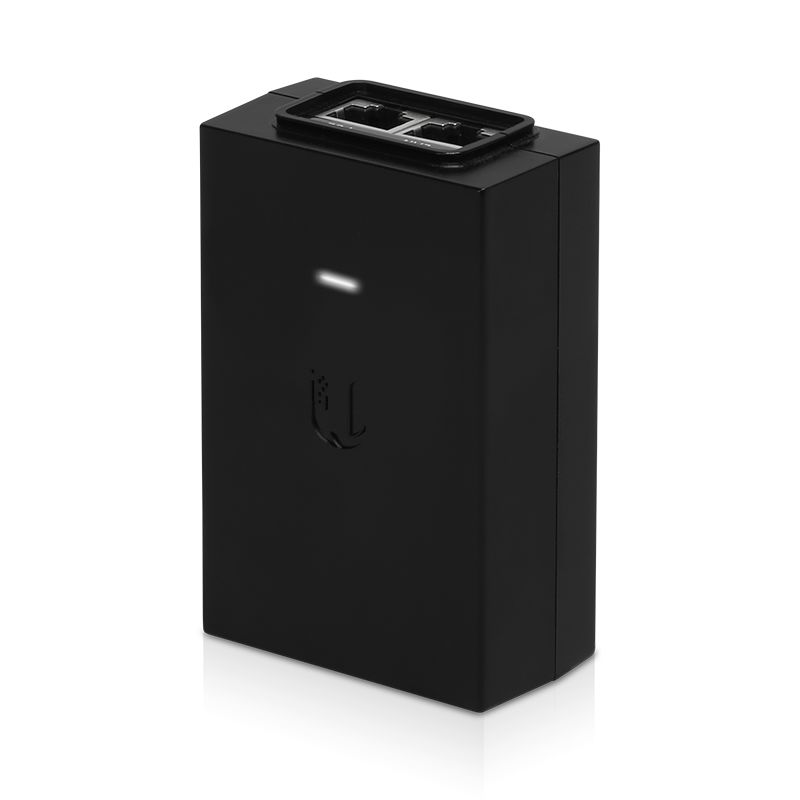

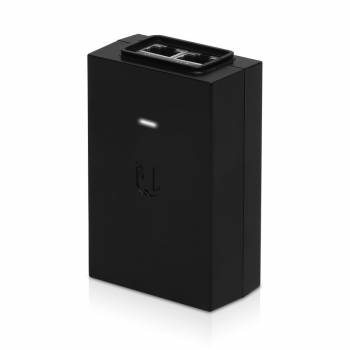

Ubiquiti POE-48-24W-G
POE Injector, 48VDC, 24W (RocketTi, UAP-Pro)
|
13,15 EUR 13,63 EUR |
|||||||||||
|
( 15,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 382589 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | POE-48-24W-G | ||||||||||
| Weight: | 0.33 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Access Points from UbiquitiFurther products in category Access Points
All products of Ubiquiti
Product information for Ubiquiti POE-48-24W-G:
Ubiquiti POE Injector, 48VDC, 24W (RocketTi, UAP-Pro)
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
91.8 x 59.9 x 33 mm
Weight
158.5 g (5:59 oz) Output Volage 48VDC @ 0.5A Gigabit LAN port
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.6A @ 120VAC, 0.4A @ 240VAC Inrush Current <60A @ 120VAC peak, <120A Peak @ 230VAC
Efficiency
80 +% Output Ripple 1% Max. Switching Frequency
65 kHz
Line Regulation ± 1% Load regulation
± 3%
4 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
91.8 x 59.9 x 33 mm
Weight
158.5 g (5:59 oz) Output Volage 48VDC @ 0.5A Gigabit LAN port
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.6A @ 120VAC, 0.4A @ 240VAC Inrush Current <60A @ 120VAC peak, <120A Peak @ 230VAC
Efficiency
80 +% Output Ripple 1% Max. Switching Frequency
65 kHz
Line Regulation ± 1% Load regulation
± 3%
4 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
Questions & answers
What is the delivery time of Ubiquiti POE-48-24W-G POE Injector, 48VDC, 24W (RocketTi, UAP-Pro)?
The article Ubiquiti POE-48-24W-G POE Injector, 48VDC, 24W (RocketTi, UAP-Pro) is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti POE-48-24W-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti POE-48-24W-G POE Injector, 48VDC, 24W (RocketTi, UAP-Pro) always at the best possible price. We can give you a discount of 2% on Ubiquiti POE-48-24W-G POE Injector, 48VDC, 24W (RocketTi, UAP-Pro) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Ubiquiti POE-48-24W-G POE Injector, 48VDC, 24W (RocketTi, UAP-Pro) we can offer you a price of 12,76 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
