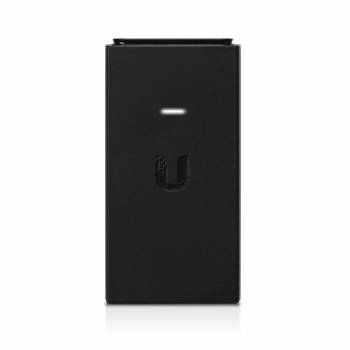

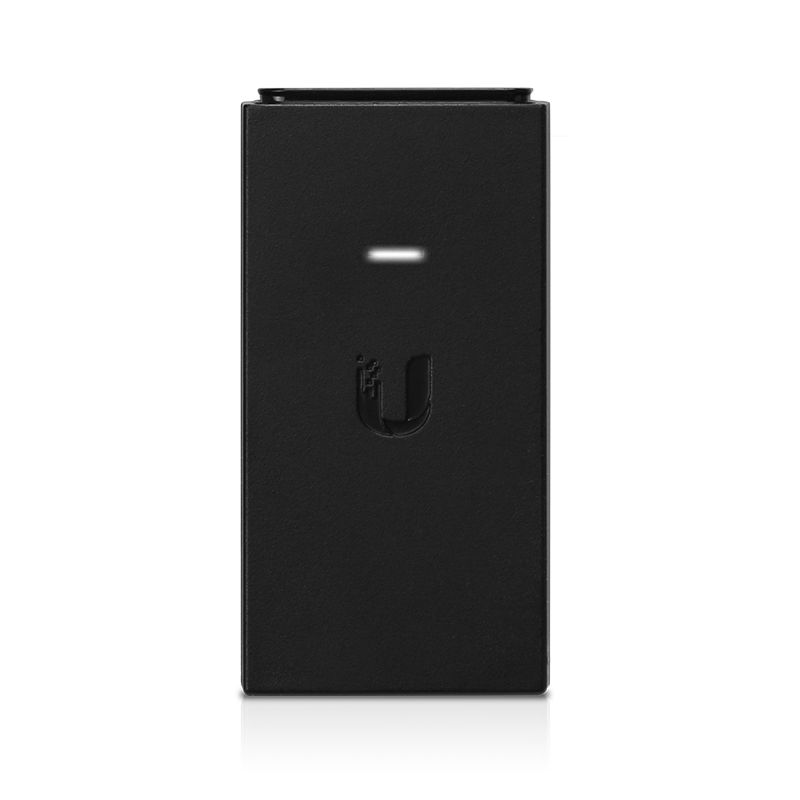

Ubiquiti POE-24-12W POE injector, 24VDC, 12W
|
-14% 6,10 EUR 7,10 EUR |
|||||||||||
|
( 7,26 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 382598 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | POE-24-12W | ||||||||||
| Weight: | 0.25 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Access Points from UbiquitiFurther products in category Access Points
All products of Ubiquiti
Product information for Ubiquiti POE-24-12W:
Ubiquiti POE Injector, 24VDC, 12W
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
87 x 84 x 29.2 mm
Weight
92 g (3.25 g) Output Volage 24VDC @ 0.5A Remote Reset Capability
YES
Reset Button
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current <30A @ 120VAC peak, <60A @ 230VAC peak
Efficiency
75 +% Output Ripple 1% Max. Switching Frequency
50 kHz
Line Regulation ± 1% Load regulation
± 3%
2 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
87 x 84 x 29.2 mm
Weight
92 g (3.25 g) Output Volage 24VDC @ 0.5A Remote Reset Capability
YES
Reset Button
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current <30A @ 120VAC peak, <60A @ 230VAC peak
Efficiency
75 +% Output Ripple 1% Max. Switching Frequency
50 kHz
Line Regulation ± 1% Load regulation
± 3%
2 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
Questions & answers
What is the delivery time of Ubiquiti POE-24-12W POE injector, 24VDC, 12W?
The article Ubiquiti POE-24-12W POE injector, 24VDC, 12W is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti POE-24-12W to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti POE-24-12W POE injector, 24VDC, 12W always at the best possible price. We can give you a discount of 2% on Ubiquiti POE-24-12W POE injector, 24VDC, 12W if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 pieces of Ubiquiti POE-24-12W POE injector, 24VDC, 12W we can offer you a price of 6,01 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
