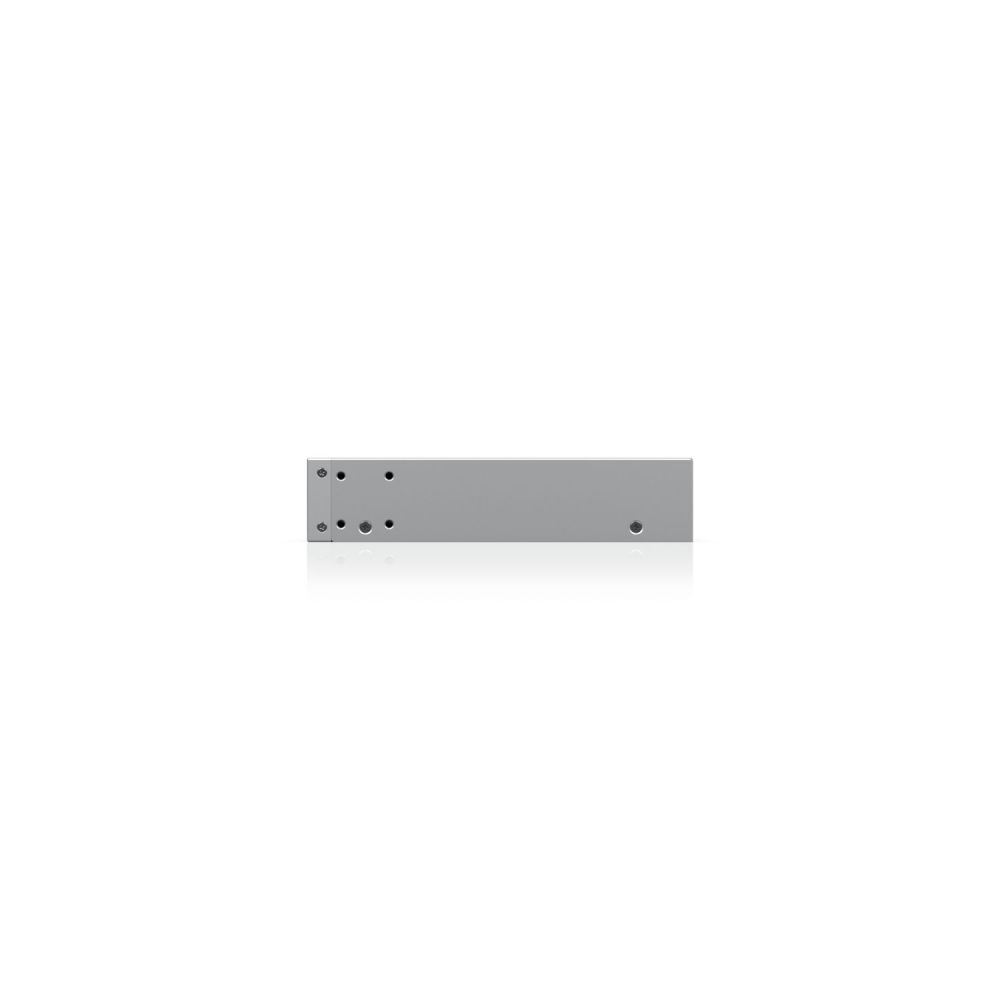

UBIQUITI NETWORKS USW-24-POE Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP /
|
347,67 EUR |
|
|
( 413,73 EUR incl. VAT ) ≈ £295.52 | ≈ $390.43 plus delivery charges: 53,00 € |
|
| Made to order · Delivery date not yet confirmedinfo_outline | |
| Lieske Part No.: | 1788170 |
|---|---|
| Mfg Part No: | USW-24-POE |
| UPC/EAN: | 817882028554 |
| Weight: | 4.1 kg |
Product information for UBIQUITI NETWORKS USW-24-POE:
A 24-port Layer 2 PoE switch with a fanless cooling system. (16) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
Total 95W PoE availability
Fanless, silent cooling
Technical specifications Mechanical Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7. 9 x 4,3 cm ( 1,7 inch )) Weight Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb) Housing material SGCC steel Hardware Management interface Ethernet In-band network interface (24) GbE RJ45 ports
(2) 1G SFP ports PoE interface (16) PoE/PoE+ (Pins 1, 2+ 3, 6-) Total non-blocking throughput 26 Gbps Switching power 52 Gbps Forwarding rate 38.69 Mpps Power method Universal input, 100-240V AC, 50/60 Hz Power supply AC/DC, internal, 120W Supported voltage range 100-240V AC Max. power consumption 25W (without PoE output) Total available PoE 95W Max. PoE wattage per port according to PSE PoE+: 32W Voltage range PoE mode PoE: 44-57V
PoE+: 50-57V ESD/EMP protection Air: ± 16kV, Contact: ± 12kV LCM display (1) 3,3 cm ( 1,3 inch ) touch screen button Factory Reset Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature -5 to 40°C (23 to 104°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC LEDs System Status Ethernet PoE
Speed/Link/Activity SFP Link/Activity Application Requirements UniFi Network Version 7.2.94 and higher
(2) 1G SFP ports
Total 95W PoE availability
Fanless, silent cooling
Technical specifications Mechanical Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7. 9 x 4,3 cm ( 1,7 inch )) Weight Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb) Housing material SGCC steel Hardware Management interface Ethernet In-band network interface (24) GbE RJ45 ports
(2) 1G SFP ports PoE interface (16) PoE/PoE+ (Pins 1, 2+ 3, 6-) Total non-blocking throughput 26 Gbps Switching power 52 Gbps Forwarding rate 38.69 Mpps Power method Universal input, 100-240V AC, 50/60 Hz Power supply AC/DC, internal, 120W Supported voltage range 100-240V AC Max. power consumption 25W (without PoE output) Total available PoE 95W Max. PoE wattage per port according to PSE PoE+: 32W Voltage range PoE mode PoE: 44-57V
PoE+: 50-57V ESD/EMP protection Air: ± 16kV, Contact: ± 12kV LCM display (1) 3,3 cm ( 1,3 inch ) touch screen button Factory Reset Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature -5 to 40°C (23 to 104°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC LEDs System Status Ethernet PoE
Speed/Link/Activity SFP Link/Activity Application Requirements UniFi Network Version 7.2.94 and higher
Questions & answers
What is the delivery time of UBIQUITI NETWORKS USW-24-POE Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / ?
The article UBIQUITI NETWORKS USW-24-POE Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of UBIQUITI NETWORKS USW-24-POE to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you UBIQUITI NETWORKS USW-24-POE Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / always at the best possible price. We can give you a discount of 2% on UBIQUITI NETWORKS USW-24-POE Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
