UBIQUITI NETWORKS U7-Pro-Outdoor Ubiquiti Wireless AP WIFI7 BE9200 4x4 Outdoor 2,5 GbE UniFi content_copy

The Ubiquiti U7-Pro-Outdoor is an Access Point for outdoor use, developed for use in wireless networks with high requirements for range, stability, and weather resistance. The device supports the WLAN standard 802.11be (WLAN 7) and offers six spatial streams for efficient data transmission. It is designed for use in open-area applications, with a maximum coverage of up to 465 m² (5,000 ft²) under line-of-sight conditions. The integrated directional super antenna ensures targeted signal radiation, and via software, switching to included external omnidirectional antennas is possible to flexibly adjust coverage.

Applications
This Access Point is designed for outdoor use and is suitable for applications such as industrial facilities, outdoor areas of businesses, parks, sports grounds, or other open spaces where a stable WLAN connection under extreme environmental conditions is required. The IP67 protection rating ensures protection against dust and water ingress, even during submersion up to 1 m depth. The included cable gland door enables a watertight connection for network cables. The wind survival capability of 74.6 N at 200 km/h (16.8 lbf at 125 mph) makes the device suitable for exposed locations.

Functions and Equipment in Detail

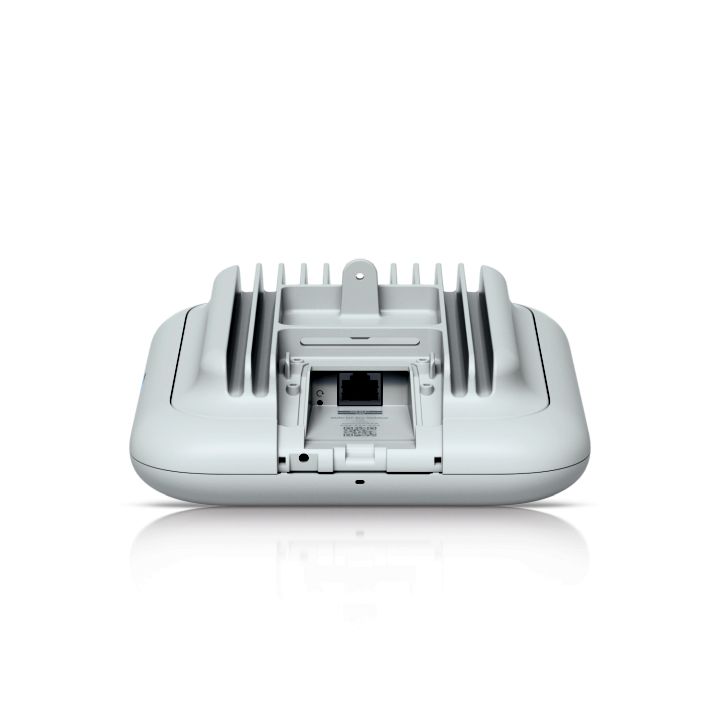

The device features a 2.5 GbE RJ45 port for uplink, enabling high bandwidth for data traffic between the Access Point and the network switch. Power is supplied via PoE+, with supported voltage ranging from 42.5 to 57 V DC. Maximum power consumption is 21 W. The transmit power is 23 dBm in the 2.4 GHz band and 29 dBm in the 5 GHz band; no transmit power is specified for the 6 GHz band. The antenna gain values are 8 dBi (internal directional) and 6 dBi (external omnidirectional) in the 2.4 GHz band, and 11 dBi (internal directional) and 8 dBi (external omnidirectional) in the 5 GHz band. The antenna beamwidth is 90° in both the 2.4 GHz and 5 GHz bands. The device supports MU-MIMO with 2x2 in the 2.4 GHz band and 4x4 in the 5 GHz band.

Technology Explained Simply
The U7-Pro-Outdoor uses the latest WLAN technology (WLAN 7) with support for the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. Maximum data rates are 688 Mbit/s in the 2.4 GHz band and 8.6 Gbit/s in the 5 GHz band; no maximum data rate is specified for the 6 GHz band. The MIMO technology (Multiple Input Multiple Output) enables simultaneous transmission of multiple data streams over different antennas, increasing overall throughput. Software control allows switching between internal directional antennas and external omnidirectional antennas to adjust coverage according to requirements. LED indicators (white/blue for power, blue for mesh signal) display status, and a factory reset button allows resetting to default settings.

Compatibility and Accessories
The device is intended for use with UniFi Network Software version 9.0.108 and higher. It supports WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) for network security. The VLAN function (802.1Q) and advanced QoS functions such as per-user rate limiting and guest traffic isolation are integrated. Available accessories include Ubiquiti Ethernet Surge Protection Outdoor ETH-SP-G2 and various UniFi Etherlighting patch cables (lengths 0.15 m, 0.3 m, 1 m, 2 m, 5 m) for connecting to other network components.

Mounting and Installation

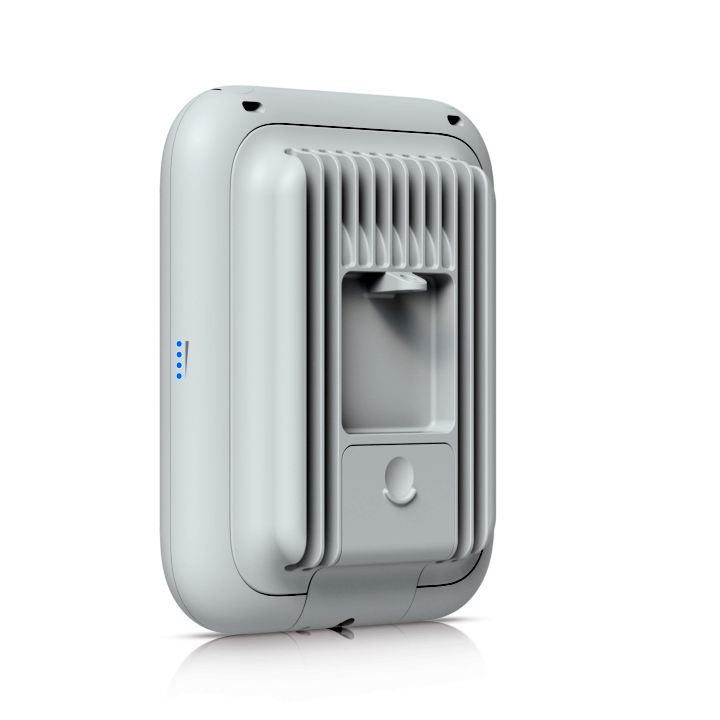

Mounting is done on wall, ceiling, or pole using the included articulated bracket. The pole mount is designed for pipes with an outer diameter of 25 to 63.5 mm (1 to 2.5 inches). The housing is made of UV-stabilized polycarbonate and aluminum alloy, ensuring high mechanical stability and resistance to UV radiation. Operating temperature ranges from -30 °C to 60 °C, and operating humidity is 5 to 95 %, non-condensing.

Advantages in Operation
The U7-Pro-Outdoor enables connection of over 300 devices simultaneously, making it suitable for larger applications. The PoE+ power supply reduces the need for additional power sources, and the 2.5 GbE uplink ensures high bandwidth. The IP67 protection rating and wind survival capability make the device robust against environmental influences. Software control allows flexible adjustment of antenna configuration to optimally shape coverage.

General
Degree of protection	IP67
Operation temperature	-30 to 60 °C
Humidity during operation	5 to 95 %
Maximum power consumption	21 W
Supported voltage range	42,5–57 V
Network interface	1x 2.5 GbE RJ45
Current supply	PoE+
WLAN standard	802.11a/b/g/n/ac/ax/be
Max. data rate 2.4 GHz	688 Mbit/s
Max. data rate 5 GHz	8600 Mbit/s
Antenna gain 2.4 GHz (internal)	8 dBi
Antenna gain 5 GHz (internal)	11 dBi
Antenna gain 2.4 GHz (external)	6 dBi
Antenna gain 5 GHz (external)	8 dBi
Antenna beamwidth 2.4 GHz	90 °
Antenna beamwidth 5 GHz	90 °
MIMO 2.4 GHz	2x2
MIMO 5 GHz	4x4
Transmit power 2.4 GHz	23 dBm
Transmit power 5 GHz	29 dBm
Housing material	UV-stabilised polycarbonate, aluminium alloy
Mounting	Wall, ceiling, mast
Diameter of mast mounting	25–63,5 mm
Wind survival capability	74,6 N at 200 km/h
Supported security algorithms	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
VLAN	802.1Q
Simultaneous clients	300+

---
