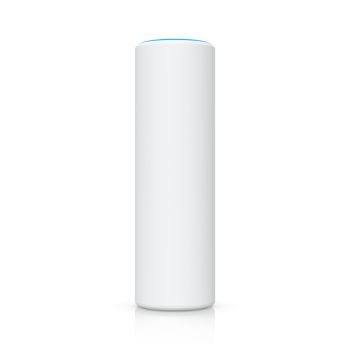

UBIQUITI NETWORKS U7-MESH
Ubiquiti Access-Point UniFi 802.11be WiFi 7 (ohne PoE-Adapter) Ohne/without PoE Adapter content_copy

The Ubiquiti U7-MESH is a compact WiFi 7 Access Point for indoor and outdoor use. It features an integrated long-range antenna system and supports the latest WLAN technology 802.11be (WiFi 7), ensuring high data rates and stable connections for more than 200 clients. The device is designed for use in modern, high-performance wireless networks and offers a maximum coverage area of 140 m². Power supply is via PoE, with the PoE adapter included in the delivery scope. The operating temperature ranges from –30 to 60 °C, enabling use in various environments.

Applications

The U7-MESH is suitable for use in offices, hotels, schools, public institutions, and industrial applications where reliable and fast WLAN connectivity is required. Due to the IPX6 weather protection class when using the outdoor mounting bracket, the device is also suitable for outdoor use, for example on terraces, in parks, or on exterior walls. The combination of dual-band support (2.4 GHz and 5 GHz) and Band Steering ensures that clients automatically select the optimal frequency band to minimize latency and interference.

Functions and Equipment in Detail

The device supports MU-MIMO in both frequency bands (2×2 for 2.4 GHz and 5 GHz), enabling simultaneous communication with multiple clients and increasing network efficiency. The maximum data rate is 4.3 Gbit/s in the 5-GHz band with a channel bandwidth of 240 MHz, and 688 Mbit/s in the 2.4-GHz band with 40 MHz. The antenna gains are 6 dBi (omni) and 10 dBi (directional) in the 5-GHz band, and 3 dBi in the 2.4-GHz band. The maximum transmit power is 24 dBm in the 5-GHz band and 23 dBm in the 2.4-GHz band. The device supports up to 8 BSSIDs per wireless device, enabling management of multiple networks.

Technology Explained Simply

The technology WiFi 7 (802.11be) offers higher data rates, lower latency, and improved network capacity compared to previous standards. The Wireless Mesh function enables the connection of multiple access points into a wireless network, achieving comprehensive coverage. Band Steering automatically directs clients to the less congested frequency band, while Fast Roaming (802.11r) and BSS Transition (802.11v) ensure seamless switching between access points. Support for Passpoint 2.0 and Captive Portal enables easy guest authentication, including payment and voucher-based authentication. Client Isolation and Guest Network Isolation enhance network security.

Compatibility and Accessories

The U7-MESH is part of the UniFi ecosystem and can be combined with other Ubiquiti products such as the UI Care service or Ethernet Surge Protection devices (UACC-ETH-SP-Pro, ETH-SP-G2) to improve network security and maintenance. The devices are NDAA-compliant for use in critical infrastructure and meet the certifications CE, FCC, and IC.

Mounting and Installation

The device can be mounted on walls, poles, or table stands. The housing is made of UV-stabilized polycarbonate, ensuring high mechanical stability and resistance to UV radiation. The mounting components are also made of UV-stabilized polycarbonate. Installation is via a 2.5-GbE RJ45 port, which serves as both uplink and power supply (PoE). The voltage range is 42.5–57 V DC. The maximum power consumption is 13 W.

Operational Advantages

The U7-MESH offers high network performance with low latency and high capacity. Integrated functions such as RRM (802.11k), Dynamic RADIUS VLAN, and RADIUS over TLS (RadSec) enable centralized network control and security. The app requirements for UniFi control are iOS 10.32.1 and Android 10.35.1. The humidity tolerance is 5–95 % (non-condensing). The system LEDs illuminate in white/blue and indicate the operating status.

General
WLAN standard	802.11be (WiFi 7)
Spatial data streams	4
Cover area	140 m²
Max. number of clients	200+
Uplink	2.5 GbE
Mounting	wall, pole or table stand
Weather protection	IPX6 (with outdoor mounting)
Current supply	PoE
MIMO 5 GHz	2×2 (DL/UL MU-MIMO)
MIMO 2.4 GHz	2×2 (DL/UL MU-MIMO)
Max. data rate 5 GHz	4,3 Gbit/s
Max. data rate 2.4 GHz	688 Mbit/s
Antenna gain 5 GHz	6 dBi (omni), 10 dBi (directional)
Antenna gain 2.4 GHz	3 dBi
Max. transmit power 5 GHz	24 dBm
Max. transmit power 2.4 GHz	23 dBm
Max. BSSIDs	8 per radio
Captive portal	Yes (Branding Landing Page)
Max. power consumption	13 W
Voltage range	42,5–57 V DC
Network port	1× 2.5-GbE RJ45
Wireless mesh
Band steering
802.11v BSS transition
802.11r Fast Roaming
802.11k RRM
Extended wireless management
Passpoint 2.0
Voucher authentication
Payment-based authentication
External portals
Password authentication
Guest network isolation
PPSK
WLAN limitation
Client isolation
WLAN schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS VLAN
PoE adapter included

---
