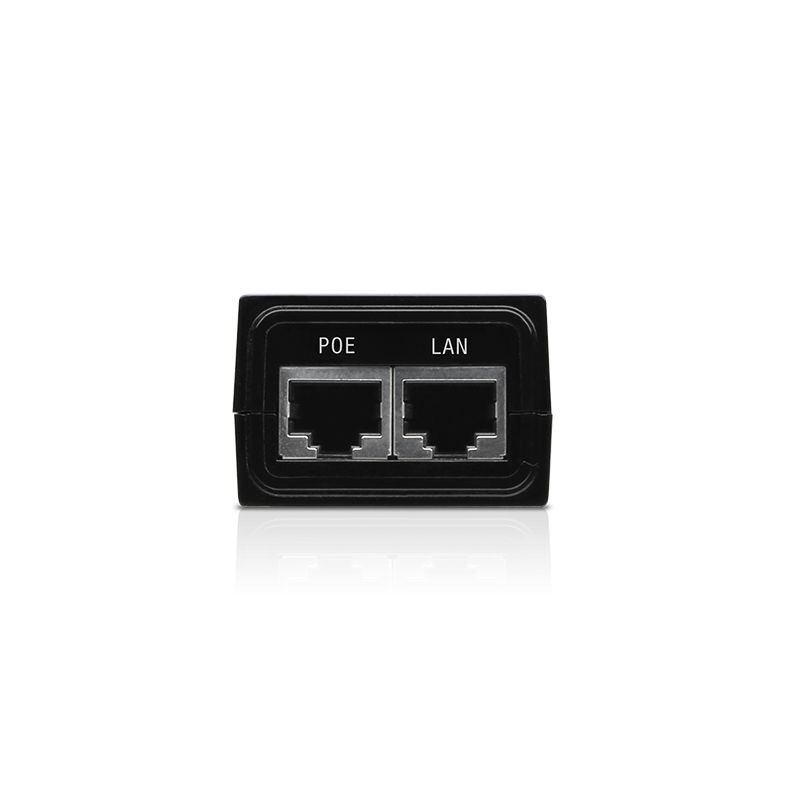

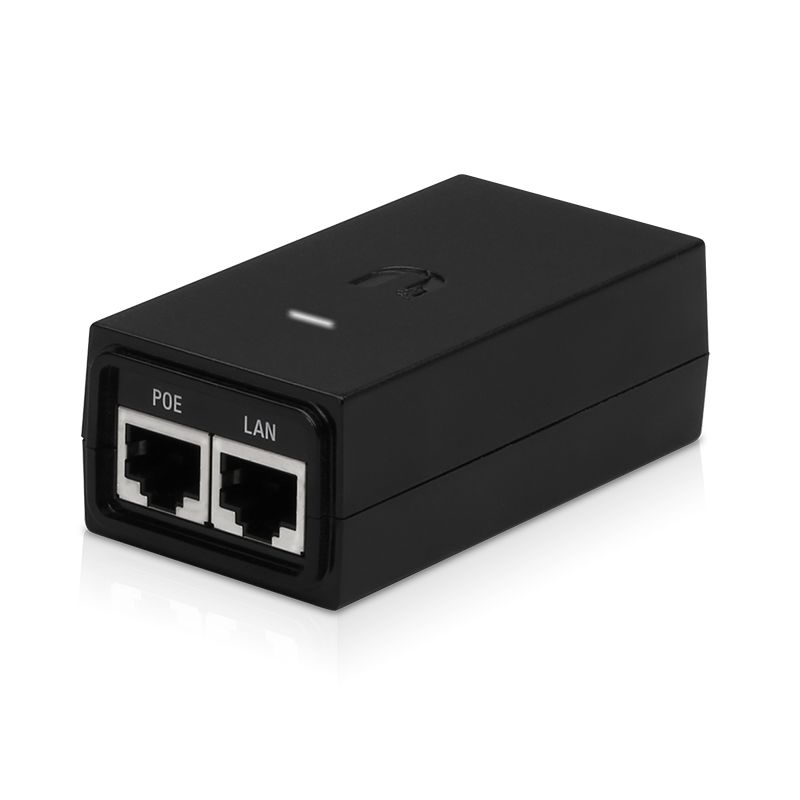

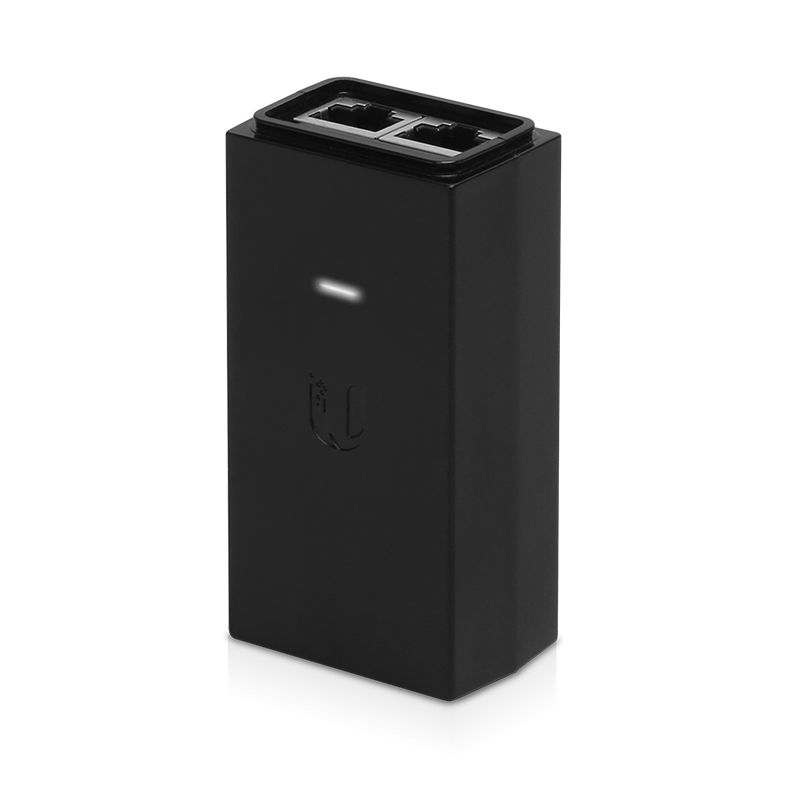

UBIQUITI NETWORKS POE-24-12W(EU) POE injector, 24VDC, 12W
|
5,62 EUR |
|
|
( 6,69 EUR incl. VAT ) ≈ £4.78 | ≈ $6.31 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 382598 |
|---|---|
| Mfg Part No: | POE-24-12W(EU) |
| UPC/EAN: | 810354022982 |
| Weight: | 0.25 kg |
Further Access Points from UBIQUITI NETWORKSFurther products in category Access Points
All products of UBIQUITI NETWORKS
Product information for UBIQUITI NETWORKS POE-24-12W(EU):
Ubiquiti POE Injector, 24VDC, 12W
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
87 x 84 x 29.2 mm
Weight
92 g (3.25 g) Output Volage 24VDC @ 0.5A Remote Reset Capability
YES
Reset Button
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current <30A @ 120VAC peak, <60A @ 230VAC peak
Efficiency
75 +% Output Ripple 1% Max. Switching Frequency
50 kHz
Line Regulation ± 1% Load regulation
± 3%
2 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
Ubiquiti Networks (TM) offers Power over Ethernet (PoE) adapter to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices *, Including:
• airFiber®
• airMAX®
• airVision®
• UniFi®
• mFi®
Specifications:
Element
Specification
Dimensions
87 x 84 x 29.2 mm
Weight
92 g (3.25 g) Output Volage 24VDC @ 0.5A Remote Reset Capability
YES
Reset Button
YES
Input Voltage
@ 90-260VAC 47-63Hz Input Current 0.3A @ 120VAC, 0.2A @ 240VAC Inrush Current <30A @ 120VAC peak, <60A @ 230VAC peak
Efficiency
75 +% Output Ripple 1% Max. Switching Frequency
50 kHz
Line Regulation ± 1% Load regulation
± 3%
2 Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40 ° C
Storage Temperature
-30 To 70 ° C
Operating Humidity
35 to 95% non-condensing AC Connector IEC 320-C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8 / 20us) Power Peak Pulse Current 36A (10 / 1000µS) Data Shunt Capacitance <5 pf Data
Response Time
<1 ns
Compliance
IEC 60950-1: 2005 + A1
UL60950 - 1
EN55022: 2010, EN55024: 2010
FCC Class B * Check Product Specifications to verify PoE compatibility.
