UBIQUITI NETWORKS AM-2G16-90
Sector Antenna MIMO AirMax 2.4GHz 16dBi, 90 °, rocket kit
|
100,38 EUR |
|
|
( 119,45 EUR incl. VAT ) ≈ £85.32 | ≈ $112.73 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 250489 |
|---|---|
| Mfg Part No: | AM-2G16-90 |
| UPC/EAN: | 810354020872 |
| Weight: | 5.225 kg |
Product information for UBIQUITI NETWORKS AM-2G16-90:
Sector Coverage

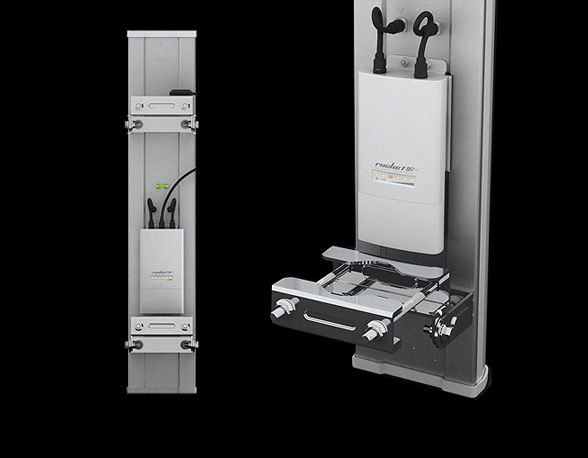

The AirMax Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna That was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
Pair the RocketM's radio with the Airmax Sector Antenna's reach to create a powerful base station. This versatile combination gives network architects unparalleled flexibility and convenience.
Specifications:
Element
Specification
Dimensions
700 x 145 x 79 mm
Weight
3.9 kg (Mount Included)
Frequency
2.3 - 2.7 GHz
Gain
16.0 - 17.0 dBi
HPOL Beamwidth
91 ° (6 dB)
VPOL Beamwidth
90 ° (6 dB)
Elevation Beamwidth
9 °
Electrical downtilt
4 °
Max. VSWR
1.5: 1
Wind Survivability
125 mph
Wind Loading
30 lbf @ 125 mph
Polarization
Dual Linear
Cross-Pol Isolation
28 dB min.
ETSI Specification
EN 302 326 DN2
Mounting
Universal Pole Mount, RocketM Bracket, Weatherproof and RF Jumpers Included
Package Contents: 1x Antenna
1x Protective Shroud
2x U-Brackets
2x Pole brackets
2x Pole Clamps
4x Carriage Bolts (M8x135)
4x Serrated Flange Bolts (M8x20)
8x Serrated Flange Nuts (M8)
2x RF Cables
1x Quick Start Guide
Questions & answers
What is the delivery time of UBIQUITI NETWORKS AM-2G16-90 Sector Antenna MIMO AirMax 2.4GHz 16dBi, 90 °, rocket kit?
The article UBIQUITI NETWORKS AM-2G16-90 Sector Antenna MIMO AirMax 2.4GHz 16dBi, 90 °, rocket kit is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of UBIQUITI NETWORKS AM-2G16-90 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you UBIQUITI NETWORKS AM-2G16-90 Sector Antenna MIMO AirMax 2.4GHz 16dBi, 90 °, rocket kit always at the best possible price. We can give you a discount of 2% on UBIQUITI NETWORKS AM-2G16-90 Sector Antenna MIMO AirMax 2.4GHz 16dBi, 90 °, rocket kit if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
