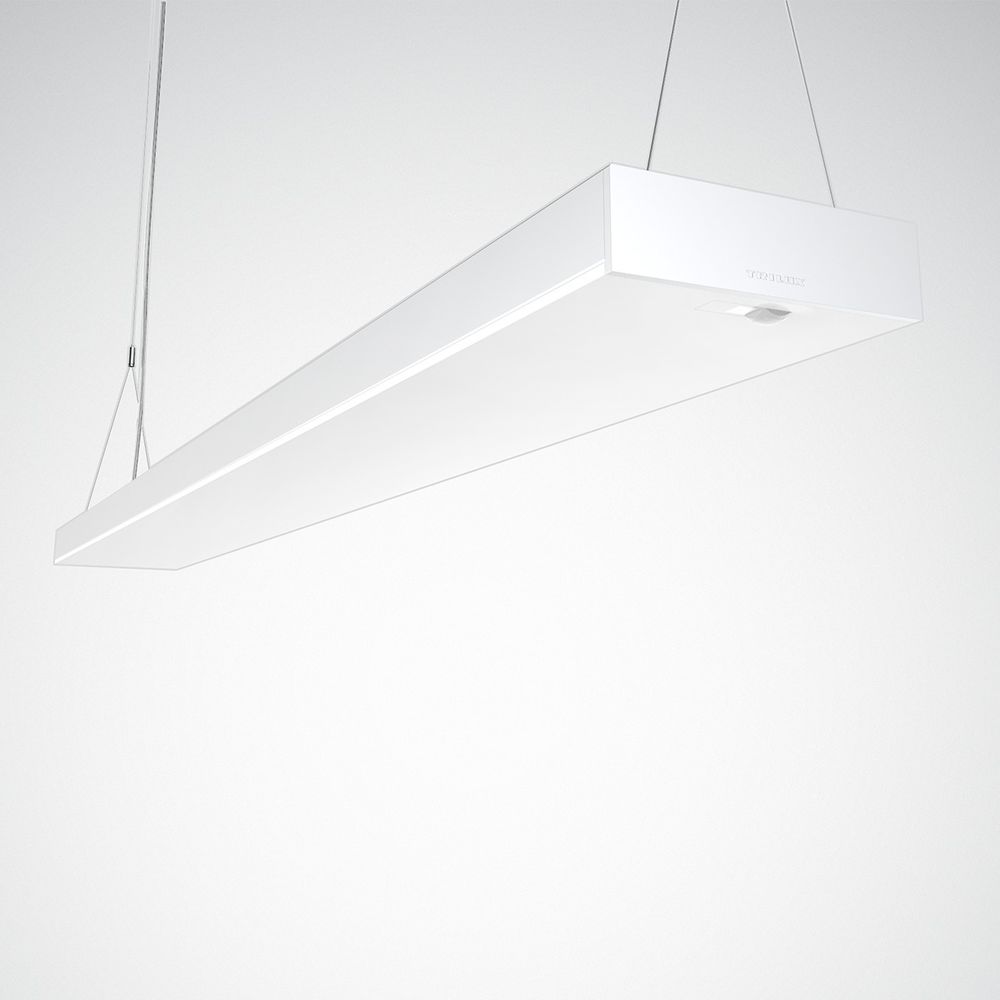

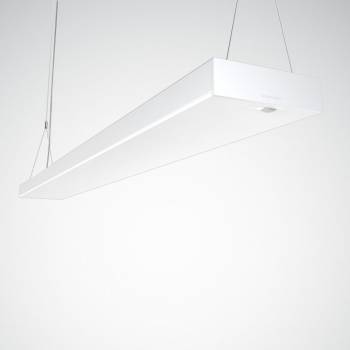

Rectangular LED pendant light, direct-indirect beam, with full-surface, rimless PMMA cover. With integrated LiveLink sensor for connection to a LiveLink control unit for daylight-dependent control and presence detection. LiveLink sensor Tridonic MSensor G3 PIR 5DPI for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the run-on time to the use of the room. Connection and electrical supply via the DALI interface of the LiveLink control unit. Number of occupied DALI participants: 5. Detection range: Ø 4.5 m, installation height 2.5 m - 5 m. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. For single or light strip applications using accessories to be ordered separately. Suitable for through-wiring. With an internal microprismatic cover panel and a smooth, opal PMMA cover on the room side. With symmetrical limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1408 mm x 160 mm, luminaire height 47 mm. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.1 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type:
Opendo H2-L PW19 64-840 ETDD +LLWS 01
Questions & answers
What is the delivery time of TRILUX Opendo H2-L PW19 64-840 ETDD +LLWS 01 continuous row light 7766251?
The article TRILUX Opendo H2-L PW19 64-840 ETDD +LLWS 01 continuous row light 7766251 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 7766251 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TRILUX Opendo H2-L PW19 64-840 ETDD +LLWS 01 continuous row light 7766251 always at the best possible price. We can give you a discount of 2% on
TRILUX Opendo H2-L PW19 64-840 ETDD +LLWS 01 continuous row light 7766251 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of TRILUX Opendo H2-L PW19 64-840 ETDD +LLWS 01 continuous row light 7766251 we can offer you a price of 571,53 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
