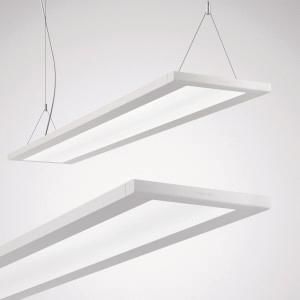

Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751

This image may differ from the desired article.

452,13 EUR

( 538,03 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

1350255

Mfg Part No:

7017751

UPC/EAN:

4018242390106

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
4	431,78 EUR
8	411,44 EUR
12	391,09 EUR
16	370,75 EUR

All products of Trilux

Product information for Trilux 7017751:

Versatile luminaire module for suspended and surface-mounted luminaires. In combination with accessories that must be ordered separately, the modules are completed to form individual luminaires or light strip applications with a continuous light emission surface for surface-mounted or suspended installation. In combination with the accessories that must be ordered separately for the desired application, the module is suitable for suspended and surface-mounted installation. Suspended light strip application across corners is possible using a node that must be ordered separately. With highly efficient CDP microprismatics. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L90(tq 25 °C) = 50,000 h. Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1490 mm x 240 mm, luminaire height 20 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.1 kg. The electrical connection is made by plugging in the connection headpiece. The electrical connection of the modules is automatic. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using the touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: LuceoS H2-L CDP 6500-840 ETDD 01

Questions & answers

What is the delivery time of Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751?

The article Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Trilux 7017751 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751 always at the best possible price. We can give you a discount of 2% on Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751 we can offer you a price of 431,78 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Trilux LuceoS H2-L CDP 6500-840 ETDD 01 (7017751) Trilux D/H2-L CDP 6500-840 ETDD 01 LuceoS hanging light 6600lm 7017751	452,13 EUR
