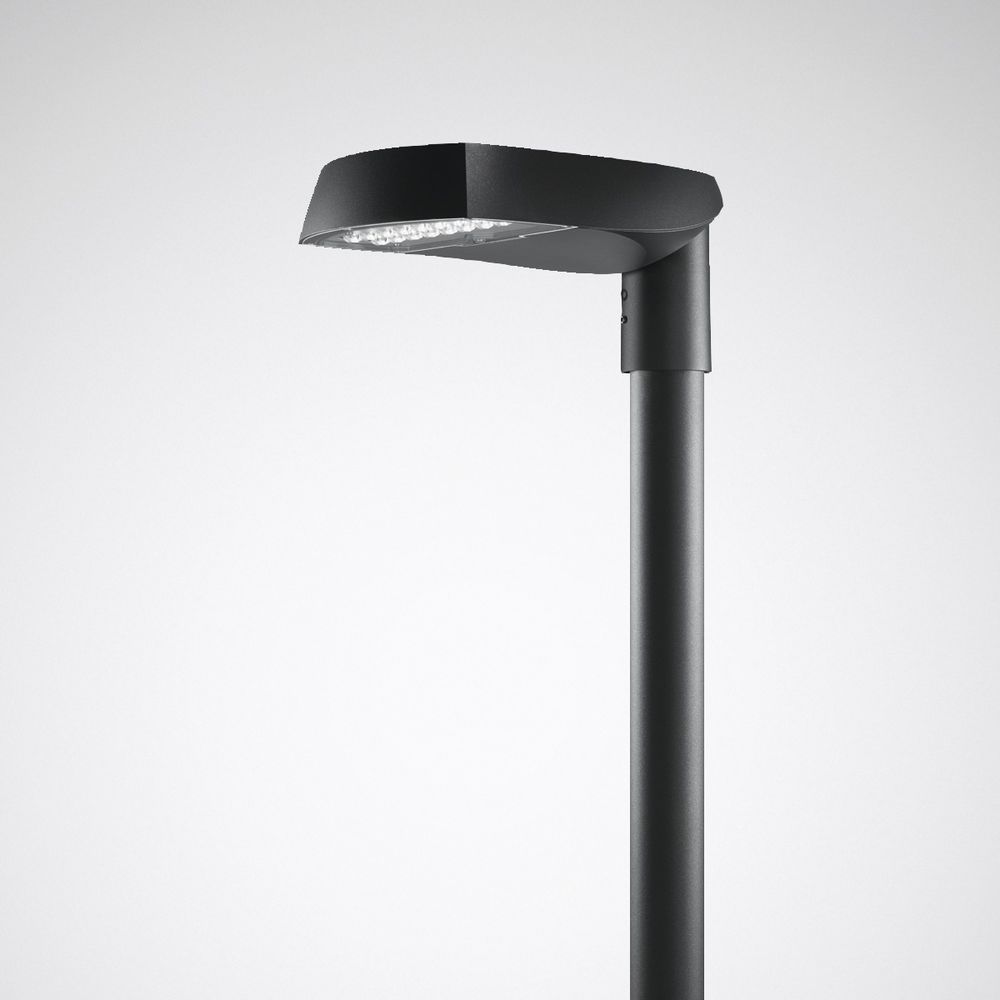

Mast-top or side-mounted luminaire with flat cover plate. With intelligent label for quickly calling up luminaire information using a QR code. With power reduction via control phase. Switching off a control phase sets the luminaire's luminous flux to 50%. Top-mounted and side-mounted luminaire for mast top Ø 76 mm. Tilt angle for top-mounted mounting 0°, 10°, for side-mounted mounting -10°, 0° adjustable. Also suitable for use with masts Ø 42, 48 and 60 mm using reducers that must be ordered separately. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. For lighting streets according to P lighting classes. With asymmetrical wide beam light distribution. With PMMA cover plate, clear. The subsequent installation of a rear / side shield is possible as an accessory to be ordered separately. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color are fixed, with constant luminous flux at the end of the service life (CLO). Rated luminous flux 1800 lm, rated power 15 W, maximum luminaire luminous efficacy 120 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum. Surface anthracite coated (DB 703). Highly weather-resistant coating. Coating suitable for marine weather on request. With sulfur-free seals. The modular luminaire consists of the base module and the lighting module. The mechanical and electrical connection of the modules is done without tools. Protection class (EN 61140): II, protection type (DIN EN 60529):
IP66, protection type lamp compartment:
IP66. Shock resistance level according to IEC 62262: IK09. Protection type lamp compartment:
IP66. Mast available on request. Wind attack area fw 0.040 m2. Weight: 6.0 kg. With electronic control gear, switchable The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date subject to reasonable changes.that serve progress are available.
Type:
Cuvia 40-AB2L-LR/1800-740 2G1S ET
Questions & answers
What is the delivery time of Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840?
The article Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6598840 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840 always at the best possible price. We can give you a discount of 2% on
Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840 we can offer you a price of 605,65 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux Cuvia 40-AB2L-LR / 1800-740 2G1S ET, Neck u.Aufsatzleuchte 6598840 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
