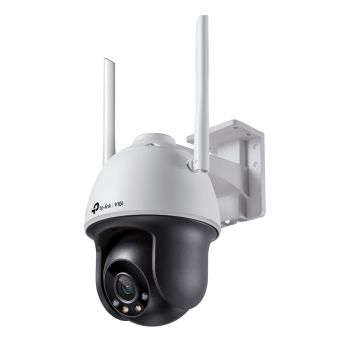

TP-Link IPCam VIGI C540-W(4mm) 4MP Full Color content_copy

Flexibly cover every corner with VIGI's pan-tilt camera. Customized patrol routes and automatic tracking provide smart options to monitor key areas and improve security on your property. Connect the camera with an RJ45 cable, then your power and data transfer are taken care of. IP66 hardware ensures stable performance in outdoor scenarios.

Highlights

• VIGI Outdoor Full-Color Pan Tilt Network Camera
• 4 MP High Definition - more than enough pixels to record even the smallest details
• 24-hour color recordings, even in pitch-dark conditions, thanks to the highly sensitive sensor and integrated headlight LEDs
• Pan and Tilt: Customized motion and automatic tracking
• Waterproof: IP66 for reliable outdoor performance
• Smart Detection (Human Detection, Motion Detection, Area Intrusion, Line Crossing, Video Tampering): Get alerts and check feeds when someone crosses a boundary, one of Enters your designated area or blocks the camera
• H.265+: Without additional bandwidth, your cameras transmit compressed, crystal-clear video to save storage space, reduce network load and reduce monitoring costs without compromising image quality
• PoE/12V DC: Two power supply options not only give you more convenience, but also make your wiring remarkably easy
• VIGI app: Manage your security from the palm of your hand with the VIGI app

Product type

• IP camera
• ear category (ElektroG): relevant , Category 5: Small devices < 50 cm (all sides), small devices B2C

Specifications

• Protection class: IP66 - Dustproof, protection against strong water jets
• Housing material: Plastic
• Mounting type: Screws
• Swivel/tilt (device contains joints)
• Area of application: Outdoor
• Number of axes: 2
• Mounting: wall

camera

• Zoom
• Frame rate: 30 fps
• Viewing angle: 94.2 °
• Video resolution width: 2560 px
• Video resolution height: 1440 px
• Night vision
• Fixed focal length: 4 mm
• Camera resolution: 4 MP
• Chip -Type: CMOS
• Aperture max: f/1.6
• Sensor size: 1/3\dlash> Memory
• microSD card reader: 1
• Memory expandable by: 256 GB > Connections
• RJ45: 1
• PoE-capable Ethernet interfaces

Audio

• Microphone: Integrated microphone
• Audio transmission

Sensors

• Motion detectors

Functions

• Operating mode: App
• Video compression: H.264, H. 265/HEVC

Power supply

• PoE

Data transmission

• Ethernet standard: 10/100 MBit/s
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4

Basic properties

• Color : White, Black
• Height: 172 mm
• Length/Depth: 198 mm
• Width: 120 mm

Scope of delivery

• VIGI C540W network camera
• Quick start guide
• Waterproof cable fasteners
• Power supply
• Mounting accessories

Audio
Built-in speaker(s)
Built-in microphone
Camera
Lens viewing angle, horizontal	79°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	93°
Tilt angle range	0 - 120°
Tilt speed	44 °/sec
Pan range	0 - 350°
Pan speed	44 °/sec
Camera pan control
Camera tilt control
Design
Form factor	Turret
Mounting type	Ceiling/wall
Product colour	Black, White
Housing material	Plastic
International Protection (IP) code	IP66
Features
Basic event	Motion Detection, Camera Tampering Detection, Exception
Image sensor
Optical sensor size	25.4 / 3 mm (1 / 3")
Sensor type	CMOS
Progressive scan
Lens system
Number of lenses	1
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Lens diameter	4 mm
Identify distance	8 m
Zoom capability
Management features
Behavior analysis	Intrusion detection, Line crossing detection
Reset button
Network
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of simultaneous live view channels	3 channels
Ethernet LAN
Wi-Fi
Bluetooth
Live view
Night vision
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm
Night vision
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Packaging content
Number of cameras	1
Mounting kit
Packaging data
Package width	163 mm
Package depth	243 mm
Package height	243 mm
Package weight	1.21 kg
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Certification	RCM, BSMI, VCCI, NCC, JRF, KC
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power source type	DC
DC output voltage	12
Security
Security algorithms	WPA, WPA2-PSK
Intelligent Video Surveillance (IVS) system features	Human detection
Password protection
IP address filtering
HTTPS encryption
Mirror
Digest authentication
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Built-in HDD
Card reader integrated
Sustainability
Compliance certificates	CE, RoHS
Video
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate	256 Kbps - 4 Mbps
Video streaming
Noise reduction
Privacy masking
Digital Wide Dynamic Range (DWDR)
Weight & dimensions
Width	120 mm
Depth	172 mm
Height	198 mm

---
