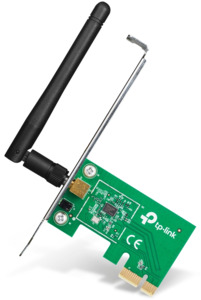

TP-Link TL-WN781ND(EU) 150Mbps WLAN N PCI Express Adapter
|
10,00 EUR |
|
|
( 11,90 EUR incl. VAT ) ≈ £8.37 | ≈ $10.99 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 801767 |
| Mfg Part No: | TL-WN781ND(EU) |
| UPC/EAN: | 6935364050511 |
| Weight: | 0.172 kg |
| Type: | WRLS |
Product information for TP-Link TL-WN781ND(EU):
Applications
The adapter is designed for use in office environments, home networks, as well as in server and desktop systems where a wireless network connection is required. It is particularly suitable for applications requiring a stable and fast connection, such as downloads, internet telephony or video streaming. Support for Windows 7, 8, 8.1, 10 as well as Linux operating systems extends the range of applications to various platforms.
Features and equipment in detail
A central feature of the TL-WN781ND is the external, detachable antenna with a spherical radiation pattern and a maximum antenna gain of 2 dBi. This design enables improved signal coverage and flexible antenna alignment to achieve optimal reception conditions even in challenging environments. The antenna can be replaced with other indoor antennas if necessary, allowing adaptation to specific requirements. The security functions include 64-bit and 128-bit WEP as well as WPA-PSK and WPA2-PSK, protecting the WLAN connection against unauthorized access.
Technology explained simply
The card uses the Atheros chipset and operates in single-band mode (2.4 GHz). Modulation techniques include 16-QAM, 64-QAM, CCK, DBPSK, DQPSK and OFDM, enhancing the efficiency and reliability of data transmission. The PCI Express interface offers higher data rates compared to conventional PCI cards, which is particularly beneficial for data-intensive applications. The maximum operating temperature is 40 °C, and the card can be operated at a relative humidity of 10 to 90 %, enabling use in typical indoor conditions.
Compatibility and accessories
The TL-WN781ND is compatible with a variety of Windows operating systems (including Windows 7, 8, 8.1, 10 in various versions) as well as Linux systems. The external antenna can be replaced with other indoor antennas if necessary, allowing adaptation to specific requirements. The card is designed for use in standard PCI-Express slots and thus fits into most modern computer and server systems.
Installation and mounting
Installation is carried out by inserting the card into a free PCI Express slot in the computer. The included resource CD contains the necessary drivers and a utility program that simplifies configuration and management of the WLAN connection. Additionally, a quick installation guide is included, which explains the setup step by step.
Advantages in operation
The card provides a stable WLAN connection with high data rates, suitable for time-critical applications. The external antenna enables extended range and improved signal quality, especially in larger rooms or with obstacles. Support for WPA/WPA2 encryption ensures a secure connection. Compatibility with various operating systems and easy installation via the included utility program increase user-friendliness.
Scope of delivery
The scope of delivery includes the TP-Link TL-WN781ND 150Mbps WLAN N PCI Express adapter, the detachable omnidirectional antenna, a resource CD, and a quick installation guide.
Conformity certificates
The card complies with the standards RoHS, FCC and CE, confirming compliance with environmental and safety standards. The product colour is green, and the dimensions are 120.8 mm (width), 78.5 mm (depth) and 21.5 mm (height). Storage is possible at temperatures from -40 to 70 °C and relative humidity from 5 to 90 %.
| Design | |
| Product colour | Green |
| Antenna design | External |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 2 dBi |
| Chipset | Atheros |
| Operating modes | Infrastructure mode |
| Internal | |
| Antenna | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 150 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Wi-Fi standards | 802.11b, 802.11g |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Resource CD | |
| Quick installation guide | |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 150 g |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Weight & dimensions | |
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 21.5 mm |
